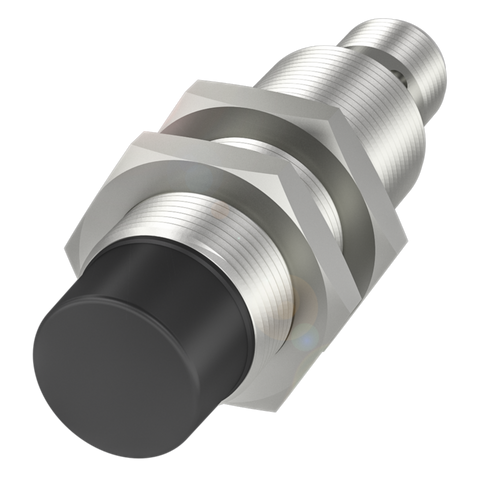

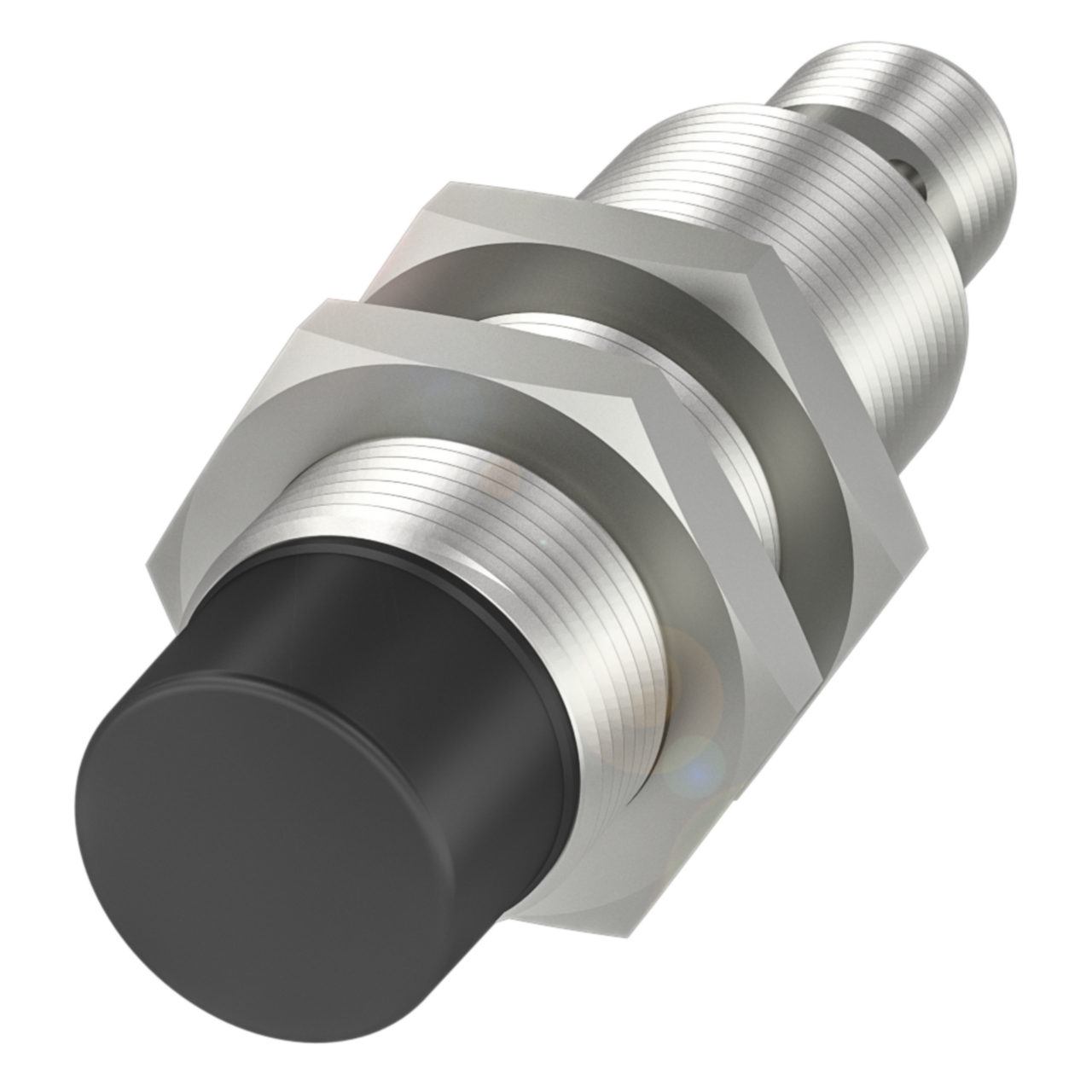

Balluff BES M18MG-PSC16F-S04G Inductive sensor, PNP, NO Part number BES03RM

This M18 inductive sensor from Balluff detects metallic targets at a rated operating distance of 16 mm and provides a PNP normally open output for 10–30 VDC control circuits. The brass, nickel-free coated housing with PBT sensing surface and IP68 rating suit non-flush mounting in exposed industrial environments where washdown or ingress protection is required. Connection is made via an M12x1, 3-pin A-coded male connector, allowing straightforward integration into automation panels and machine wiring using standard field cabling.

Key specifications

• IP rating: IP68
• Operating voltage: 10 - 30 VDC
• Rated voltage: 250 VAC
• Connection: M12x1 / Male / 3-pin / A-coded
• Output: PNP normally open (NO)
• Mounting: Non-flush mounting
