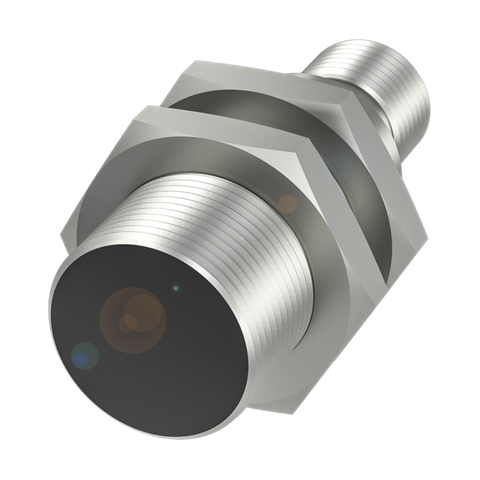

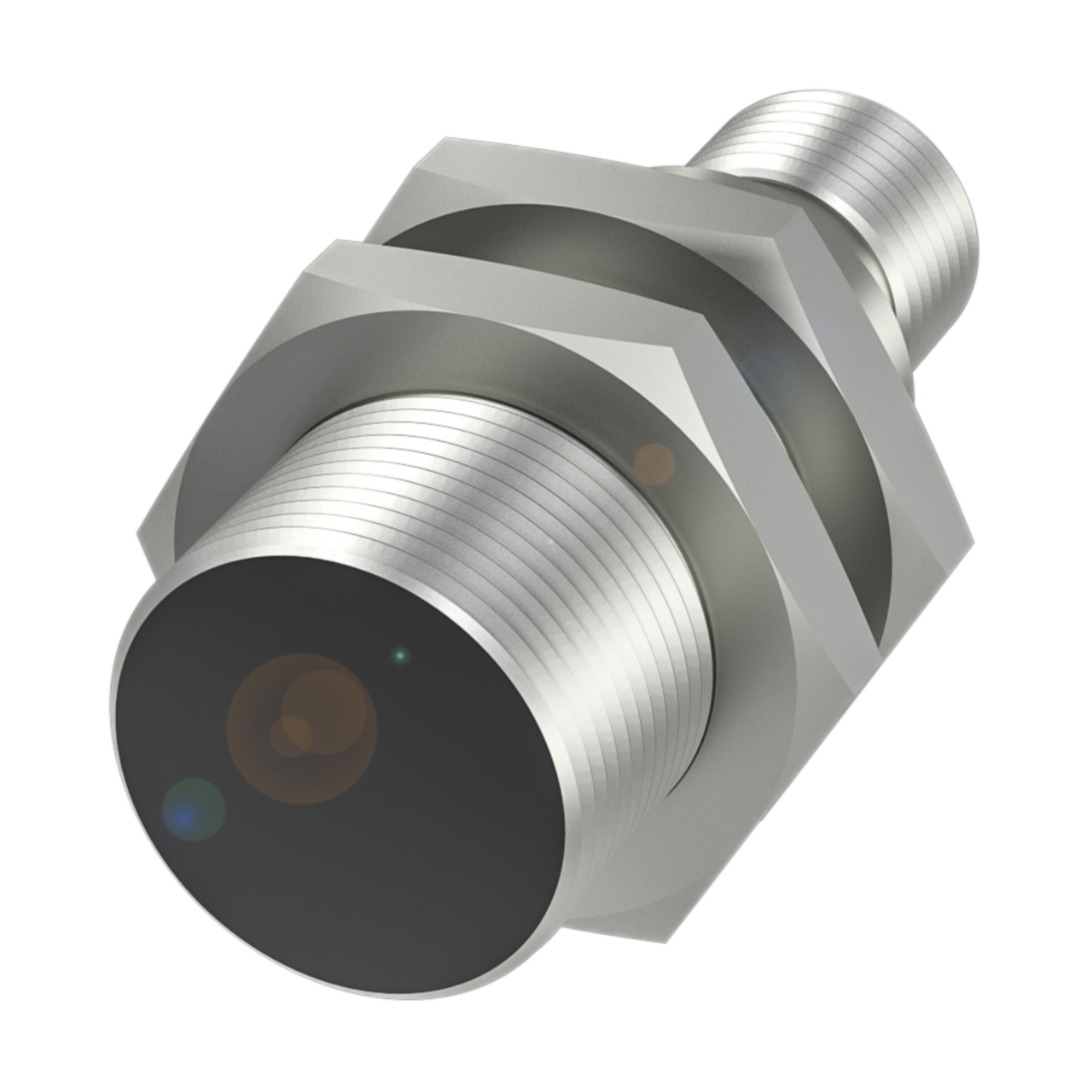

Balluff BES M18ME1-GNX80B-S04G-EEX Inductive sensor, NAMUR Part number BES02ZW

The BES M18ME1-GNX80B-S04G-EEX is an M18 inductive sensor with a NAMUR interface, designed for flush mounting in an M18x1 housing of brass with a nickel-free coating and a PBT sensing face. It operates at 7.7-9 VDC with a rated voltage of 8.2 V and a switching frequency of 400 Hz, connecting via an M12x1, 4-pin, A-coded male connector. Rated IP67 and carrying ATEX, IECEx, FM and cCSAus certifications for hazardous area use, it is suited to intrinsically safe automation applications where NAMUR-compatible signal levels are required. Its compact M18 body allows installation in confined panel or field locations typical of process and industrial plant.

Key specifications

• IP rating: IP67
• Operating voltage: 7.7 - 9 VDC
• Rated voltage: 8.2 V
• Connection: M12x1 / Male / 4-pin / A-coded
• Mounting: Flush mounting
