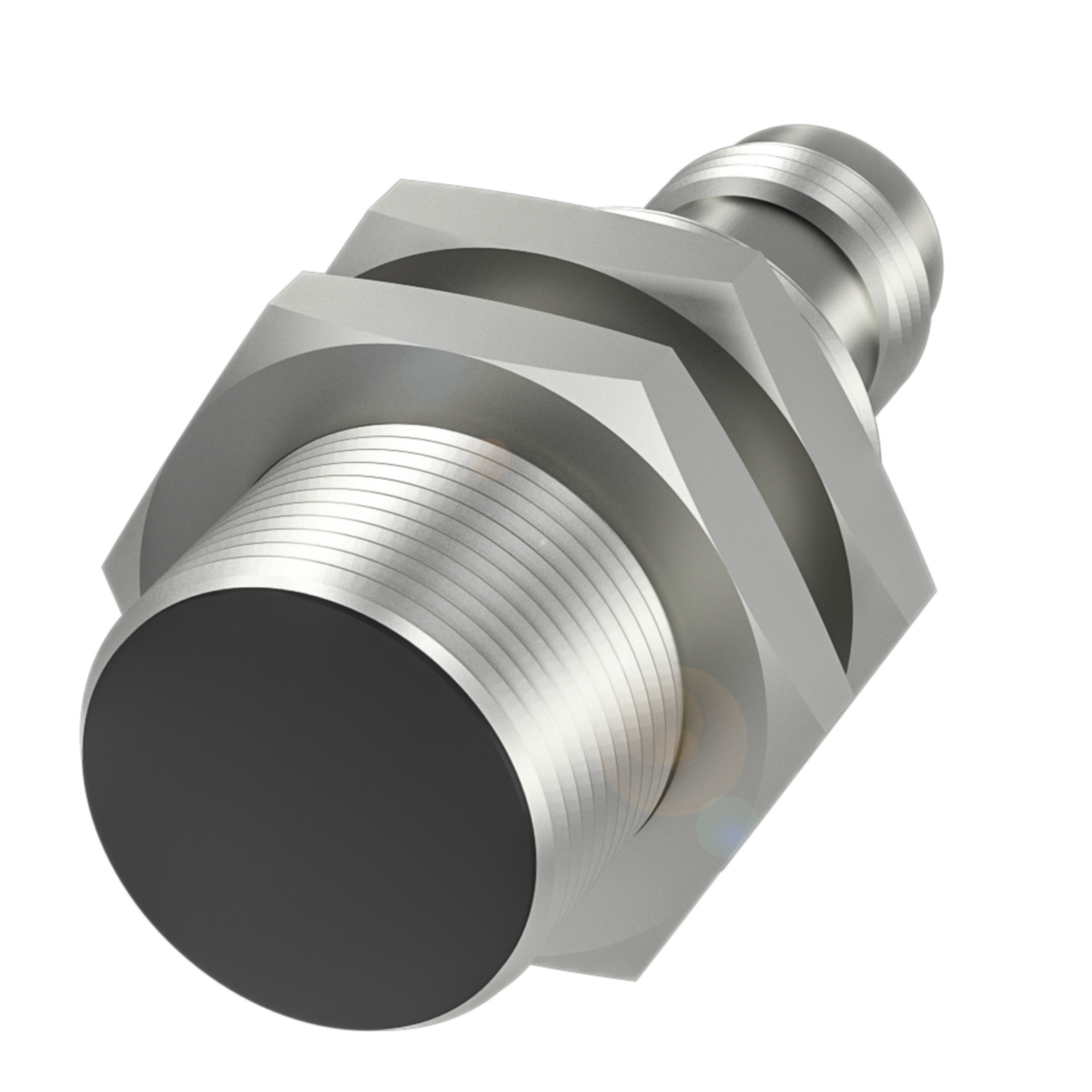

Balluff BES M18ME-PSC50B-S04G Inductive sensor, PNP, NO Part number BES04R0

The BES M18ME-PSC50B-S04G is an M18 inductive proximity sensor with a PNP normally open output, providing a rated operating distance of 5mm. It is housed in a nickel-free coated brass body with a PBT sensing face, rated IP68, and is designed for flush mounting in industrial environments. Connection is made via an M12x1, 3-pin, A-coded male connector, and the sensor operates from a 10-30 VDC supply with a switching frequency of 2000 Hz. It is suitable for automation applications requiring reliable object or position detection in compact panel and machine installations.

Key specifications

• IP rating: IP68
• Operating voltage: 10 - 30 VDC
• Rated voltage: 250 VAC
• Connection: M12x1 / Male / 3-pin / A-coded
• Output: PNP normally open (NO)
• Mounting: Flush mounting
