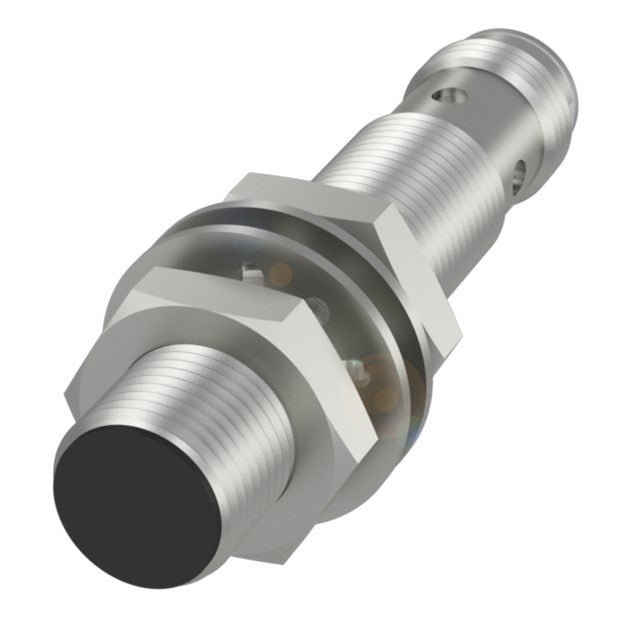

Balluff BES M12MG1-PSC80B-S04G Inductive sensor, PNP, NO Part number BES05KH

The BES M12MG1-PSC80B-S04G is an inductive proximity sensor with a PNP normally open output, housed in a nickel-free coated brass body measuring 12mm in diameter. It detects targets at a rated operating distance of 8mm and is designed for quasi-flush mounting, making it suitable for installations where the sensor face sits close to surrounding metal. Electrical connection is via an M12x1 male 3-pin A-coded connector, and the sensor operates on 10-30 VDC with a switching frequency of 500 Hz. Its IP68 rating and brass housing suit it to industrial automation environments requiring durable, moisture-resistant field sensing components.

Key specifications

• IP rating: IP68, according to BWN Pr 20
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M12x1 / Male / 3-pin / A-coded
• Output: PNP normally open (NO)
• Mounting: Quasi-flush mounting
