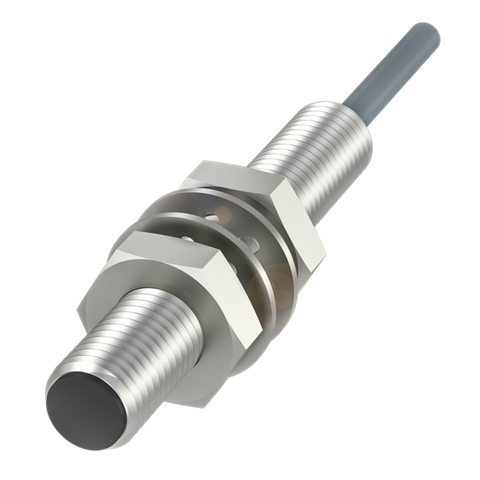

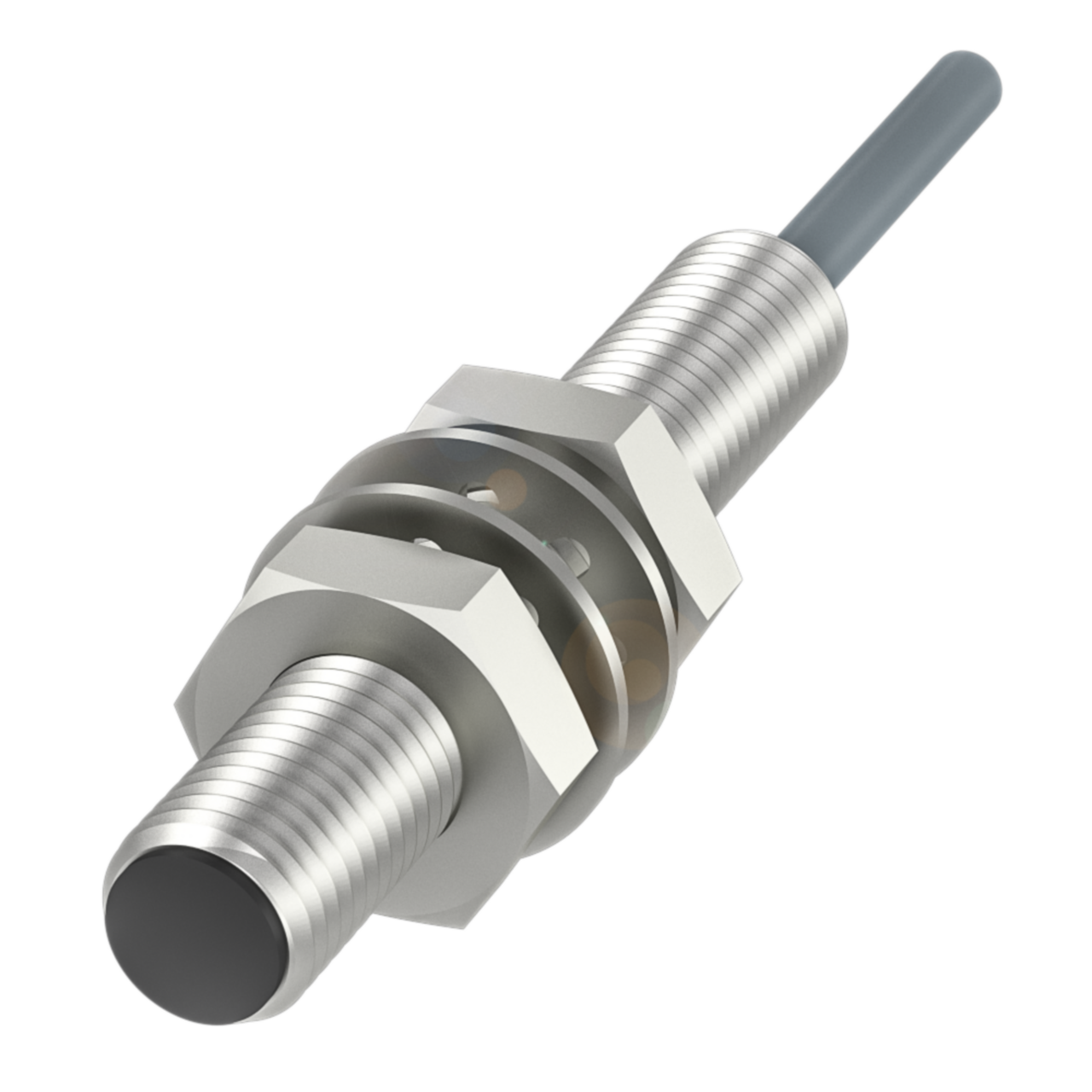

Balluff BES M08MI-PSC15B-BV03 Inductive sensor, PNP, NO Part number BES0038

The BES M08MI-PSC15B-BV03 is an M8x1 inductive proximity sensor with a PNP normally open output, designed for detecting metal targets at a rated operating distance of 1.5mm. Its housing is brass with a nickel-free coating, combined with a PBT sensing face and PVC cable jacket, and it carries an IP68 rating for use in wet or washdown environments. Operating from 10-30 VDC with a switching frequency of 5000 Hz, it suits compact automation and machine-building applications where space is limited and reliable non-contact detection is required.

Key specifications

• IP rating: IP68
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Output: PNP normally open (NO)
