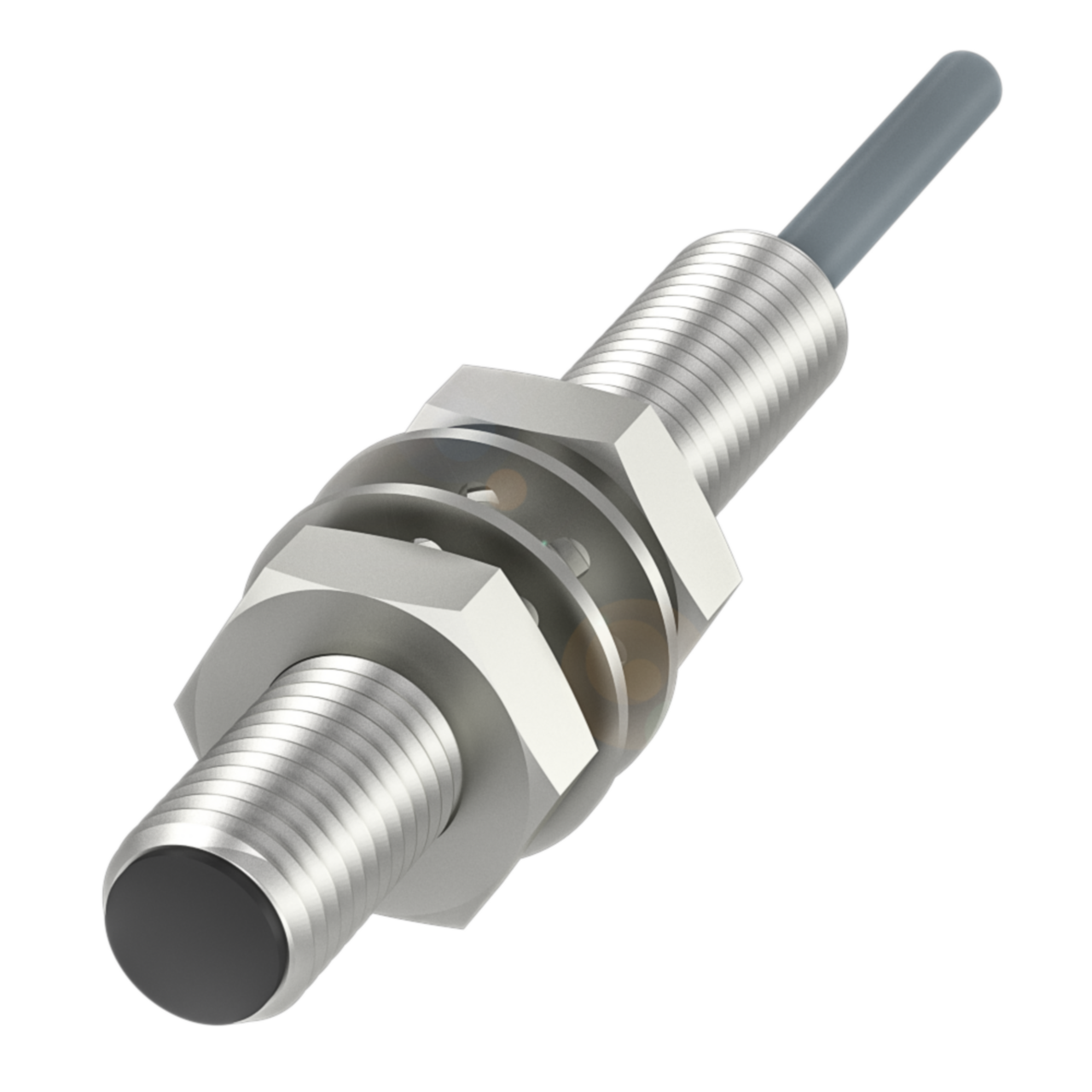

Balluff BES M08MI-POC20B-BV02 Inductive sensor, PNP, NC Part number BES03TH

This is an inductive proximity sensor with an 8mm cylindrical body in nickel-free coated brass, providing a rated operating distance of 2mm and a PNP normally closed switching output. It operates from 10 to 30 VDC, switches at up to 5000 Hz, and is fitted with a 2m PVC cable for direct connection into the control cabinet. With an IP68 rating and PBT sensing face, it is suited to detecting metal targets in industrial machinery and panel-mounted automation equipment where wash-down or wet conditions are present.

Key specifications

• IP rating: IP68
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Output: PNP normally closed (NC)
