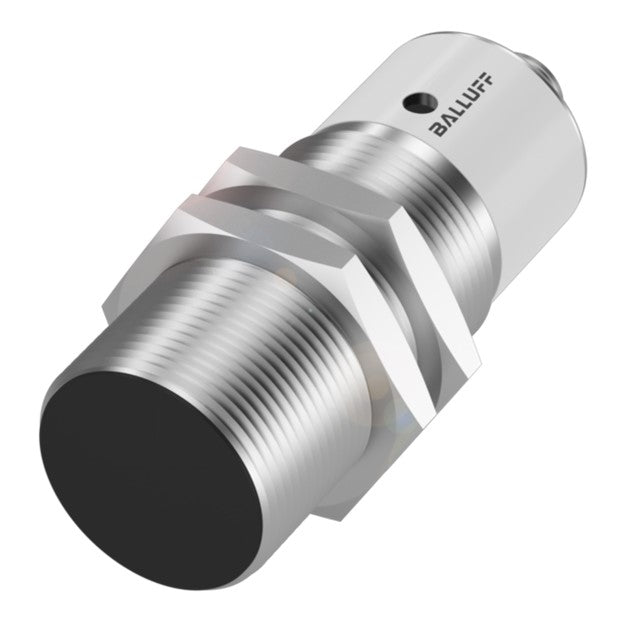

Balluff BES 515-114-S4-C Inductive sensor, PNP, NO/NC Part number BES02E0

This inductive proximity sensor detects metal targets without contact, switching a PNP output configurable as normally open or normally closed at a rated distance of 10mm. The stainless steel housing and IP68 rating suit flush mounting in washdown or harsh industrial environments, with an M12x1 4-pin connector for field wiring. Operating from 10-30 VDC, it is typically used for position and presence detection of metal components on machinery and process equipment.

Key specifications

• IP rating: IP68
• Operating voltage: 10 - 30 VDC
• Rated voltage: 24 V
• Connection: M12x1 / Male / 4-pin / A-coded
• Output: PNP normally open/normally closed (NO/NC)
• Mounting: Flush mounting
