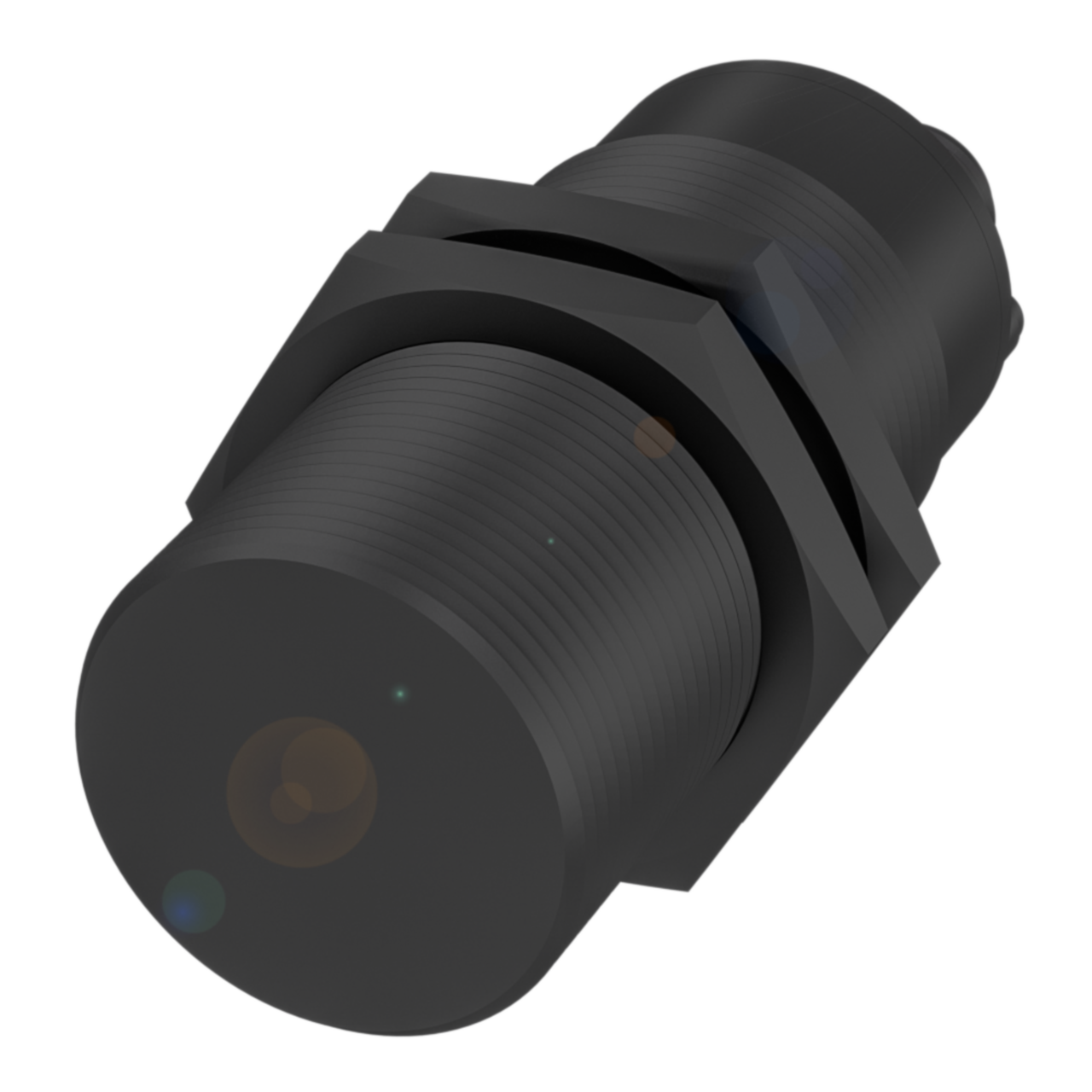

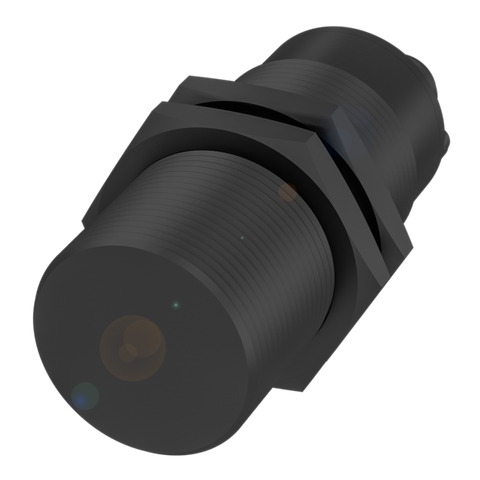

Balluff BCS M30BBM2-PPM20C-S04G Capacitive sensor Part number BCS004M

The BCS M30BBM2-PPM20C-S04G is a capacitive sensor with an M30 x 1.5 thread, designed for flush mounting and housed in PBT construction. It offers a rated operating distance of 20 mm, a PNP NO/NC programmable switching output, and a switching frequency of 100 Hz, operating from 10 to 35 VDC. Connection is via an M12x1 4-pin A-coded male connector, and the sensor carries an IP66 rating (IP64 at the connector output), suiting it to industrial automation panels and machine applications requiring detection of both conductive and non-conductive materials.

Key specifications

• IP rating: IP66, IP64 at connector output
• Operating voltage: 10 - 35 VDC
• Rated voltage: 75 VDC
• Connection: M12x1 / Male / 4-pin / A-coded
• Output: PNP NO/NC programmable
• Mounting: Flush mounting
