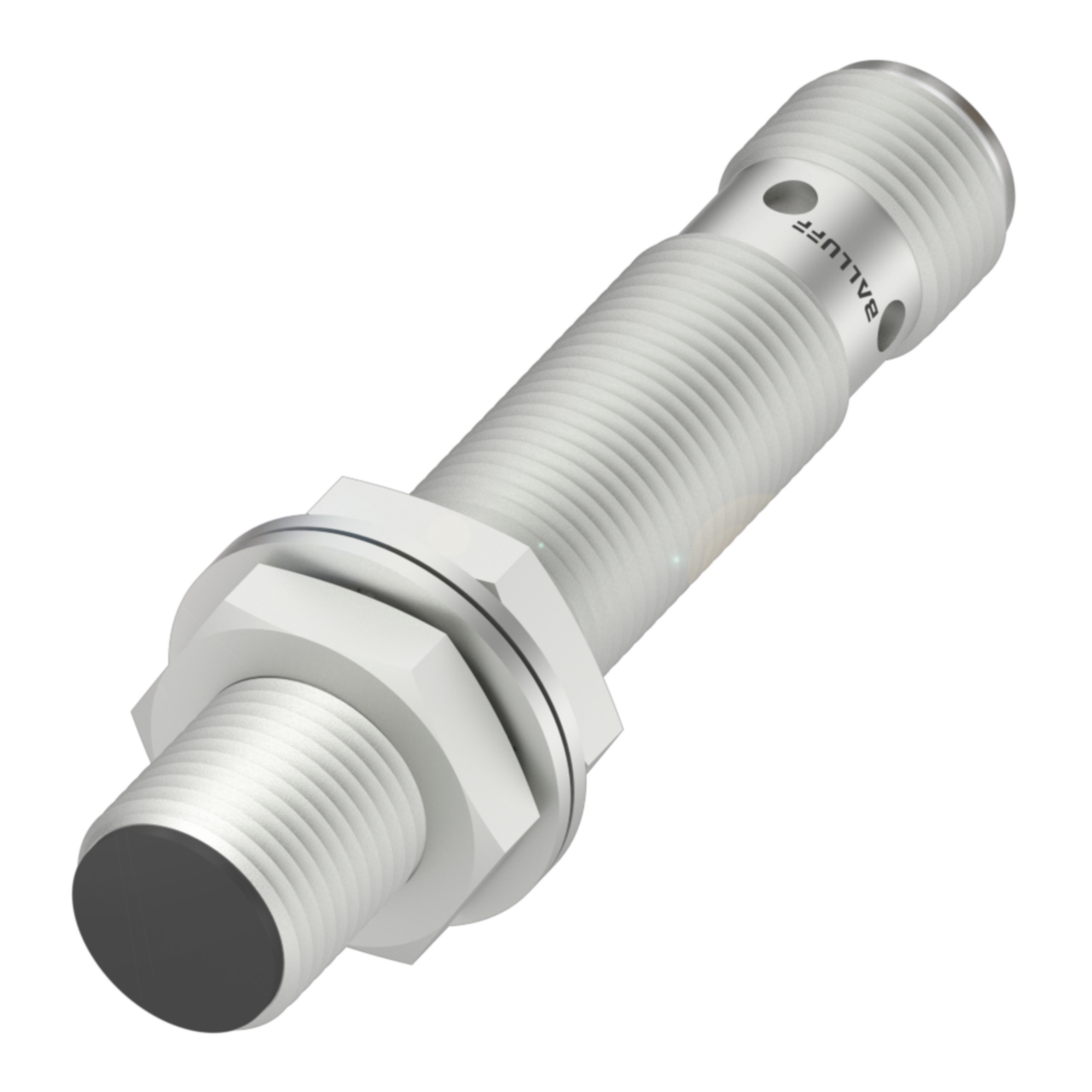

Balluff BCS M12B4G1-PSC80H-EP02 Capacitive level sensor Part number BCS00PC

This M12 capacitive level sensor detects the presence of liquids or bulk materials through non-metallic vessel walls, using a PNP normally-open switching output. The stainless steel housing and PBT sensing face, rated IP67, suit installation in non-flush mounting arrangements on tanks or containers within an operating temperature range of -25 to 85°C. It connects via a 2.00 m PUR cable and operates on a 10...30 VDC supply, making it suitable for level detection tasks in industrial process and machine applications.

Key specifications

• IP rating: IP67
• Operating voltage: 10...30 VDC
• Connection: Cable, 2.00 m, PUR
• Output: PNP normally open (NO)
• Operating temperature: -25...85 °C
• Dimensions: Ø 12 x 61 mm
