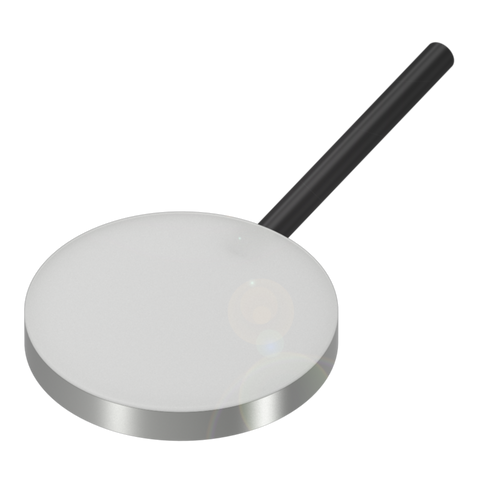

Balluff BCS D30T401-PSC15C-EP02 Capacitive sensor, PNP Part number BCS003A

This capacitive sensor detects the presence of materials without physical contact, using a PTFE sensing face suited to non-metallic targets. The Ø30 x 4 mm stainless steel housing is designed for flush mounting, with a sensing range of 2 to 15 mm and a PNP normally open output operating at 10...35 VDC. Its IP67-rated construction and ambient temperature range of -30 to 70 °C make it suitable for use in industrial environments where washdown or dust exposure may occur.

Key specifications

• IP rating: IP67
• Operating voltage: 10...35 VDC
• Connection: Cable, 2.00 m, PUR
• Output: PNP normally open (NO)
• Operating temperature: -30...70 °C
• Dimensions: Ø 30 x 4 mm
