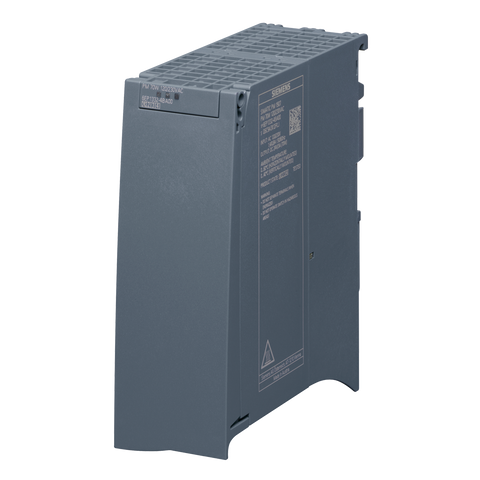

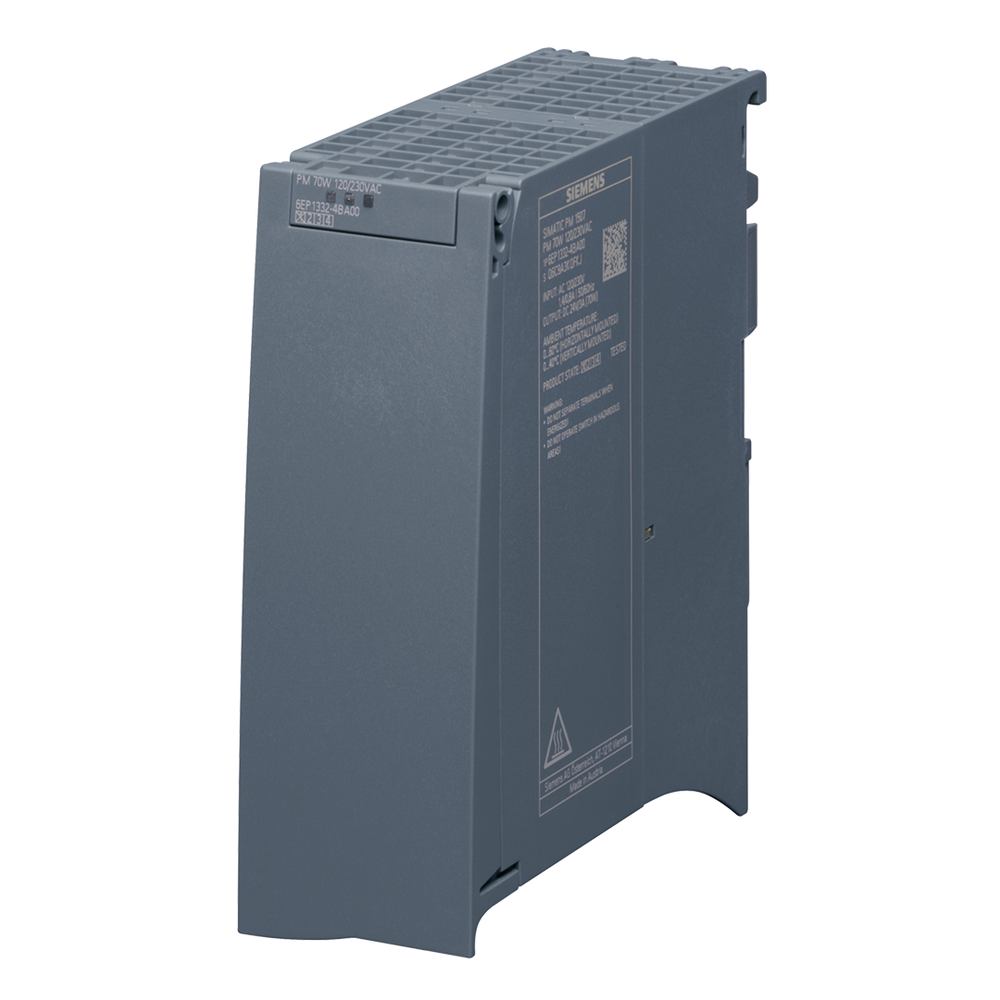

Siemens Stabilized power supply for Simatic S7-1500, 3A Part number 6EP1332-4BA00

The SIMATIC PM 1507 24V/3A Stabilized Power Supply delivers dedicated load power supply capabilities specifically optimized for SIMATIC S7-1500 automation systems with 120/230V AC input and regulated 24V DC/3A output. This active product provides specialized power module (PM) functionality with automatic input voltage range selection designed to match SIMATIC S7-1500 controller requirements. Enhanced with SIMATIC design integration, compact form factor, and seamless compatibility with S7-1500 system components including CPU, system power supply, I/O modules, sensors, and actuators.

Key Features

• S7-1500 Optimized: Specifically designed and optimized for SIMATIC S7-1500 automation systems
• 3A Output Capacity: Regulated 24V DC output with 3A current capability for system loads
• Automatic Range Selection: Automatic input voltage range selection for flexible installation
• SIMATIC Design: Integrated design aesthetic and functionality matching SIMATIC system architecture
• Load Power Module: Dedicated load power supply module for distributed system components
• Compact Integration: Space-efficient design optimized for SIMATIC control cabinet integration
• System Power Distribution: Supplies power to CPU, PS, I/O circuits, sensors, and actuators
• Industrial Grade Construction: Robust design for demanding automation environments

Technical Specifications

• Input Voltage: 120/230V AC (automatic range selection) | Output Voltage: 24V DC stabilized
• Input Range: 85-132V AC (120V) / 170-264V AC (230V) | Output Current: 3A maximum
• Power Output: 72W | Weight: 0.450 kg

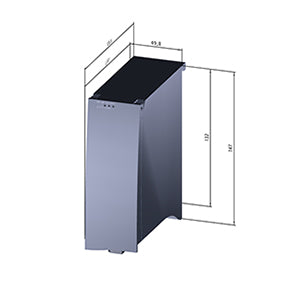

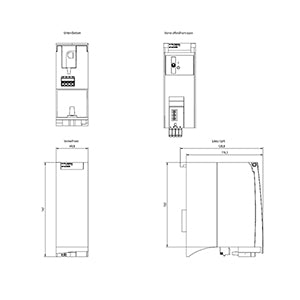

• Dimensions: 13.50 x 15.50 x 6.00 cm | Housing Dimensions: 50mm (W) × 147mm (H) × 129mm (D)
• Frequency: 50/60 Hz (45-65 Hz range) | Mounting: SIMATIC rail system
• Input Current: 1.4A (120V) / 0.8A (230V) | Protection Class: Class I
• Connection Type: Screw/spring clamp terminals | Overvoltage Protection: Electronic limitation <28.8V
• Mains Buffering: 20ms minimum at rated output | Short-Circuit Protection: Electronic shutdown with auto-restart

Applications & Integration

Primary Applications:

• SIMATIC S7-1500 automation system load power supply for system components
• CPU and system power supply (PS) power distribution
• I/O module input/output circuit power supply
• Sensor and actuator power distribution in SIMATIC systems

System Compatibility:

• Specifically designed for SIMATIC S7-1500 controllers
• Compatible with SIMATIC system power supply architecture
• Integration with SIMATIC design mounting and connection systems
• Suitable for comprehensive SIMATIC automation solutions

Performance Benefits:

• Automatic input voltage range selection simplifies installation
• Optimized power delivery for SIMATIC S7-1500 system requirements
• Seamless integration with SIMATIC design and functionality
• Dedicated load power supply reduces system complexity and improves reliability

Quality & Compliance

• Status: PM300 Active Product | Origin: Romania
• EAN: 4025515152705 | UPC: 887621053451
• RoHS Compliant: Since 05.12.2012 | WEEE: Take-back obligation applies
• REACH: Contains lead compounds above 0.1% w/w (safe when used as intended)
• Export Control: AL: N / ECCN: N
• Certifications: CE marking, cULus-Listed (UL 508, CSA C22.2 No. 107.1)
• Product Class: A - Standard stock item with return capability

Package Contents

• 1 × SIMATIC PM 1507 24V/3A Stabilized Power Supply, technical documentation, installation accessories
