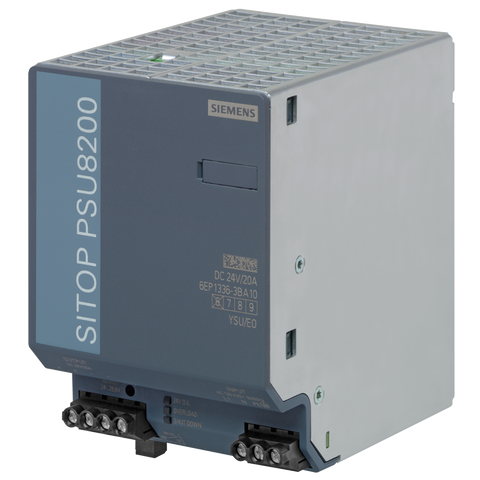

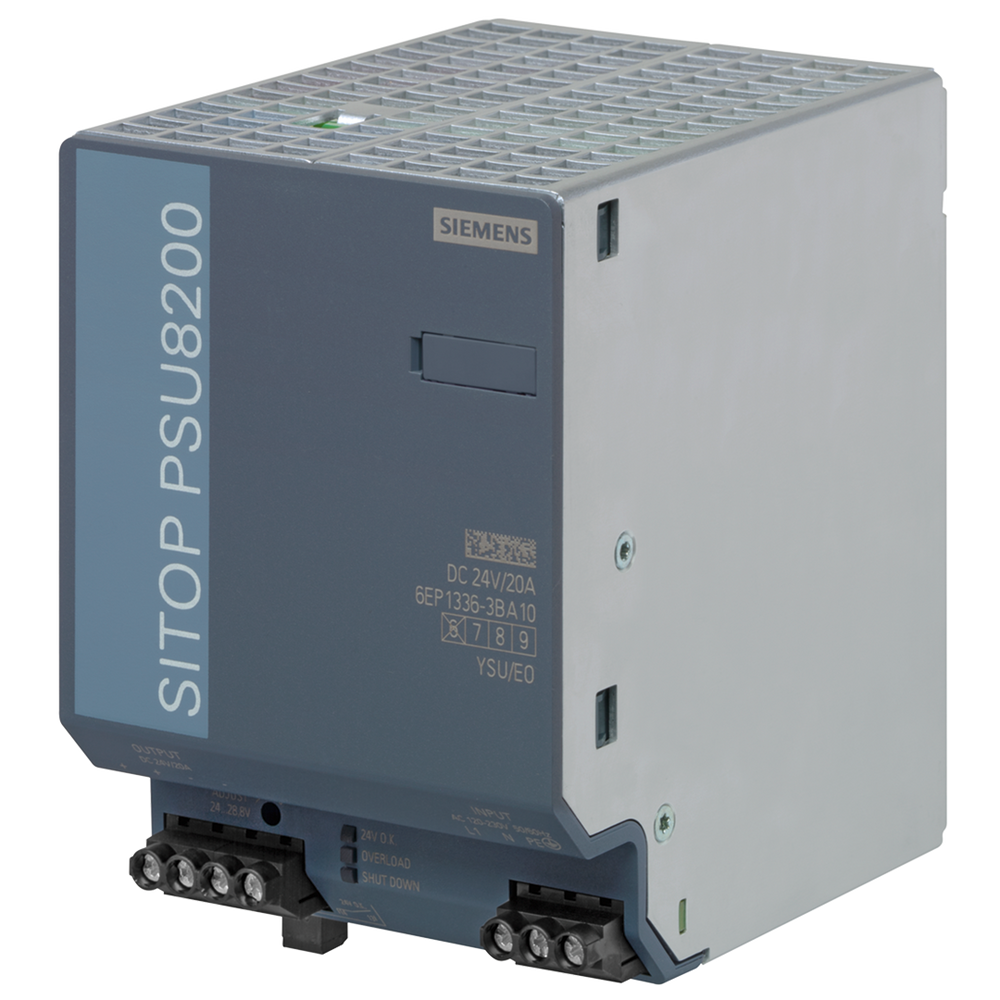

Siemens Sitop PSU8200 Stabilized power supply, 24VDC, 20A Part number 6EP1336-3BA10

EAN / Barcode 4025515152583
Product Type Control Panel
Product Class DC-power supply
Category Power Supply
Sub-category Power Supply
ETIM Class DC-power supply
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

This SITOP PSU8200 power supply delivers 24V DC at 20A and supports both 1-phase and 2-phase AC inputs as well as DC input. It includes adjustable output voltage and is designed for continuous operation in industrial environments.

Technical Specifications

1st secondary output voltage24 V
Built-in height225 mm
Built-in width90 mm
Compliance/CertificationsCB-certificate / CE marking / CSA approval / EAC approval / EN 55022 Class B / EN 61000-3-2 / EN 61000-6-2 / NEC Class / Regulatory Compliance Mark (RCM) / SEMI F47 / UL approval
Connection Typescrew terminal
Degree of protection (IP)IP20
Depth125 mm
Height125 mm
IP RatingIP20
Max. output current 120 A
Modular versionYes
Mounting TypeSnaps onto DIN rail EN 60715 35x7.5/15
Nominal value output current 120 A
Nominal value output voltage 124 V
Output voltage stabilizedYes
Packaging size / unitpc(s)
Part Depth (mm)125mm
Part Height (mm)90mm
Part Width (mm)90mm
Power output480 W
Rail mounting possibleYes
Rated supply voltage AC 50 Hz230 V
Rated supply voltage AC 60 Hz120 V
Rated supply voltage DC220 V
Secondary voltage adjustableYes
Short-circuit-proofYes
StabilizedYes
Supply Voltagemin rated value 120 V / max rated value 230 V / initial value 85 V / full-scale value 275 V
Temperature: Operating-25°C to 70°C
Type of electric connectionScrew connection
Voltage Output24 V
Voltage type (supply voltage)AC/DC
Weight (g)1 200g
Width90 mm
Country of OriginGermany
