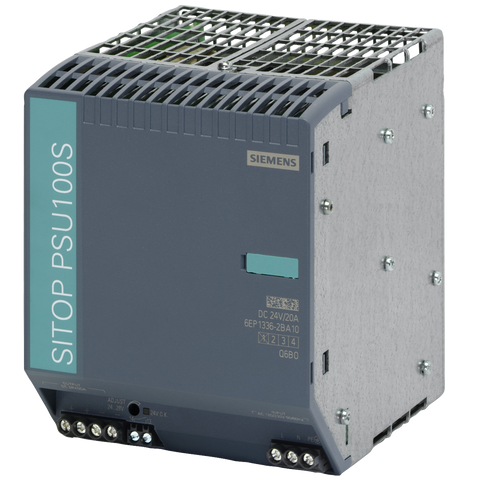

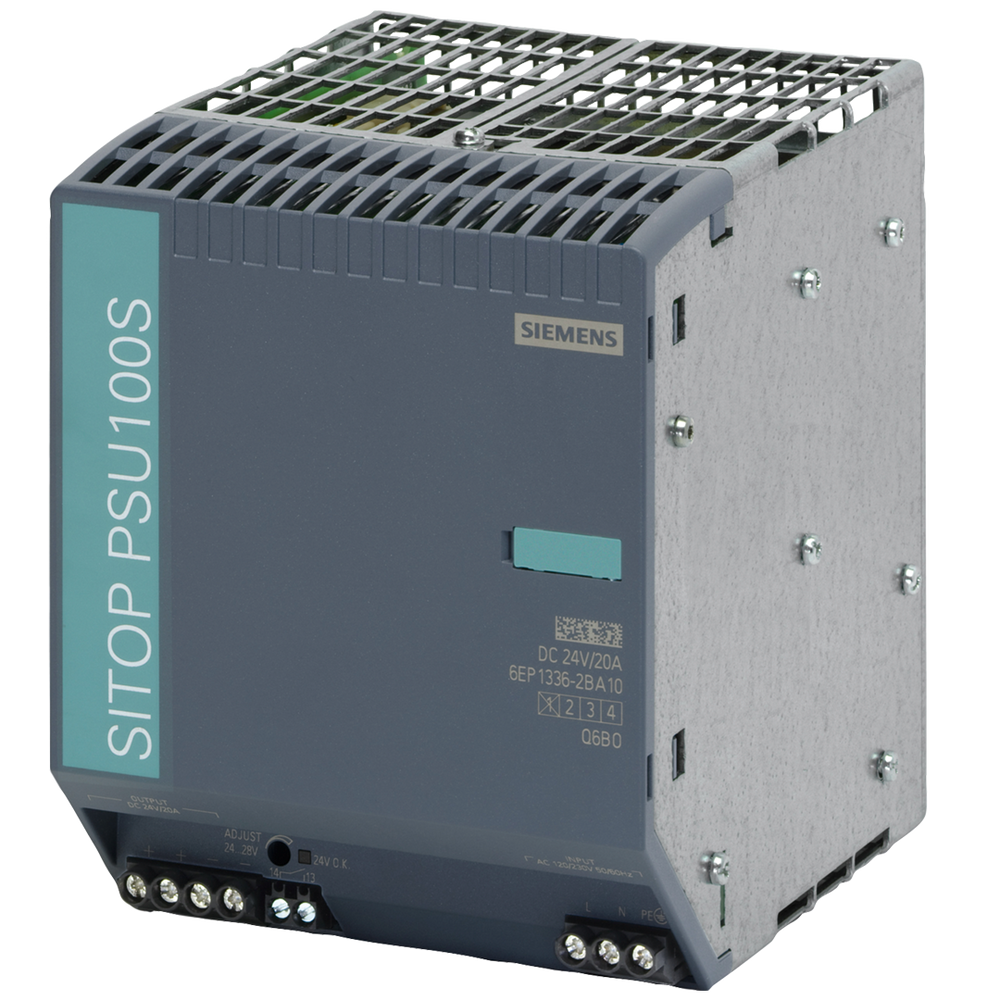

Siemens Sitop PSU100S Stabilized power supply, 24VDC, 20A Part number 6EP1336-2BA10

EAN / Barcode 4025515152897
Product Type Control Panel
Product Class DC-power supply
Category Power Supply
Sub-category Power Supply
ETIM Class DC-power supply
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

Stabilized single-phase, universal and powerful standard power supplies for machine and plant construction. To further increase the 24 V availability, the SITOP smart power supplies can be combined with buffer, DC UPS, redundancy and selectivity modules. Permanent overload capability with 1.2 times the rated current up to 45 °C ambient temperature.

Up to 90% efficiency and cULus, cCSAus and DNV GL certifications.

Technical Specifications

1st secondary output voltage24 V
Built-in height245 mm
Built-in width120 mm
Degree of protection (IP)IP20
Depth150 mm
Height145 mm
Max. output current 120 A
Modular versionYes
Nominal value output current 120 A
Nominal value output voltage 124 V
Output voltage stabilizedYes
Power output480 W
Rail mounting possibleYes
Rated supply voltage AC 50 Hz230 V
Rated supply voltage AC 60 Hz120 V
Secondary voltage adjustableYes
Short-circuit-proofYes
StabilizedYes
Type of electric connectionScrew connection
Voltage type (supply voltage)AC
Width115 mm
Part Width17 mm
Part Height20 mm
Part Depth14 mm
Weight2400 g
Country of OriginRomania
