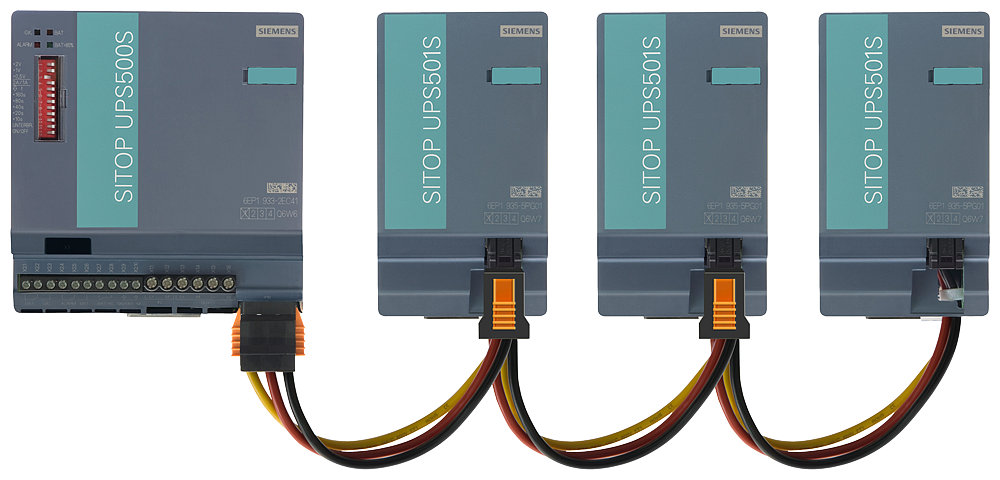

SITOP UPS500S/DC/24VDC/15A/2.5KWS
📄 Datasheet
Siemens

SITOP UPS500S/DC/24VDC/15A/2.5KWS Part number 6EP1933-2EC41

EAN / Barcode 4025515152392
Product Type Control Panel
Category Power Supply
ETIM Class UPS
Back Order
💬 Ask an Expert - Technical Support Available

Product Description

This is a DC uninterruptible power supply module rated for 24VDC operation at 15A, providing 2.5kWs of stored energy to maintain output during mains interruptions. It sits between a SITOP power supply and downstream loads, bridging brief supply dropouts to protect connected control and automation equipment from unexpected shutdown. Typical applications include control panels and machine builds where continuity of 24VDC supply is required during short power interruptions.

Technical Specifications

Bridging time full load0.05 min
Depth125 mm
Height125 mm
Output effective power360 W
Output voltage24 V
USV- technologyOffline
Voltage typeDC
Weight1 kg
Width120 mm
Weight1 kg
