Description

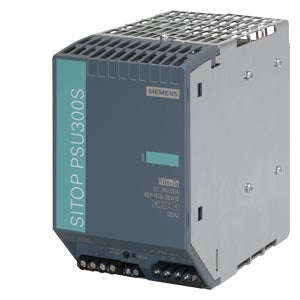

xThis SITOP PSU300S is a 3-phase power supply with an output of 24V DC at 20A. It supports a wide input range from 400V to 500V AC and provides short-circuit and overload protection, suitable for industrial automation applications.
Specifications
x| IP Rating | IP20 |
| Country of Origin | Germany |
| Compliance/Certifications | CB-certificate / CE marking / CSA approval / EAC approval / EN 55022 Class B / EN 61000-3-2 / EN 61000-6-2 / NEC Class / Regulatory Compliance Mark (RCM) / SEMI F47 / UL approval |
| Temperature: Operating | -25°C to 60°C |

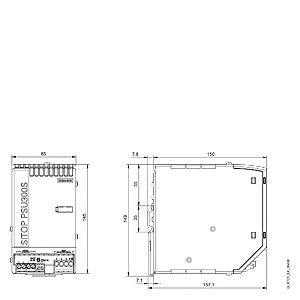

| Part Depth (mm) | 150mm |
| Part Width (mm) | 90mm |
| Part Height (mm) | 90mm |
| Weight (g) | 1 600g |
| Packaging size / unit | pc(s) |
| Connection Type | screw terminal |
| Supply Voltage | min rated value 400 V / max rated value 500 V / initial value 340 V / full-scale value 550 V |
| Mounting Type | Snaps onto DIN rail EN 60715 35x7.5/15 |
| Voltage Output | 24 V |
