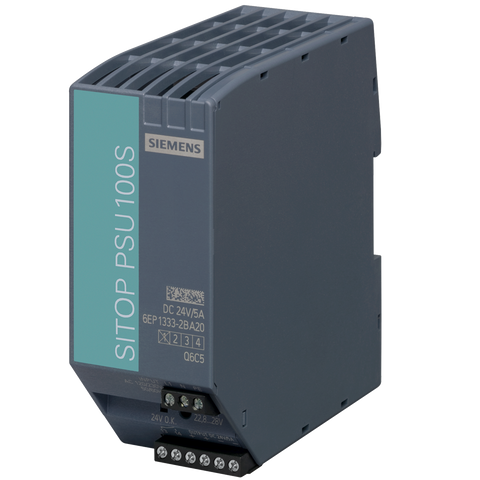

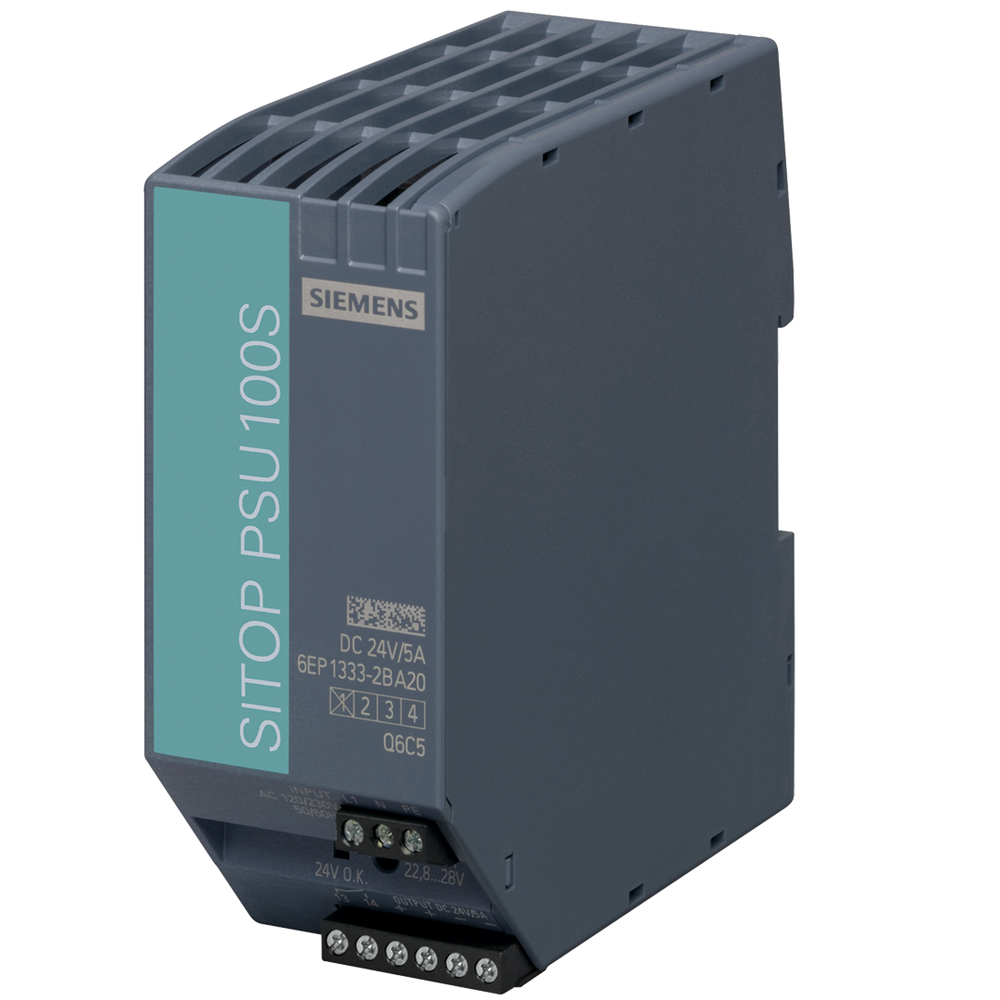

Siemens Sitop PSU100S Stabilized power supply, 24VDC, 5A

Product Overview

The SIMATIC SITOP PSU100S 5A Stabilized Power Supply delivers universal single-phase AC to DC power conversion with 120/230V AC input and regulated 24V DC/5A output for standard industrial automation applications. This active product provides powerful standard power supply capabilities for machine and plant construction, featuring excellent overload response with 150% power boost capability and permanent 120% overload capacity. Enhanced with compact design, high efficiency operation, and compatibility with SITOP add-on modules for comprehensive power system solutions in industrial environments.

Key Features

• Single-Phase Input: 120/230V AC input for universal standard applications
• 5A Output Capacity: Regulated 24V DC output with 5A continuous current capability
• Excellent Overload Response: 150% power boost with permanent 120% overload capacity
• Compact Design: Space-efficient form factor with no lateral clearances required
• High Efficiency: Minimizes energy consumption and heat generation in control cabinets
• SITOP Smart Technology: Universal and powerful standard power supply for machinery
• Module Compatibility: Compatible with buffer, DC UPS, redundancy, and selectivity modules
• Robust Construction: Designed for demanding industrial automation environments

Technical Specifications

• Input Voltage: 120/230V AC (single-phase) | Output Voltage: 24V DC stabilized
• Output Current: 5A continuous | Power Output: 120W
• Overload Capability: 150% power boost, 120% permanent overload | Weight: 0.400 kg

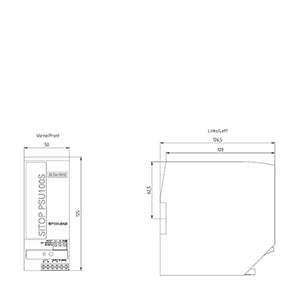

• Dimensions: 14.00 x 13.00 x 6.00 cm | Mounting: DIN rail standard
• Operating Temperature: Standard industrial range | Protection Class: Industrial standard
• Frequency: 50/60 Hz | Connection Type: Screw terminals
• Efficiency: High efficiency design | Case Material: Compact housing
• Ambient Temperature: Standard industrial operation range | Installation: No lateral clearances required

Applications & Integration

Primary Applications:

• Standard industrial machinery and plant construction power supply systems
• Manufacturing automation requiring reliable single-phase 24V DC power
• Control cabinet installations with moderate power consumption requirements
• Machine and plant engineering applications requiring stable power conversion

System Compatibility:

• Compatible with SITOP buffer modules for power failure protection
• Integration with DC UPS modules for uninterrupted power supply
• Suitable for redundancy modules for increased system availability
• Compatible with selectivity modules for load circuit protection

Performance Benefits:

• Handles loads with high power consumption without problems due to 150% power boost
• Power reserves available for system expansions with 120% permanent overload capability
• High efficiency design reduces energy consumption and heat generation
• Compact design saves valuable control cabinet space

Quality & Compliance

• Status: PM300 Active Product | Origin: Austria
• EAN: 4025515153481 | UPC: 887621038632
• RoHS Compliant: Since 01.08.2006 | WEEE: Take-back obligation applies
• REACH: Contains lead compounds above 0.1% w/w (safe when used as intended)
• Export Control: AL: N / ECCN: N
• Certifications: Industrial automation standards compliance
• Product Class: A - Standard stock item with return capability

Package Contents

• 1 × SITOP PSU100S 5A Stabilized Power Supply, technical documentation, installation accessories
