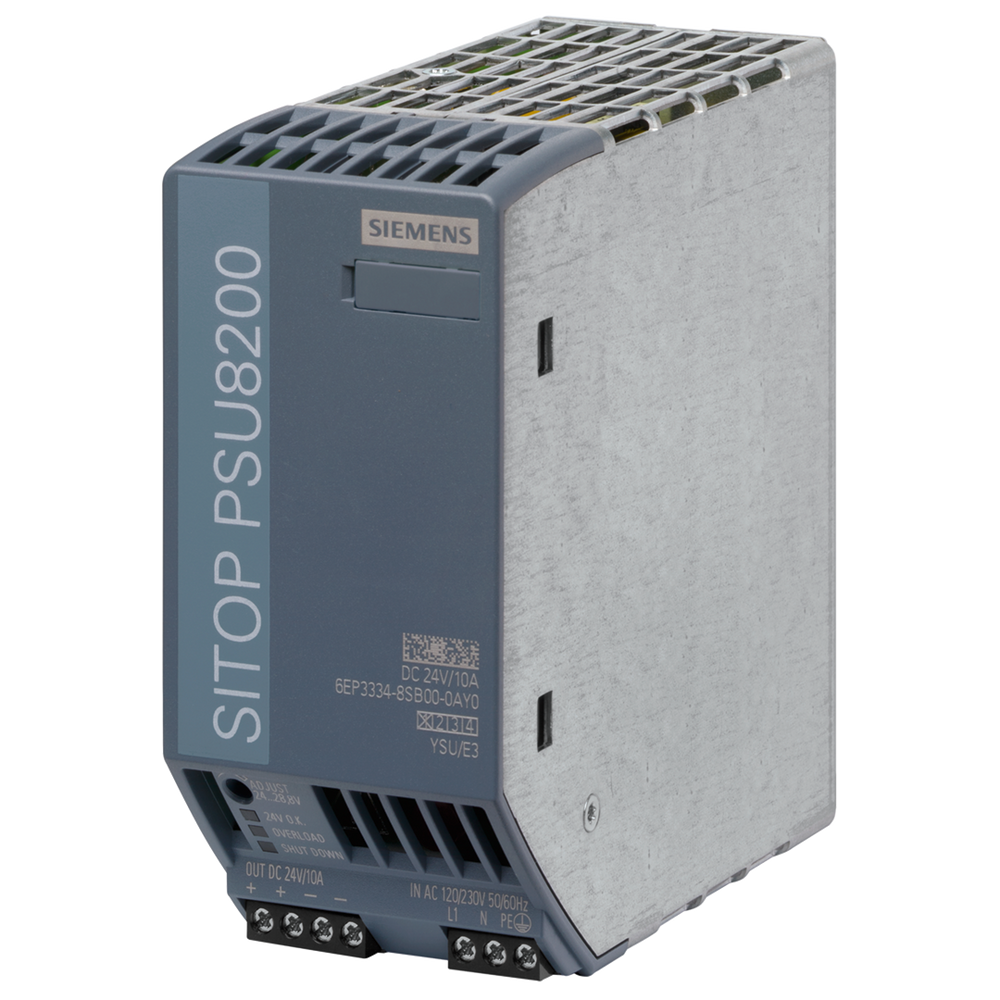

Siemens Sitop PSU8200 Stabilized power supply, 24VDC, 10A

SKU / Article No. 6EP3334-8SB00-0AY0
Product Type Control Panel
Product Class DC-power supply
Category Power Supply
Sub-category Power Supply
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

Product Overview

SITOP PSU8200 24 V/10 A stabilized power supply input: 120/230 V AC output: 24 V DC/10 A

The SITOP PSU8200 is ideal for complex plants and machines, offering technology power supply solutions for demanding applications. The wide-range input allows connection to any supply system worldwide and withstands large voltage fluctuations. The power boost briefly delivers up to three times the rated current, and in the event of an overload, you can choose between constant current with automatic restart or latching shutdown.

Key Features

Advanced Power Management:

  • Power Boost function delivers up to 3 times the rated current for 25ms for tripping protective devices
  • Extra power with 1.5 times the rated current (5s/min) for brief, operational overload
  • Optional short-circuit behavior between constant current and restart
  • Optional symmetrical load distribution for parallel operation

Superior Efficiency & Design:

  • Extremely high efficiency up to 95% (94% efficiency)
  • Extremely slim design – no lateral installation clearances required
  • Compact metal enclosure saves space in control cabinets
  • Very high efficiency reduces energy consumption and heat generation

Robust Operating Range:

  • Wide temperature range from -25 to +70°C
  • IP20 protection rating
  • Comprehensive certifications, such as cULus, ATEX or GL

Technical Specifications

Input Specifications:

  • Input Voltage: 120/230 V AC
  • Frequency: 50 to 60 Hz
  • Input Current: 1.9/4 A

Output Specifications:

  • Output Voltage: 24 V DC
  • Output Current: 10 A
  • Power Rating: 240 W

Physical Specifications:

  • Net Weight: 1.000 kg
  • Dimensions: 55 mm W x 125 mm D x 125 mm H
  • Packaging Dimension: 14.00 x 14.00 x 8.00 CM
  • Terminal Type: Screw Terminal

Additional Information:

  • EAN: 4025515154365
  • UPC: 887621837273
  • Country of Origin: Romania
  • Export Control Regulations: AL: N / ECCN: N

Applications

The SITOP PSU8200 power supply units can be combined with buffer, DC UPS, redundancy and selectivity modules to further increase availability. The unit is designed to meet the high demands of industrial environments, with a robust construction that can withstand harsh conditions.

Compliance & Safety

  • RoHS Compliance: Since 01.08.2006
  • WEEE (2012/19/EU) Take-Back Obligation: Yes
  • Equipped with overload protection and short-circuit protection

REACH Regulation Notice: This product includes articles containing Lead and Lead monoxide in concentrations higher than 0.1% weight by weight. Based on current information, these substances do not pose risk if articles are used as intended.

Download existing graphical data for this product:

Technical Documentation:

CAD Data:

Product Information:

Technical Specifications

IP RatingIP20
Country of OriginGermany
Compliance/CertificationsABS / CB-certificate / CE / cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cCSAus (CSA C22.2 No. 60950-1, UL 60950-1) / CSA; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cCSAus (CSA C22.2 No. 60950-1, UL 60950-1) / DNV / EAC / EN 55022 Class B / EN 61000-3-2 / EN 61000-6-2 / RCM / SEMI F47 / Shipbuilding approval
Temperature: Operating-25°C to 70°C\n
Part Depth (mm)125mm
Part Width (mm)55mm
Part Height (mm)55mm
Weight (g)1 000g
Packaging size / unit pc(s)
Connection TypeScrew terminal (electrical connection) / L, N, PE: 1 screw terminal each for 0.2 ... 2.5 mm² single-core/finely stranded (at input) / +, -: 2 screw terminals each for 0.2 ... 2.5 mm²(at output) / 13, 14 (alarm signal): 1 screw terminal each for 0.14 ... 1.5 mm²; 15, 16\n(Remote): 1 screw terminal each for 0.14 ... 1.5 mm²\r (auxiliary contacts)
Max Frequency50 / 60 Hz
Supply Voltage120 / 230 V
Mounting TypeStandard rail mounting; Snaps onto DIN rail EN 60715 35x7.5/15
Voltage Output24 VDC
View complete specifications on Siemens

Videos & Media

▶

Product Overview

Overview, features and application examples
