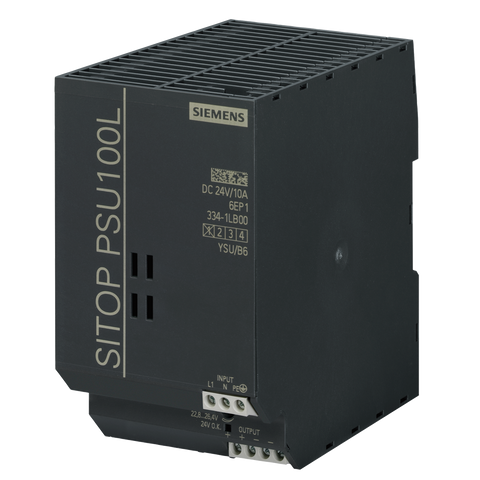

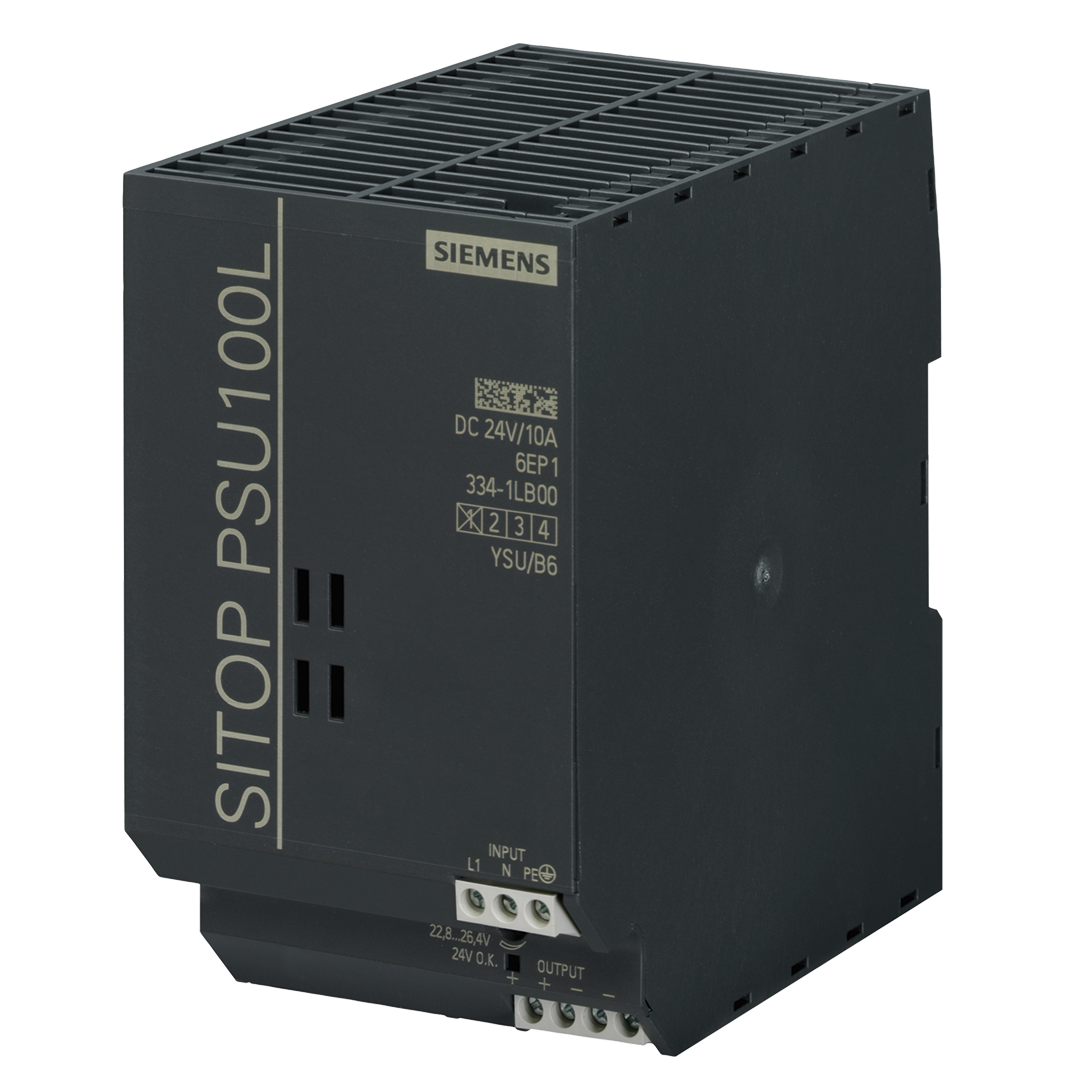

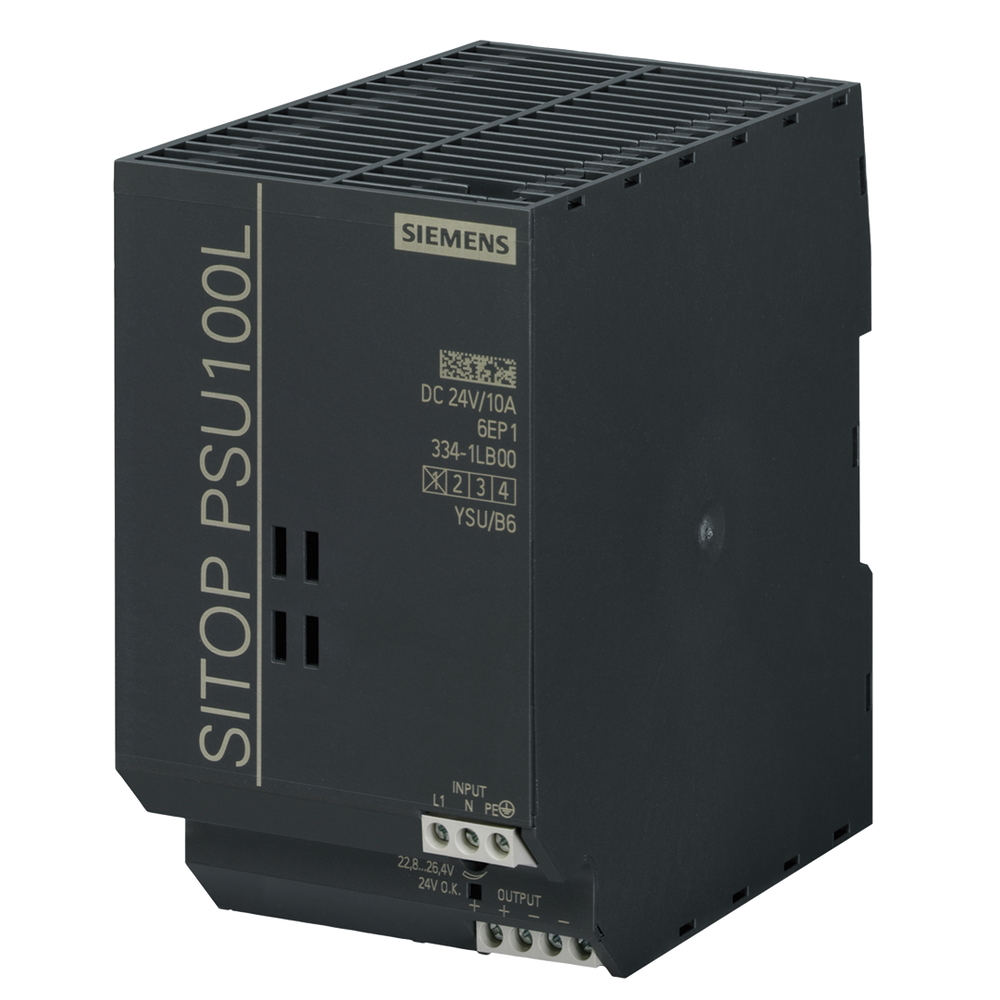

Siemens Sitop PSU100L Stabilized power supply, 24VDC, 10A Part number 6EP1334-1LB00

EAN / Barcode 4025515152996
Product Type Control Panel
Product Class DC-power supply
ETIM Class DC-power supply
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

SITOP PSU100L is ideal for complex plants and machines. The wide-range input allows it to be connected to any supply system and also to withstand large voltage fluctuations. The power boost briefly delivers up to three times the rated current.

And in the event of an overload, you can choose between constant current with automatic restart or latching shutdown. The high degree of efficiency reduces energy consumption, while the compact metal enclosure saves space.

Technical Specifications

1st secondary output voltage24 V
Built-in height225 mm
Built-in width70 mm
Degree of protection (IP)IP20
Depth120 mm
Height125 mm
Max. output current 110 A
Modular versionYes
Nominal value output current 110 A
Nominal value output voltage 124 V
Output voltage stabilizedYes
Power output240 W
Rail mounting possibleYes
Rated supply voltage AC 50 Hz230 V
Rated supply voltage AC 60 Hz120 V
Secondary voltage adjustableYes
Short-circuit-proofYes
StabilizedYes
Type of electric connectionScrew connection
Voltage type (supply voltage)AC
Width70 mm
Part Width13 mm
Part Height14 mm
Part Depth8 mm
Weight600 g
Country of OriginRomania
View complete specifications on Siemens
