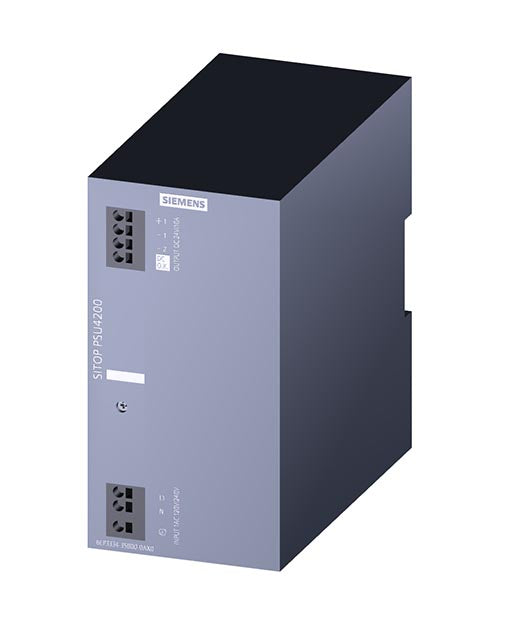

Siemens Sitop PSU4200 Power supply, stablized, 24VAC, 10A, output: 24VDC, 10A Part number 6EP3334-3SB00-0AX0

Product Overview

The Siemens SITOP PSU4200 single-phase stabilized power supply (SKU: 6EP3334-3SB00-0AX0) converts 1-phase AC mains to 24 V DC output at up to 10 A. It is designed for reliable DIN-rail mounting in control cabinets, offering compact sizing and robust performance for industrial automation applications.

Key Features

• Input voltage range: 100 … 240 V AC (automatic selection) or 85 … 264 V AC (wide-range) depending on variant
• Output voltage: 24 V DC, 10 A max
• Stabilised output with adjustable voltage range (24 … 28 V) and low ripple
• DIN-rail mountable with push-in terminals for quick installation
• Protection rating: IP20 – suitable for control cabinet use
• High efficiency design for energy-sensitive applications

Technical Specifications

• Product Type: SITOP PSU4200 single-phase stabilized power supply
• Article Number: 6EP3334-3SB00-0AX0
• Input Voltage (AC): 100 … 120 V or 200 … 240 V (variant dependent) or 85 … 264 V (wide-range) [single-phase]
• Frequency: 50/60 Hz
• Output Voltage: 24 V DC
• Output Current: 10 A
• Adjustable Output Voltage: 24 … 28 V
• Buffering Time at Vi = input rated: approx. 15 ms
• Protection Rating: IP20
• Operating Ambient Temperature: –25 °C … +70 °C
• Mounting Type: DIN-rail (35 mm) or wall mount (depending variant)
• Net Weight (approx.): 0.80 kg

Compliance & Certifications

• CE marked – complies with relevant EU directives
• RoHS conformant

Applications

Ideal for supplying control systems, PLCs, sensors, and automation modules in industrial plants. The SITOP PSU4200 delivers reliable 24 V DC power at 10 A with compact mounting, making it suitable for control cabinets in manufacturing, process, or infrastructure environments.
