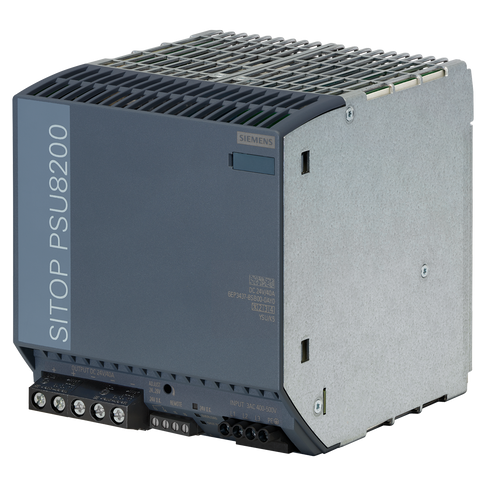

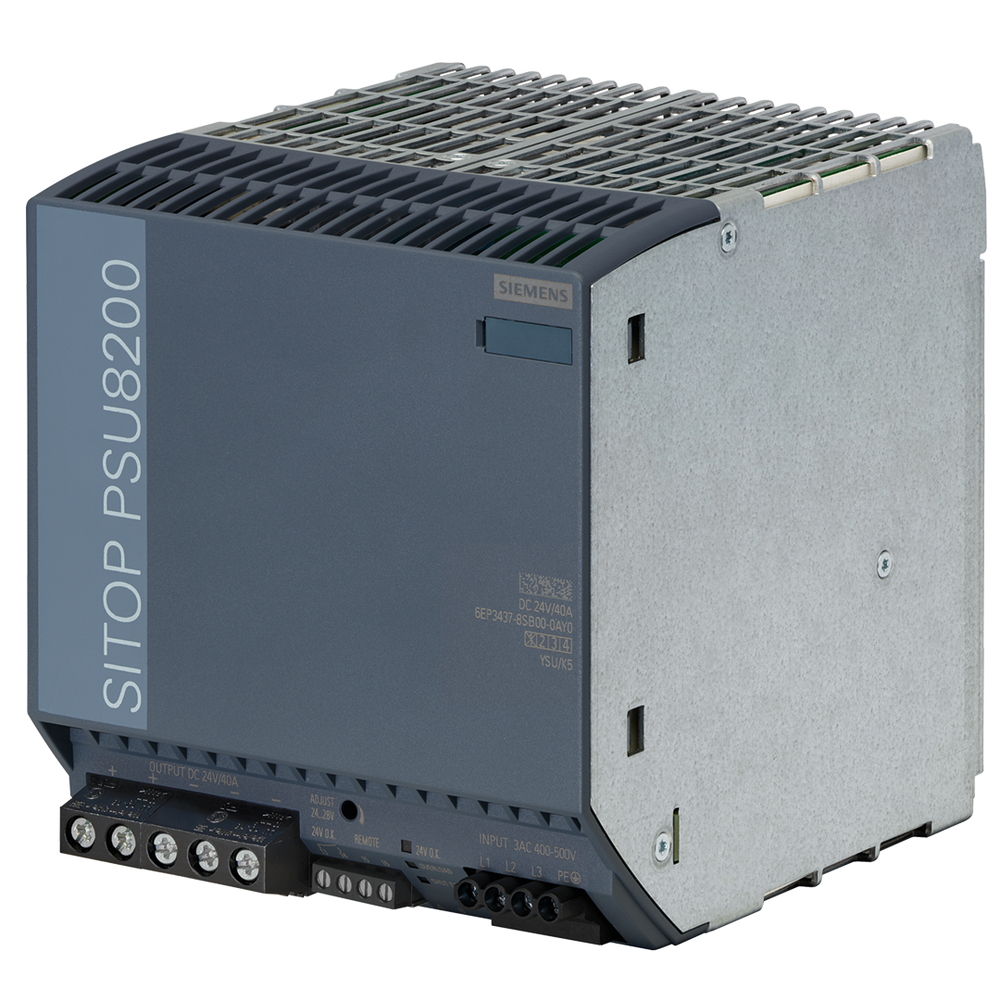

Siemens Sitop PSU8200 Stabilized power supply, 24VDC, 40A Part number 6EP3437-8SB00-0AY0

EAN / Barcode 4025515154891
Product Type Control Panel
Product Class DC-power supply
Category Power Supply
Sub-category Power Supply
ETIM Class DC-power supply
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration

Product Description

The 3-phase SITOP PSU8200 are technology power supplies for challenging solutions. The wide-range input allows a connection to almost any electricity supply network worldwide and ensures a high degree of safety even if there are large voltage fluctuations. To further increase the 24 V availability, the SITOP power supplies can be combined with buffer, DC UPS, redundancy and selectivity modules.

Technical Specifications

1st secondary output voltage24 V
Built-in height225 mm
Built-in width135 mm
Degree of protection (IP)IP20
Depth150 mm
Height145 mm
Max. output current 140 A
Modular versionYes
Nominal value output current 140 A
Nominal value output voltage 124 V
Output voltage stabilizedYes
Power output960 W
Rail mounting possibleYes
Rated supply voltage AC 50 Hz400 V
Rated supply voltage AC 60 Hz500 V
Secondary voltage adjustableYes
Short-circuit-proofYes
StabilizedYes
Type of electric connectionScrew connection
Voltage type (supply voltage)AC
Width135 mm
Part Width225 mm
Part Height220 mm
Part Depth185 mm
Weight3300 g
Country of OriginRomania
View complete specifications on Siemens
