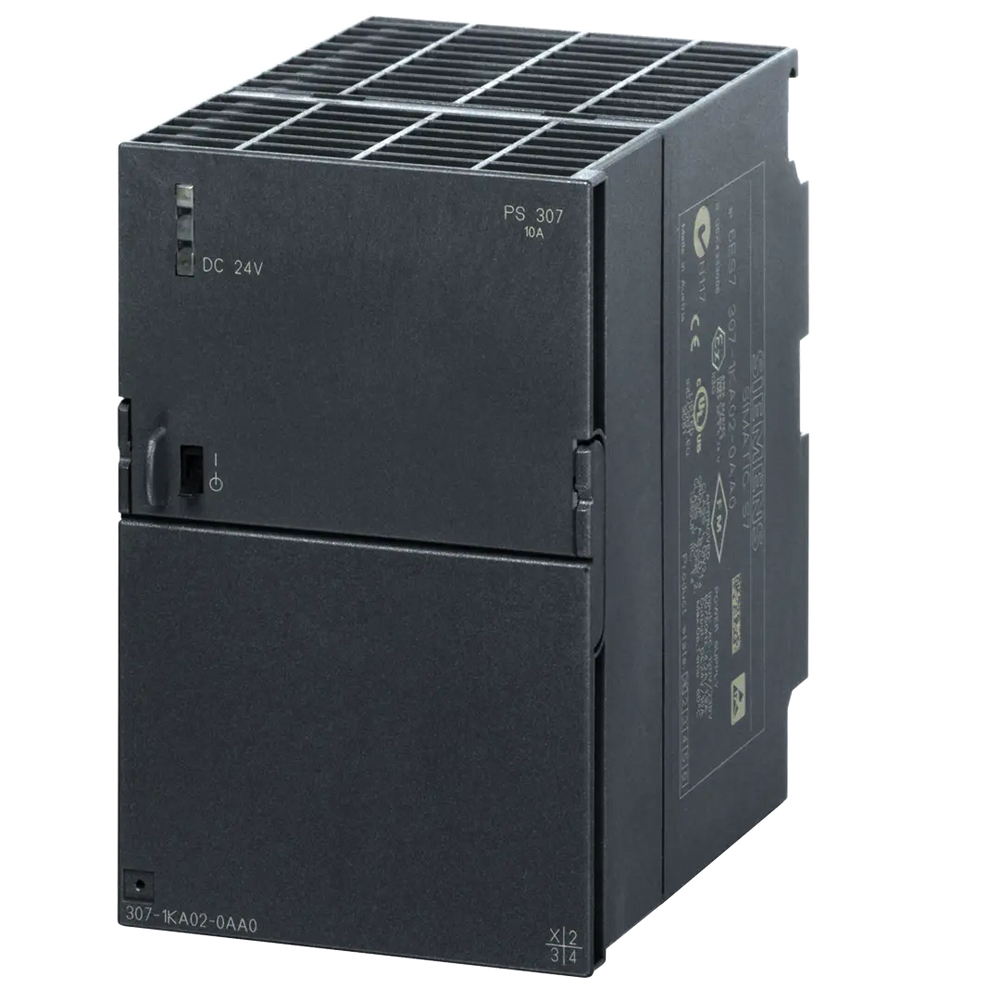

Product Overview

The SIMATIC S7-300 Regulated Power Supply PS307 is a high-performance industrial power supply designed for reliable operation in automation systems. This unit delivers stable 24V DC output at 10A from dual input voltages of 120/230V AC, making it ideal for powering S7-300 and ET 200M systems.

Key Features

• Dual Input Voltage: Accepts both 120V AC and 230V AC input for flexible installation
• High Output Current: Delivers 10A at 24V DC for demanding applications
• Compact Design: Space-efficient form factor for DIN rail mounting
• Industrial Grade: Built for harsh industrial environments with robust construction
• Regulated Output: Provides stable, clean power with minimal ripple
• Overload Protection: Integrated protection circuits ensure safe operation

Technical Specifications

• Input Voltage: 120/230V AC
• Output Voltage: 24V DC
• Output Current: 10A
• Power Rating: 240W
• Net Weight: 0.8 kg

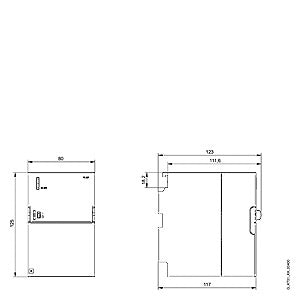

• Dimensions: 125 mm H × 80 mm W × 120 mm D
• Mounting: DIN rail compatible
• Operating Temperature: 0°C to 60°C
• Efficiency: 90%
• Ripple Voltage: 50mV typical

Applications

This power supply is specifically designed for:

• SIMATIC S7-300 programmable logic controllers
• ET 200M distributed I/O systems
• Industrial automation and control systems
• Manufacturing equipment power distribution
• Process control applications

Quality & Compliance

• RoHS Compliant: Meets environmental standards since 01.08.2006
• Country of Origin: Romania
• EAN: 4025515152484
• UPC: 040892550276
• WEEE Compliant: Take-back obligation applies

Important Notice

Product Lifecycle Status: This product is in phase-out status (PM400) effective from 01.10.2023. Please consider this for long-term projects and plan accordingly.

REACH Compliance: This product contains lead and lead monoxide in concentrations above 0.1% w/w. When used as intended, these substances pose no risk during normal operation and disposal.

Package Contents

• 1 × SIMATIC S7-300 Power Supply PS307
• Technical documentation
• Mounting hardware
