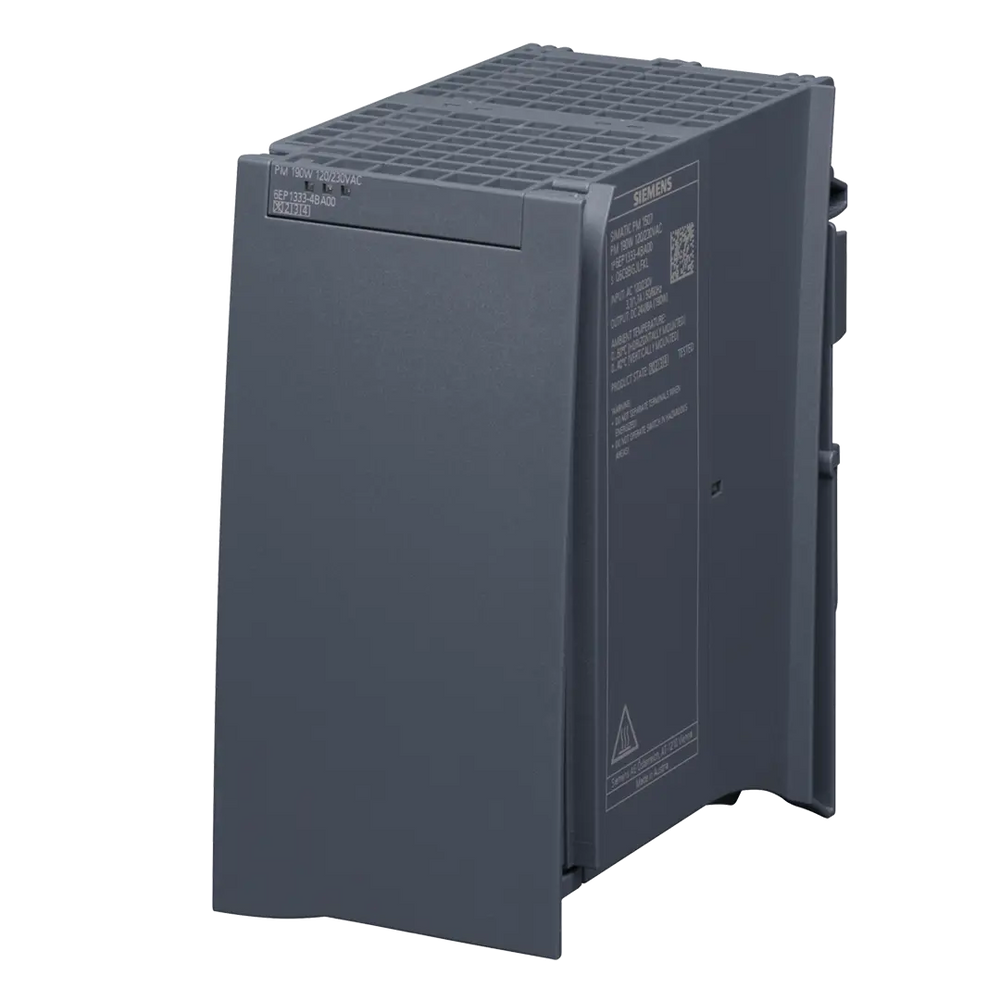

Siemens Regulated power supply for Simatic S7-1500, 8A

Product Overview

The SIMATIC PM 1507 24V/8A Stabilized Power Supply delivers dedicated power conversion specifically designed for SIMATIC S7-1500 automation systems with 120/230V AC input and regulated 24V DC/8A output. This active product provides specialized load power supply capabilities for SIMATIC S7-1500 controllers and ET 200MP distributed I/O systems, featuring SIMATIC design integration and optimized performance for industrial automation applications. Enhanced with single-phase input flexibility, compact form factor, and seamless integration into SIMATIC system architecture for reliable power distribution.

Key Features

• S7-1500 Optimized: Specifically designed for SIMATIC S7-1500 automation systems
• 8A Output Capacity: Regulated 24V DC output with 8A current capability for system loads
• Single-Phase Input: 120/230V AC input for flexible installation requirements
• SIMATIC Design: Integrated design aesthetic matching SIMATIC system components
• Load Power Supply: Dedicated load power supply module for distributed I/O systems
• Compact Form Factor: Space-efficient design optimized for control cabinet integration
• ET 200MP Compatible: Suitable for use with ET 200MP distributed I/O systems
• Industrial Grade Construction: Robust design for demanding automation environments

Technical Specifications

• Input Voltage: 120/230V AC (single-phase) | Output Voltage: 24V DC stabilized
• Output Current: 8A maximum | Input Current: 3.7A (120V) / 1.7A (230V)
• Power Output: 192W | Weight: 0.740 kg

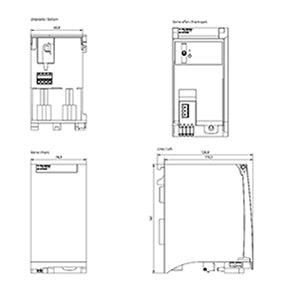

• Dimensions: 13.50 x 15.50 x 8.50 cm | Built-in Width: 75mm
• Built-in Height: 205mm | Mounting: SIMATIC rail system
• Operating Temperature: Standard industrial range | Protection Class: Industrial standard
• Connection Type: SIMATIC standard connections | Frequency: 50/60 Hz
• Design: SIMATIC matching aesthetic | Application: Load power supply module

Applications & Integration

Primary Applications:

• SIMATIC S7-1500 automation system power supply for load circuits
• ET 200MP distributed I/O system power distribution
• Industrial control systems requiring dedicated 24V DC power
• Manufacturing automation with SIMATIC architecture integration

System Compatibility:

• Specifically designed for SIMATIC S7-1500 controllers
• Compatible with ET 200MP distributed I/O systems
• Integration with SIMATIC design power supply architecture
• Suitable for use in comprehensive SIMATIC automation solutions

Performance Benefits:

• Optimized power delivery for SIMATIC S7-1500 system requirements
• Seamless integration with SIMATIC design and mounting systems
• Dedicated load power supply reduces system complexity
• Single-phase input flexibility accommodates various installation requirements

Quality & Compliance

• Status: PM300 Active Product | Origin: Romania
• EAN: 4025515152712 | UPC: 887621053482
• RoHS Compliant: Since 05.12.2012 | WEEE: Take-back obligation applies
• REACH: Contains lead compounds above 0.1% w/w (safe when used as intended)
• Export Control: AL: N / ECCN: N
• Certifications: Industrial automation standards compliance
• Product Class: A - Standard stock item with return capability

Package Contents

• 1 × SIMATIC PM 1507 24V/8A Stabilized Power Supply, technical documentation, installation accessories
