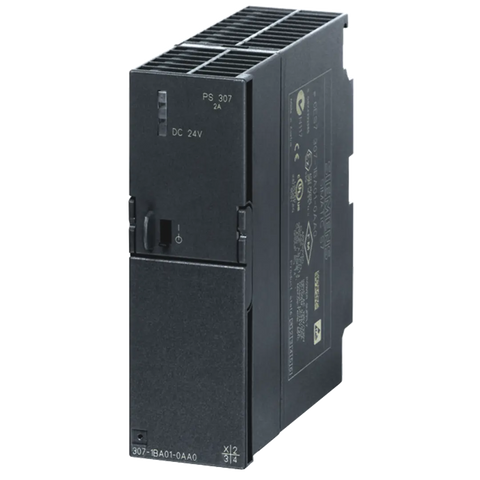

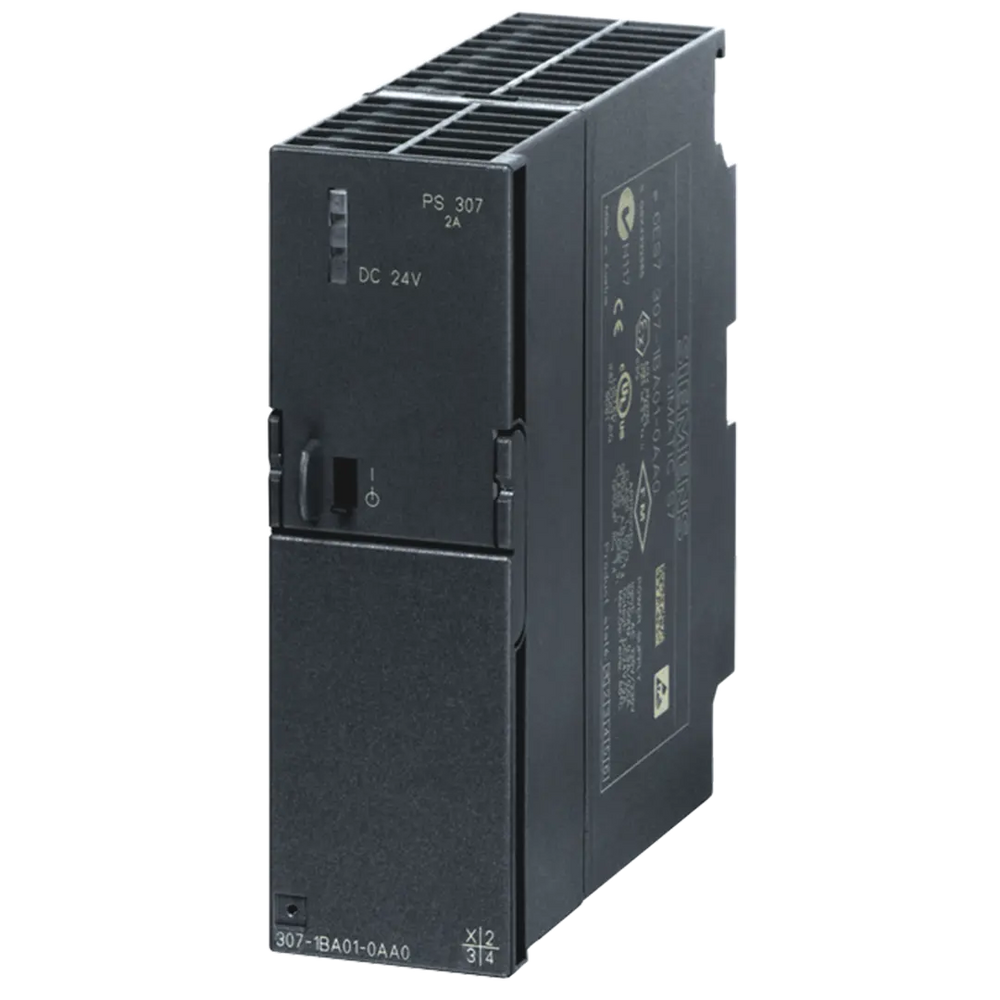

Siemens Regulated power supply PS307, 24VDC, 2A Part number 6ES7307-1BA01-0AA0

EAN / Barcode 4025515152460
Product Type Control Panel
Product Class DC-power supply
Category Power Supply
Sub-category Power Supply
ETIM Class DC-power supply
Back Order
💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD

Product Description

The design and functionality of the SIMATIC PS307 single-phase load power supply (system and load current supply) with automatic range switching of the input voltage are an optimal match to the SIMATIC S7-300 PLC. The supply to the CPU is quickly established by means of the connecting comb that is supplied with the system and load current supply. It is also possible to provide a 24 V supply to other S7-300 system components, input/output circuits of the input/output modules and, if necessary, the sensors and actuators.

Comprehensive certifications such as UL and GL enable universal use (does not apply to outdoor use).The system and load current supplies are screwed directly onto the S7-300 DIN rail and can be mounted directly to the left of the CPU (no installation clearance required). Diagnostics LED for indicating "Output voltage 24 V DC OK". ON/OFF switches (operation/stand-by) for possible swapping of modules Strain-relief assembly for input voltage connection cable.

Connection to all 1-phase 50/60 Hz networks (120 / 230 V AC) through automatic range switching (PS307) or manual switching (PS307, outdoor).

Technical Specifications

1st secondary output voltage24 V
Built-in height205 mm
Built-in width40 mm
Compliance/StandardsEN 60950-1, IEC 60721, EN 61000-6, EN 50178, EN 55022
country_of_originRomania
Degree of protection (IP)IP20
Depth120 mm
descriptionSIMATIC S7-300 Regulated power supply PS307 input: 120/230 V AC, output: 24 V DC/2 A
Height125 mm
IP RatingIP20
IP Rating DetailedIP20 EMC standard for emitted interference EN 55022 Class B for mains harmonics limitation not applicable for interference immunity EN 61000
Max. output current 12 A
Modular versionYes
Nominal value output current 12 A
Nominal value output voltage 124 V
Output voltage stabilizedYes
Part Depth (mm)5,00mm
Part Height (mm)13,00mm
Part Width (mm)17,00mm
Power output48 W
Rated supply voltage AC 50 Hz230 V
Rated supply voltage AC 60 Hz120 V
Short-circuit-proofYes
StabilizedYes
Type of electric connectionScrew connection
Voltage type (supply voltage)AC
Weight (g)0,300 Kg
Width40 mm
