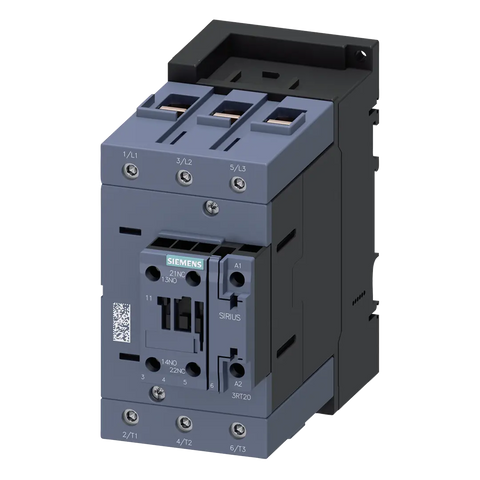

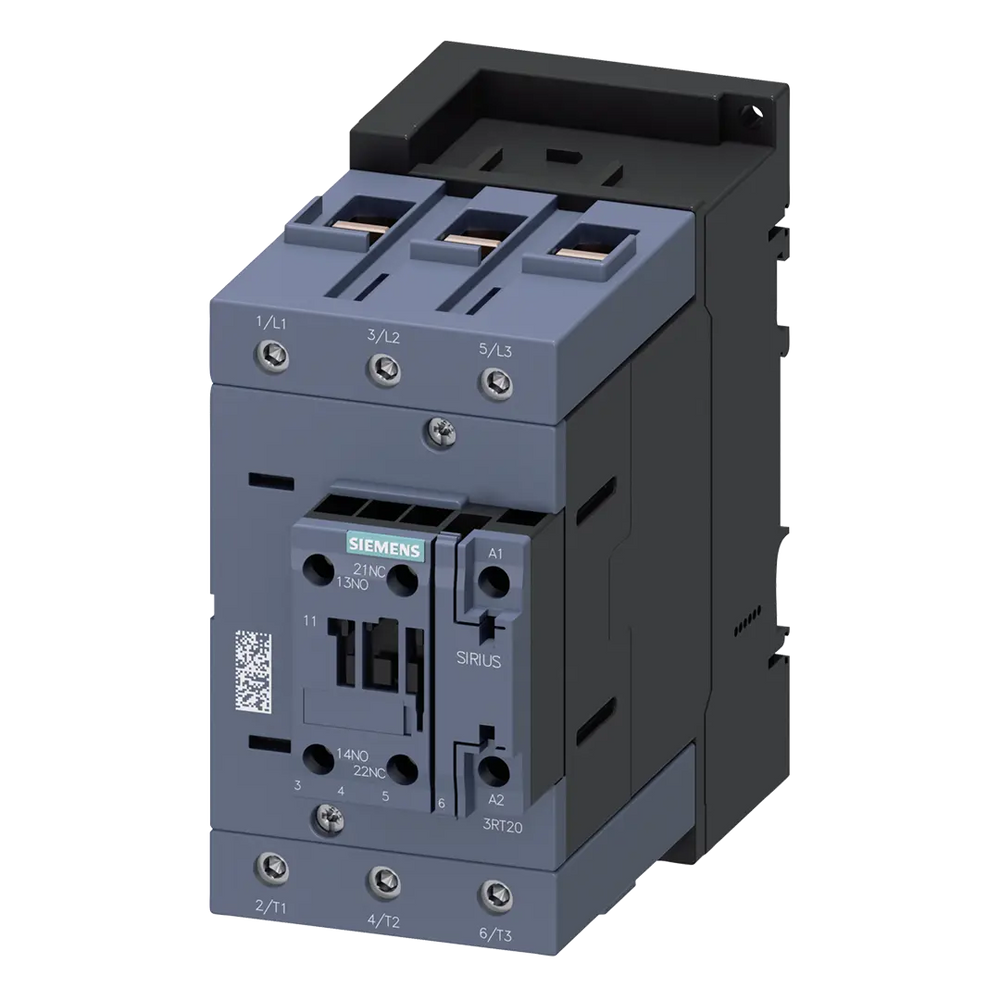

Siemens Power contactor, 3-pole, 230VAC, size S3, 37kW Part number 3RT2045-1AP00

EAN / Barcode 4047621018416
Product Type Control Panel
Product Class Power contactor, AC switching
Category Contactors and Motor Protection
Sub-category Contactor
ETIM Class Power contactor, AC switching
In Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
♻ EPD

Product Description

Power contactor, AC-3e/AC-3, 80 A, 37 kW / 400 V, 3-pole, 230 V AC, 50 Hz, auxiliary contacts: 1 NO + 1 NC, screw terminal, size: S3. Article Number: 3RT2045-1AP00.

Key Specifications

Electrical Ratings:

  • Current rating: 80 A (AC-3e/AC-3)
  • Power rating: 37 kW / 400 V
  • Control voltage: 230 V AC, 50 Hz
  • Poles: 3-pole
  • Auxiliary contacts: 1 NO + 1 NC

Construction Features:

  • Screw terminal connections
  • Frame size: S3
  • Suitable for industrial applications

Physical Specifications

  • Net weight: 3.779 lb
  • Packaging dimensions: 6.457 × 6.693 × 3.268 in
  • Country of origin: Germany

Product Identifiers

  • EAN: 4047621018416
  • UPC: 804766364440

Compliance Information

  • RoHS compliant since 03/01/2017
  • WEEE (2012/19/EU) Take-Back Obligation: Yes
  • Returnable: Yes

REACH Regulation Information There is currently no information on SVHC (Substances of Very High Concern) from the supply chain and established procedures for screening products for Substances of Very High Concern. Products are regularly compared with information from upstream users regarding substances indicated in the candidate list in accordance with REACH regulation requirements. Information will be updated as new findings become available.

Download existing graphical data for this product:

Product Datasheet

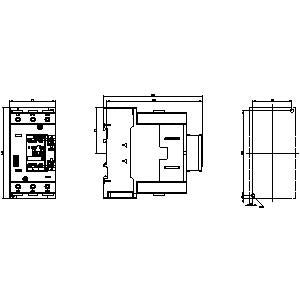

CAD Drawings & Technical Documentation

Certificates

Technical Specifications

Depth152 mm
Height140 mm
Modular versionYes
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as normally open contact1
Number of normally open contacts as main contact3
Operating voltage AC 50 Hz690 V
Operating voltage AC 60 Hz1000 V
Rated control supply voltage AC 50 Hz230 V
Rated operation current Ie at AC-1, 400 V125 A
Rated operation current Ie at AC-3, 400 V80 A
Rated operation current Ie at AC-4, 400 V66 A
Rated operation power at AC-3, 400 V37 kW
Rated operation power NEMA44.129928 kW
Type of electrical connection of main circuitScrew connection
Voltage type for actuatingAC
Width70 mm
Part Width164 mm
Part Height170 mm
Part Depth83 mm
Weight1714 g
Country of OriginGermany
View complete specifications on Siemens
