Product Overview

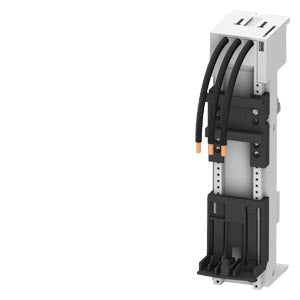

Device adapter S00/S0, 25 A, for 60 mm busbar system, 45x 200 mm long, special lines welded-on, AWG 12, 99 mm long spacer enclosed with product mounting rail screwed on. This high-performance busbar adapter is part of the SENTRON FASTBUS 8US busbar system, designed for safe, space-saving installation of protective devices such as fuse switch disconnectors and circuit breakers in modern distribution boards.

Key Features

Device Compatibility:

• Size S00/S0: Compatible with size S00 and S0 protective devices
• 25 A Rating: Rated for 25 ampere continuous current
• 690 VAC: Operating voltage up to 690 VAC
• Universal Mounting: Suitable for fuse switch disconnectors and circuit breakers

Busbar System:

• 60 mm Spacing: Designed for 60 mm busbar center-to-center spacing
• FASTBUS Technology: Mechanical fastening and electrical contacting in one operation
• Modular Design: Space-saving modular construction for efficient panel layouts
• Quick Assembly: Fast installation with pre-assembled components

Construction:

• Special Cables: 45 x 200 mm long special lines welded-on
• AWG 12 Wire: High-quality AWG 12 gauge conductors
• 99 mm Spacer: Included spacer for proper device positioning
• Mounting Rail: Pre-installed mounting rail screwed on

Technical Specifications

Electrical Characteristics:

• Rated Current: 25 A
• Operating Voltage: Up to 690 VAC
• Wire Gauge: AWG 12
• Connection Type: Welded special lines
• Insulation Class: Industrial grade

Physical Characteristics:

• Device Size: S00/S0 compatibility
• Cable Length: 45 x 200 mm
• Spacer Length: 99 mm
• Net Weight: 0.309 kg
• Packaging Dimensions: 98.00 x 220.00 x 71.00 mm

System Specifications:

• Busbar Spacing: 60 mm center-to-center
• System Type: 8US FASTBUS busbar system
• Mounting Type: Longitudinal rail mounting
• Assembly Method: Screw-on mounting rail

Materials:

• Conductor Material: High-grade copper
• Insulation Material: Industrial-grade polymer
• Housing Material: Flame-retardant thermoplastic
• Finish: Zinc-plated components for corrosion resistance

Standards and Compliance:

• RoHS Compliance: Yes, given compliance
• WEEE Take-Back Obligation: Yes
• Export Control: AL: N / ECCN: N
• Country of Origin: Germany

Product Information:

• EAN: 4011209841970
• Packaging Quantity: 1 piece
• Quantity Unit: 1 Piece

Applications

The SENTRON FASTBUS Device Adapter is ideal for:

• Distribution Boards: Modern electrical distribution panel construction
• Industrial Switchgear: Factory automation and control panels
• Power Distribution: Commercial and industrial power systems
• Motor Control Centers: Integration with motor control applications
• Building Services: Electrical installations in commercial buildings
• Process Control: Industrial process control and automation
• Machine Control: Equipment control and protection systems

System Integration

Compatible Devices:

• Fuse Switch Disconnectors: Size S00/S0 fuse switches
• Circuit Breakers: Miniature and molded case circuit breakers
• Motor Starters: Compact motor control devices
• Contactors: Size S00/S0 contactors and relays
• Protective Devices: Overload relays and protection modules

Busbar System Components:

• Busbars: 8US series copper busbars up to 1,600 A
• Supports: Longitudinal mounting supports and brackets
• Terminals: Various terminal blocks and connection systems
• Accessories: Covers, labels, and identification systems

Installation Benefits

FASTBUS Advantages:

• One-Step Installation: Mechanical fastening and electrical contacting simultaneously
• Time Savings: Reduced installation time compared to traditional methods
• Cost Reduction: Lower installation costs through efficient design
• High Safety: Finger-safe adapter and device holder covers
• Easy Replacement: Simple device replacement without rewiring

System Benefits:

• Space-Saving: Compact design maximizes panel space utilization
• Modular Construction: Flexible system configuration options
• Clear Layout: Organized, professional panel appearance
• Worldwide Approval: Global certifications for international use

Technical Advantages

Electrical Performance:

• Reliable Connections: Welded conductors eliminate connection failures
• Low Resistance: Optimized current paths for minimal voltage drop
• High Current Capacity: 25 A continuous rating for demanding applications
• Voltage Range: Suitable for various voltage levels up to 690 VAC

Mechanical Features:

• Robust Construction: Industrial-grade materials for long service life
• Secure Mounting: Screw-on mounting rail ensures stable installation
• Precision Fit: Exact dimensional compatibility with S00/S0 devices
• Maintenance Access: Easy access for inspection and maintenance

Quality and Reliability

Manufacturing Standards:

• German Engineering: Manufactured in Germany to highest standards
• Quality Control: Rigorous testing and inspection processes
• Worldwide Approval: Global certifications and approvals
• Proven Technology: Field-tested FASTBUS technology

Long-Term Benefits:

• High Operational Safety: Reliable operation in demanding environments
• Maintenance-Free: Minimal maintenance requirements
• Future-Proof: Compatible with evolving electrical standards
• Cost-Effective: Reduced lifecycle costs through reliable operation

REACH Compliance

Currently, there is no information on SVHC (Substances of Very High Concern) from the supply chain. Products are regularly compared with the REACH candidate list, and information will be updated as new findings become available.
