Product Overview

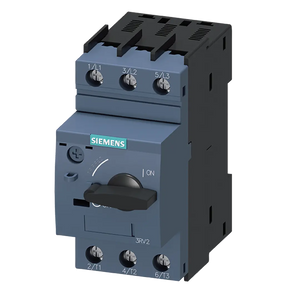

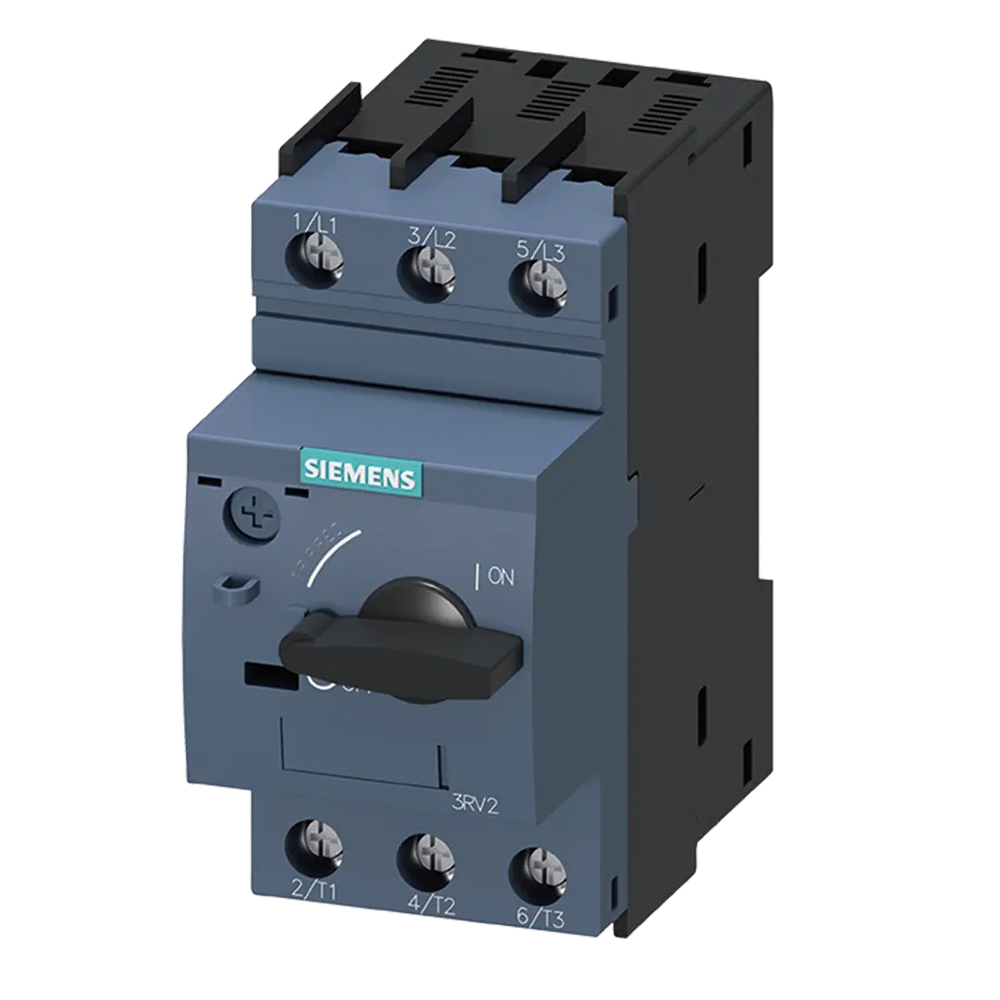

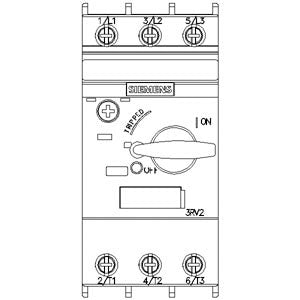

The 3RV2011-1GA10 is a precision-engineered circuit breaker designed for motor protection applications. This size S00 device offers reliable overload and short-circuit protection with a CLASS 10 A-release rating of 4.5...6.3 A and N-release of 82 A, featuring screw terminal connections and standard switching capacity.

Key Features

Circuit Protection: Provides comprehensive motor protection with integrated overload and short-circuit releases, ensuring safe operation and equipment longevity.

Compact Design: Size S00 form factor (45mm width) offers space-efficient installation while maintaining full protection capabilities.

Versatile Applications: Suitable for motor protection, system protection, and various industrial control applications up to 690V AC.

Easy Installation: Standard DIN rail mounting with screw terminal connections supports conductors from 0.75 to 2.5 mm² (solid and stranded).

Reliable Performance: CLASS 10 tripping characteristics ensure consistent protection according to IEC 60947-4-1 standards.

Technical Specifications

Electrical Ratings:

• Rated current: 4.5...6.3 A (adjustable)
• Rated operational voltage: Up to 690V AC
• Short-circuit breaking capacity: 100 kA at 400V AC
• Rated frequency: 50/60 Hz
• Protection class: IP20

Physical Characteristics:

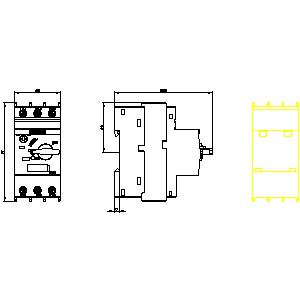

• Dimensions: 45 x 97 x 91 mm (W x H x D)
• Weight: 0.352 kg
• Terminal type: Screw terminals (M3)
• Tightening torque: 0.8-1.2 Nm
• Country of origin: Germany

Environmental Specifications:

• Operating temperature: -20°C to +60°C
• Storage temperature: -50°C to +80°C
• Altitude: Up to 2000m
• Pollution degree: 2

Standards and Certifications

• IEC 60947-1, IEC 60947-2 - Low-voltage switchgear standards
• IEC 60947-4-1 - Motor starter protector requirements
• UL 60947-4-1 (UL 508) - North American safety standards
• RoHS Compliant - Environmental compliance since 01.10.2009
• CE Marking - European conformity

Applications

Motor Protection: Ideal for protecting three-phase motors in industrial applications, providing both overload and short-circuit protection in a single device.

System Integration: Compatible with SIRIUS modular system components including contactors, overload relays, and soft starters for complete motor control solutions.

Industrial Controls: Suitable for use in control panels, distribution boards, and industrial automation systems requiring reliable motor protection.

Installation and Mounting

Mounting Options:

• 35mm DIN rail mounting (standard)
• Screw mounting on mounting plate
• Compatible with standard control cabinet installations

Connection System:

• Screw terminal technology for reliable connections
• Supports up to 2 x 2.5 mm² conductors
• AWG wire support: 2 x (18 to 14), 2 x 12

Clearance Requirements:

• Minimum clearance from live parts: 30mm (sides), 9mm (front/back)
• Suitable for side-by-side mounting with appropriate spacing

Accessories and Options

Available Accessories:

• Auxiliary switches (lateral and transverse mounting)
• Signaling switches for remote monitoring
• Auxiliary releases (undervoltage and shunt)
• Terminal blocks and phase barriers
• Enclosures for surface and flush mounting

System Compatibility:

• Direct mounting with SIRIUS contactors via link modules
• Integration with 3-phase busbar systems
• Compatible with door-coupling rotary operating mechanisms
