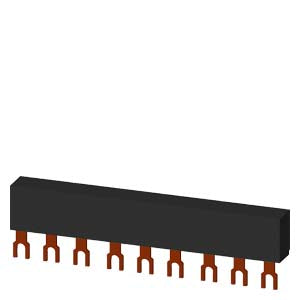

Siemens Busbar, 3-phase, 45mm modular spacing

Product Overview

The 3RV1915-1BB is a 3-phase busbar system designed with modular spacing of 45 mm for connecting 3 motor starter protectors, featuring fork shape connections for reliable power distribution. This insulated busbar accessory provides a straightforward, time-saving solution for supplying power to SIRIUS 3RV motor starter protectors with screw terminals in side-by-side mounting configurations on DIN rails.

Key Features

• Modular Spacing: 45 mm center-to-center spacing for standard installations
• Capacity: Designed for 3 motor starter protectors (Size S00/S0)
• Connection Type: Fork shape connections for secure electrical contact
• Insulation: Fully insulated 3-phase busbar system with touch protection
• Compatibility: Compatible with 3RV motor starter protectors with screw terminals
• Mounting: DIN rail mounting system
• Material: High-quality busbar material for reliable conductivity
• Safety: Finger-safe shock protection design
• Installation: Tool-free installation and connection
• Rated Current: 63 A at 690 V
• Short-Circuit Resistant: Designed to withstand motor starter protector short-circuit levels
• Weight: 0.069 kg
• Dimensions: Compact design for space-efficient installations

Technical Specifications

• Voltage Rating: Up to 690 V AC
• Current Rating: 63 A maximum
• Frequency Rating: 50/60 Hz
• Number of Positions: 3 switch positions
• Busbar Material: Copper conductor with insulation
• Connection System: Fork-type connections
• Mounting Method: DIN rail compatible
• Operating Temperature: Standard industrial temperature range
• Degree of Protection: Touch-safe design
• Standards Compliance: IEC industrial standards
• Installation Type: Side-by-side motor starter protector mounting
• Extension Capability: Can be extended with additional busbar sections

Applications

The 3RV1915-1BB is ideal for power distribution in motor control centers, industrial automation panels, and electrical control systems where multiple motor starter protectors need to be fed from a common power source. It provides efficient power distribution for three motor protection devices in applications such as conveyor systems, pump stations, HVAC equipment, manufacturing machinery, and process control installations requiring organized and space-efficient motor starter protector arrangements.

Operation

The busbar system provides a common power supply to three motor starter protectors through fork-shaped connections that ensure reliable electrical contact. Power is distributed through the insulated copper busbars to each connected motor starter protector position. The 45mm modular spacing allows for standard side-by-side mounting of SIRIUS motor starter protectors. Installation involves mounting the busbar on DIN rail and connecting the motor starter protectors to the fork connections, eliminating the need for individual power wiring to each device.

Product Information

• Net Weight: 0.069 kg
• Packaging Dimensions: 33.00 x 130.00 x 14.00 mm
• EAN: 4011209504622
• UPC: 754554738024
• Country of Origin: China
• Product Class: Standard product, stock item

Compliance & Environmental

• RoHS Compliance: Yes (since 01.07.2006)
• IEC Rating: Yes
• WEEE Take-Back: Yes (2012/19/EU)
• REACH Article 33: Regular screening for substances of very high concern
• Export Control: AL: N / ECCN: N
• International Standards: IEC industrial standards for busbar systems

Download existing graphical data for this product:

• Technical Data Sheet
• CAx Data & 3D Models
• Equipment Manual

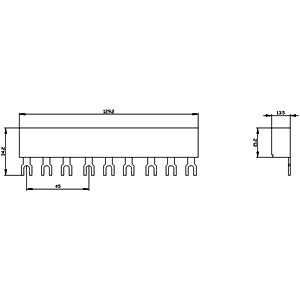

• Dimension Drawings
