Product Overview

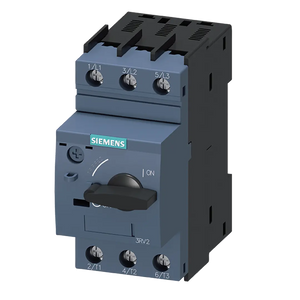

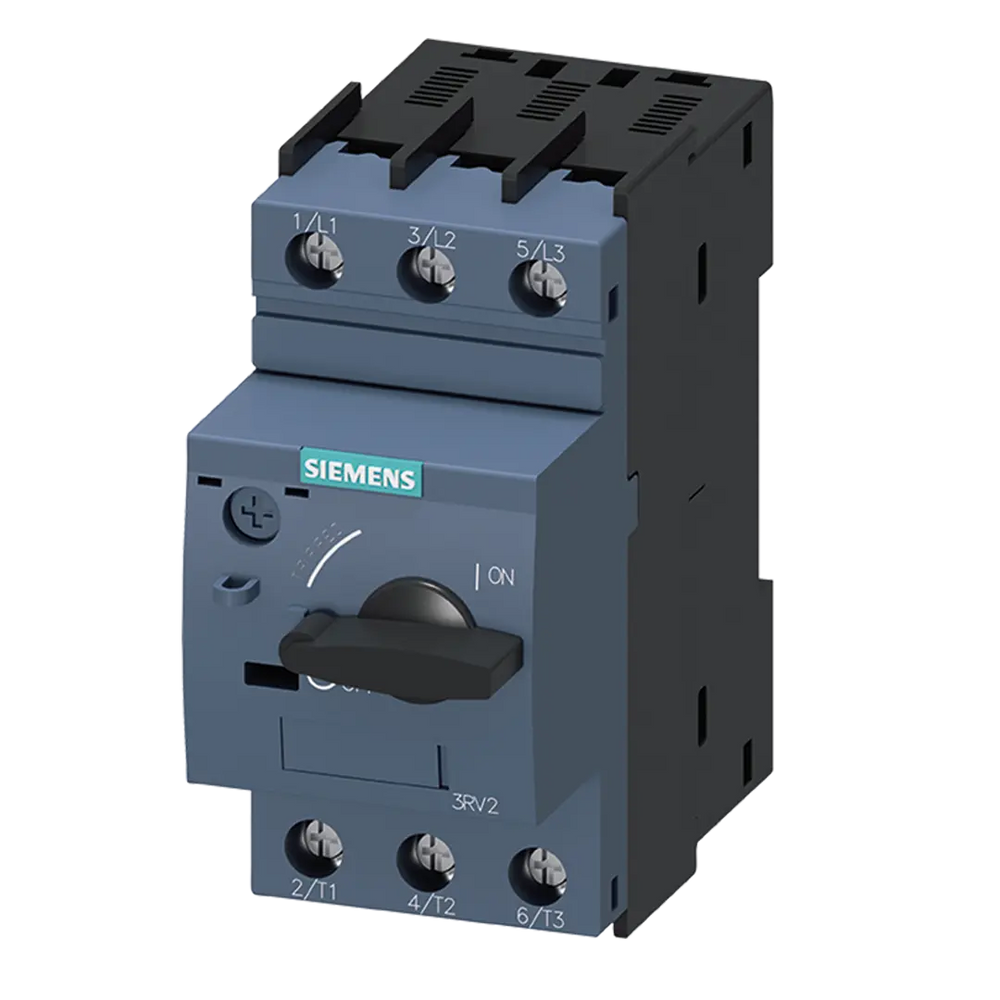

The 3RV2011-1JA10 is a robust circuit breaker engineered for motor protection applications requiring higher current ratings. This size S00 device delivers reliable overload and short-circuit protection with a CLASS 10 A-release rating of 7...10 A and enhanced N-release of 130 A, featuring screw terminal connections and standard switching capacity for demanding industrial applications.

Key Features

Enhanced Circuit Protection: Provides comprehensive motor protection with integrated overload and short-circuit releases, designed for higher current applications while maintaining compact S00 form factor.

Higher Current Rating: 7...10 A adjustable overload release with robust 130 A short-circuit release capacity, ideal for larger motors and high-performance applications.

Reliable Screw Terminals: Proven screw terminal technology ensures secure, long-lasting electrical connections with easy maintenance and inspection capabilities.

Compact Design: Size S00 form factor (45mm width) maximizes space efficiency while providing enhanced protection for motors up to 10A rating.

Industrial Grade Construction: Built for demanding industrial environments with superior reliability and consistent performance characteristics.

Technical Specifications

Electrical Ratings:

• Rated current: 7...10 A (adjustable)
• Short-circuit release: 130 A
• Rated operational voltage: Up to 690V AC
• Short-circuit breaking capacity: 100 kA at 400V AC
• Rated frequency: 50/60 Hz
• Tripping class: CLASS 10 (IEC 60947-4-1)

Physical Characteristics:

• Dimensions: 45 x 97 x 91 mm (W x H x D)
• Weight: 0.351 kg
• Terminal type: Screw terminals (M3)
• Tightening torque: 0.8-1.2 Nm
• Protection rating: IP20
• Country of origin: Germany

Connection Specifications:

• Conductor capacity: 2 x (0.75 to 2.5) mm² (solid and stranded)
• Maximum: 2 x 4 mm²
• AWG wire support: 2 x (18 to 14), 2 x 12
• Finely stranded with end sleeve: 2 x (0.5 to 2.5) mm²

Environmental Specifications:

• Operating temperature: -20°C to +60°C (with derating above 60°C)
• Storage temperature: -50°C to +80°C
• Installation altitude: Up to 2000m
• Pollution degree: 2
• Humidity: 95% relative humidity (non-condensing)

Standards and Certifications

• IEC 60947-1, IEC 60947-2 - Low-voltage switchgear and controlgear standards
• IEC 60947-4-1 - Motor starter protector requirements
• UL 60947-4-1 (UL 508) - North American safety standards
• CSA C22.2 No. 14 - Canadian safety standards
• RoHS Compliant - Environmental compliance since 01.10.2009
• CE Marking - European conformity declaration
• WEEE Directive - Take-back obligation compliance

Applications

Higher Current Motor Protection: Specifically designed for protecting three-phase motors with ratings from 7-10A, providing both overload and short-circuit protection in demanding industrial applications.

Industrial Automation: Ideal for use in manufacturing equipment, conveyor systems, pumps, and other industrial machinery requiring reliable motor protection at higher current levels.

Control Panel Integration: Perfect for integration into control panels and distribution boards where space is limited but higher current protection is required.

System Protection: Suitable for protecting electrical systems and equipment in industrial environments with appropriate load balancing.

Installation and Mounting

Mounting Options:

• Standard 35mm DIN rail mounting
• Screw mounting on mounting plate with optional push-in lugs
• Compatible with standard industrial control cabinet installations

Clearance Requirements:

• Minimum clearance from live parts: 30mm (lateral), 9mm (front/back)
• Suitable for side-by-side mounting with appropriate spacing
• Stand-alone or side-by-side design configurations available

Operating Conditions:

• Mounting position: Any orientation
• Ambient temperature derating required above 60°C
• Suitable for indoor installation in enclosed spaces

Accessories and Compatibility

Available Accessories:

• Lateral auxiliary switches (1 NO+1 NC, 2 NO, 2 NC contacts)
• Transverse auxiliary switches (1 CO, 1 NO+1 NC, 2 NO contacts)
• Signaling switches for remote status monitoring
• Auxiliary releases (undervoltage and shunt releases)
• Sealable cover for setting protection
• Terminal blocks and phase barriers

System Integration:

• Compatible with SIRIUS modular system components
• Direct mounting capability with contactors via link modules
• Integration with 3-phase busbar systems (3RV1915 series)
• Compatible with door-coupling rotary operating mechanisms
• Suitable for 3RV2917 infeed system integration

Enclosure Options:

• Surface-mounting enclosures (IP55/IP65)
• Flush-mounting enclosures (IP55 front, IP20 rear)
• Front plates for custom panel integration
• Cast aluminum and molded plastic enclosure variants

Download existing graphical data for this product:

Technical Documentation:

• Product Datasheet
• Installation Manual
• Circuit Diagrams

CAD and Engineering Data:

• 3D Models and CAD Files

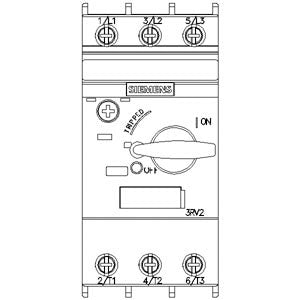

• Dimensional Drawings
