Siemens

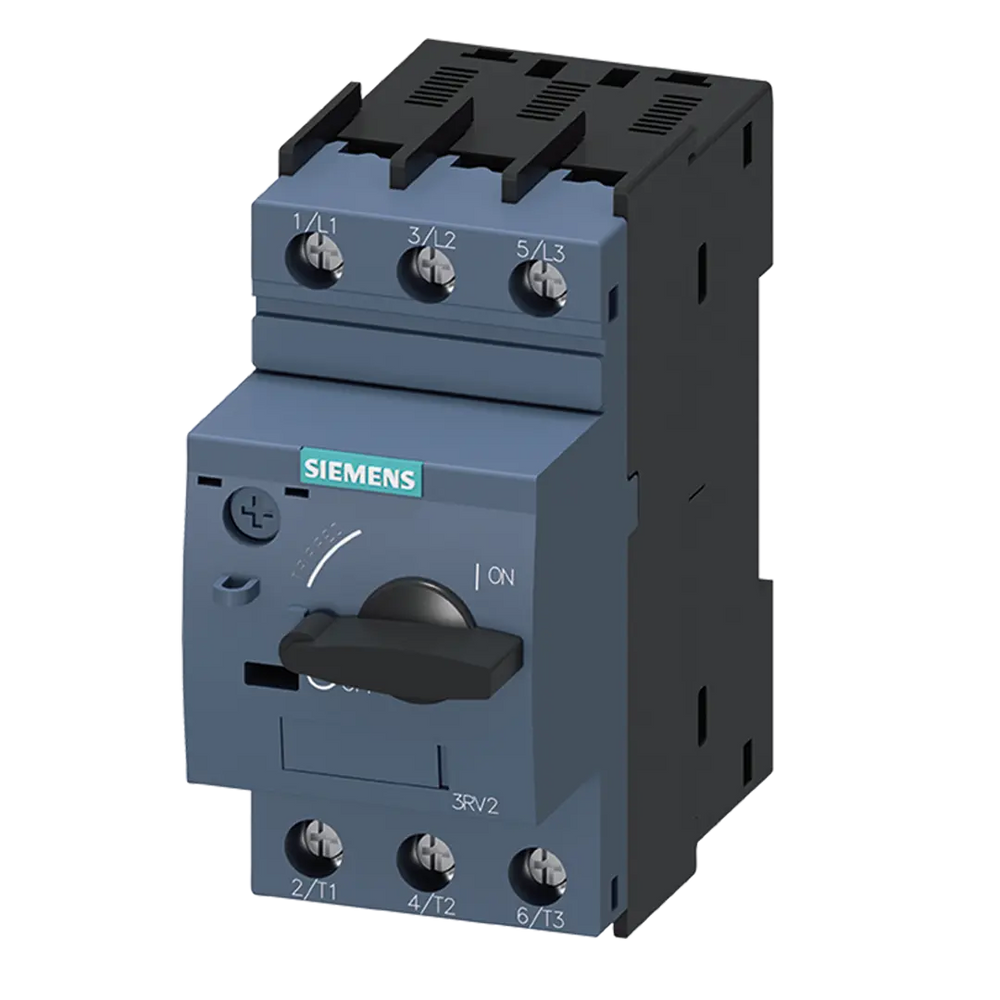

Siemens Circuit breaker for motor protection, size S00, 26A

SKU / Article No. 3RV2011-1BA10
Product Type Control Panel
Product Class Motor protection circuit-breaker
Category Power Distribution
Sub-category Circuit Breaker
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

This circuit breaker provides motor protection with an overload release of 1.4-2 A and a short-circuit release of 26 A, ensuring safe operation for small motors and applications.

Technical Specifications

IP Rating / DetailedIP20
Temperature: Operating-20°C to 60°C
Part Depth (mm)97mm
Part Width (mm)45mm
Part Height (mm)97mm
Weight (g)344g
Packaging size / unit1
Tightening Torque0.8 - 1.2 N·m
Screw TypeDiameter 5 to 6 mm / Pozidriv size 2
Connection Stylescrew-type terminals
Voltage Frequency Range50 / 60 Hz
Mounting TypeScrew and snap-on mounting onto 35 mm DIN rail according to DIN EN 60715
Current Rating / Rated Current2 A
Operating PeriodProduct Lifecycle - PM300:Active Product
View complete specifications on Siemens
