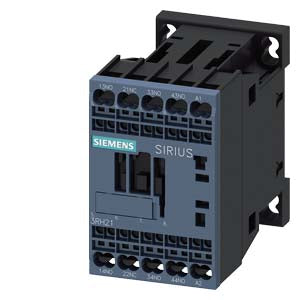

Siemens Contactor relay, spring, size, S00, 3NO+1NC, 110VAC
View on Siemens 📄 Datasheet
Siemens

Siemens Contactor relay, spring, size, S00, 3NO+1NC, 110VAC Part number 3RH2131-2AF00

EAN / Barcode 4011209847613
Product Type Control Panel
Product Class Contactor relay
ETIM Class Contactor relay
In Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD

Product Description

Contactor Relay

The SIRIUS 3RH2 contactor relay is designed for switching control signals in control circuits.

Technical details:

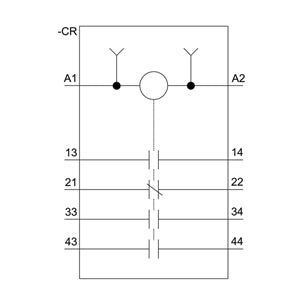

  • 3 NO + 1 NC
  • 110 V AC
  • 50/60 Hz
  • Spring-loaded terminal
  • Frame size S00
  • Standard-compliant terminal designations
  • Positively driven operation available for safety applications
  • SUVA versions available
  • Climate-resistant
  • High contact reliability
  • Suitable for worldwide use with approvals (e.g. IEC and UL/CSA)
  • Available with AC or DC operation
  • 4-pole design extendable up to 8 poles with snap-on auxiliary switches
  • Compatible with extensive range of accessories for 3RT2 contactors in sizes S00 to S3
  • Replaces the 3RH1 series
  • SIRIUS modular system

Customer benefits:

  • Reliable and time-saving connection technology
  • Simultaneous switching of several auxiliary circuits possible
  • Simple and efficient design
  • Always up to date with modular system approach

Technical Specifications

Compliance/StandardsIEC 61508-2, IEC 61508, IEC 60529, IEC 60947-5, IEC 60068-2, IEC 81346-2
Connection type auxiliary circuitSpring clamp connection
country_of_originGermany
Depth73 mm
descriptioncontactor relay, 3 NO + 1 NC, 110 V AC, 50/60 Hz, spring-loaded terminal, frame size S00
Height70 mm
IP RatingIP20
IP Rating DetailedIP20 touch protection on the front according to IEC 60529 finger
Mounting methodScrew
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as normally open contact3
Part Depth (mm)77,50mm
Part Height (mm)73,50mm
Part Width (mm)50,00mm
Rated control supply voltage AC 50 Hz110 V
Rated control supply voltage AC 60 Hz110 V
Rated operation current Ie, 400 V3 A
Type of VoltageAC
Voltage type for actuatingAC
Weight (g)0,254 Kg
Width45 mm
View complete specifications on Siemens
