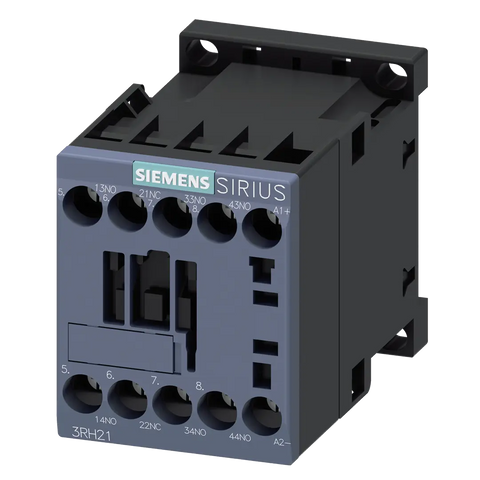

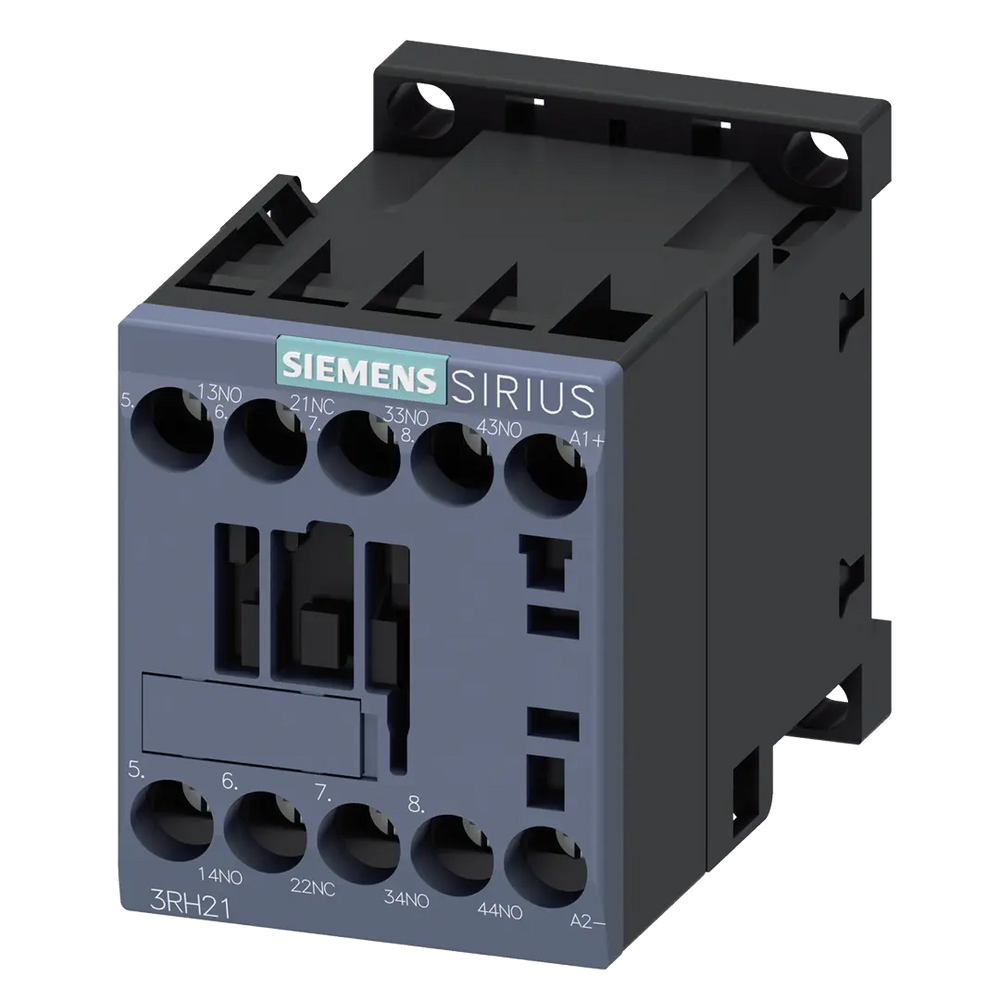

Siemens Contactor relay, screw, 3NO + 1NC, size S00, 24VDC

SKU / Article No. 3RH2131-1BB40
Product Type Control Panel
Category Contactors and Motor Protection
Sub-category Contactor
In Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

Product Overview

Contactor relay featuring 3 NO (normally open) + 1 NC (normally closed) contacts with 24 V DC operating voltage, screw terminal connections, and frame size S00. This SIRIUS 3RH2 contactor relay is designed for reliable switching of control signals in control circuits and provides multiplication of outputs for simultaneous switching of multiple auxiliary circuits.

Key Specifications:

Electrical Characteristics:

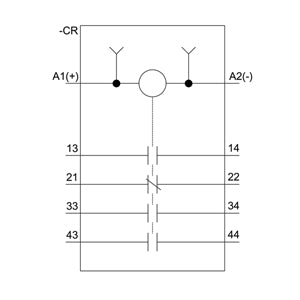

  • Contact Configuration: 3 NO + 1 NC
  • Operating Voltage: 24 V DC
  • Frame Size: S00
  • Connection Type: Screw terminal

Physical Characteristics:

  • Net Weight: 0.270 kg
  • Packaging Dimensions: 50.00 x 61.50 x 77.50 mm
  • Packaging Quantity: 1 piece

Product Details:

  • Article Number: 3RH2131-1BB40
  • EAN: 4011209848450
  • UPC: 662643906288
  • Country of Origin: Germany
  • Product Lifecycle: PM300 Active Product

Features:

  • SIRIUS 3RH2 contactor relay for control signal switching
  • Standard-compliant terminal designations
  • Reliable and time-saving connection technology
  • Multiplication of outputs capability
  • Simultaneous switching of several auxiliary circuits

Compliance & Standards:

  • RoHS Compliant: Since 01.10.2009
  • WEEE Take-Back Obligation: Yes
  • Export Control: AL: N / ECCN: N

Product Classification:

  • eClass: 27-37-10-01
  • ETIM: EC000196
  • UNSPSC: 39-12-15-29

Download existing graphical data for this product:

Product Datasheet (PDF)

Technical Specifications

IP RatingIP20
Country of OriginGermany
Temperature: Operating-25°C to 60°C
Part Depth (mm)73mm
Part Width (mm)45mm
Part Height (mm)57.5mm
Connection Style3 NO + 1 NC
Connection Typescrew-type terminals
Max Frequency1 000 1/h
Type of VoltageDC
Supply Voltage24 VDC
Mounting TypeScrew and snap-on mounting onto 35 mm DIN rail
Current Rating / Rated Current0.1 - 10 A
Operating Period10 000 000 cycles (of the contactor with added auxiliary switch block typical) / 5 000 000 cycles (of the contactor with added electronically optimized\nauxiliary switch block typical) / 30 000 000 cycles (of contactor typical ) (Mechanical)
