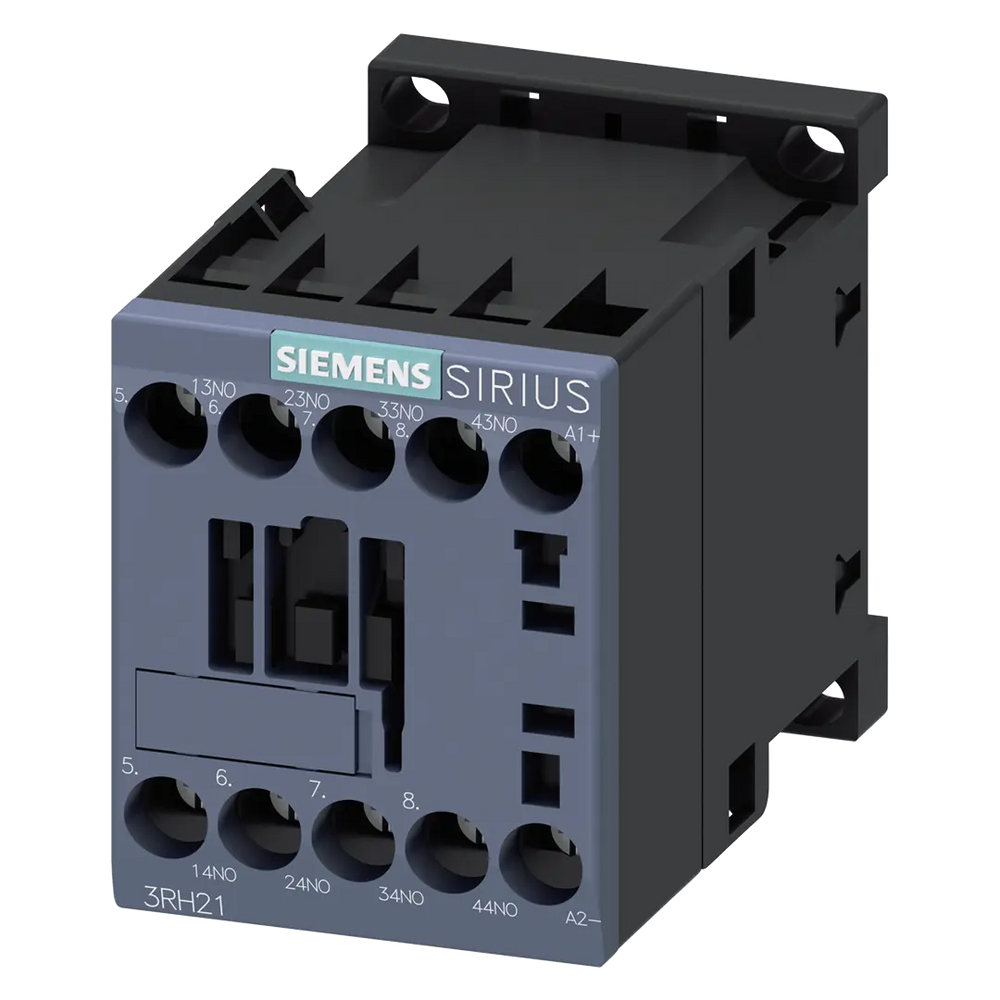

Siemens Contactor relay, screw, size S00, 4NO, 24VDC Part number 3RH2140-1BB40

EAN / Barcode 4011209828612
Product Type Control Panel
Product Class Contactor relay
Category Contactors and Motor Protection
Sub-category Contactor
ETIM Class Contactor relay
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD

Product Description

Contactor relay

The SIRIUS 3RH2 contactor relay is designed for switching control signals in control circuits.

Technical details:

  • 4 NO
  • 24 V DC
  • Screw terminal
  • Frame size S00
  • Climate-resistant
  • High contact reliability
  • Suitable for use worldwide
  • Available with AC or DC operation
  • Available with screw or spring-loaded terminals
  • 4-pole design, extendable to 8 poles
  • Compatible with extensive range of accessories for 3RT2 contactors in sizes S00 to S3
  • Replaces the well-proven 3RH1 series

Customer benefits:

  • Standard-compliant terminal designations
  • Reliable and time-saving connection technology
  • Simultaneous switching of several auxiliary circuits
  • Positively driven operation available for safety applications
  • SUVA versions available
  • Simple, efficient, and always up to date with SIRIUS modular system

Technical Specifications

Connection Style4 NO
Connection Typescrew-type terminals
Connection type auxiliary circuitScrew connection
Current Rating / Rated Current0.1 - 10 A
Depth73 mm
Height57.5 mm
IP RatingIP20
Max Frequency1 000 1/h
Mounting methodScrew
Mounting TypeScrew and snap-on mounting onto 35 mm DIN rail
Number of auxiliary contacts as normally open contact4
Operating Period10 000 000 cycles (of the contactor with added auxiliary switch block typical) / 5 000 000 cycles (of the contactor with added electronically optimized auxiliary switch block typical) / 30 000 000 cycles (of contactor typical ) (Mechanical)
Part Depth (mm)73mm
Part Height (mm)57.5mm
Part Width (mm)45mm
Rated control supply voltage DC24 V
Rated operation current Ie, 400 V3 A
Supply Voltage24 VDC
Temperature: Operating-25°C to 60°C
Type of VoltageDC
Voltage type for actuatingDC
Width45 mm
Country of OriginGermany
View complete specifications on Siemens

Videos & Media

Product Overview

Overview, features and application examples

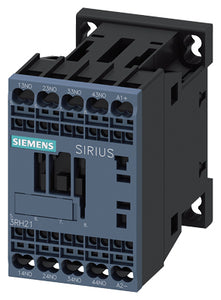

More in Contactor
