Siemens Contactor relay, size S00, screw, 3NO + 1NC, 110VAC
View on Siemens 📄 Datasheet
Siemens

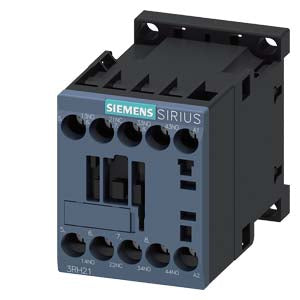

Siemens Contactor relay, size S00, screw, 3NO + 1NC, 110VAC Part number 3RH2131-1AF00

EAN / Barcode 4011209847576
Product Type Control Panel
Product Class Contactor relay
ETIM Class Contactor relay
In Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD

Product Description

Contactor relay

The SIRIUS 3RH2 contactor relay is designed for switching control signals in the control circuit.

Technical details:

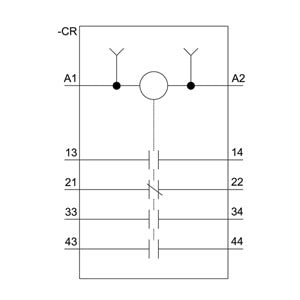

  • 3 NO + 1 NC
  • 110 V AC
  • 50/60 Hz
  • Screw terminal
  • Frame size S00

Customer benefits:

  • Standard-compliant terminal designations and reliable, time-saving connection technology.
  • Allows simultaneous switching of several auxiliary circuits due to the multiplication of outputs.
  • Positively driven operation contacts available for safety applications.
  • Climate-resistant and high contact reliability.
  • Suitable for use worldwide with corresponding approvals (e.g. IEC and UL/CSA).
  • 4-pole design extendable up to 8 poles with snap-on auxiliary switches.
  • Extensive range of accessories compatible with S00 to S3 sizes.
  • Replaces the well-proven 3RH1 series.
  • Part of the simple, efficient, and always up-to-date SIRIUS modular system.

Technical Specifications

Compliance/StandardsIEC 61508-2, IEC 61508, IEC 60529, IEC 60947-5, IEC 60068-2, IEC 81346-2
Connection type auxiliary circuitScrew connection
country_of_originGermany

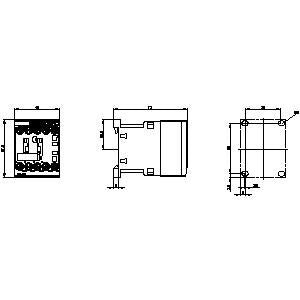

Depth73 mm
descriptioncontactor relay, 3 NO + 1 NC, 110 V AC, 50/60 Hz, screw terminal, frame size S00
Height57.5 mm
IP RatingIP20
IP Rating DetailedIP20 touch protection on the front according to IEC 60529 finger
Mounting methodScrew
Number of auxiliary contacts as normally closed contact1
Number of auxiliary contacts as normally open contact3
Part Depth (mm)77,50mm
Part Height (mm)61,50mm
Part Width (mm)50,00mm
Rated control supply voltage AC 50 Hz110 V
Rated control supply voltage AC 60 Hz110 V
Rated operation current Ie, 400 V3 A
Type of VoltageAC
Voltage type for actuatingAC
Weight (g)0,231 Kg
Width45 mm
View complete specifications on Siemens
