Siemens Contactor relay, size S00, screw, 4NO, 230VDC
View on Siemens 📄 Datasheet
Siemens

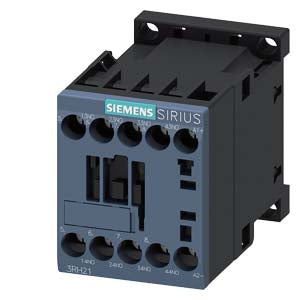

Siemens Contactor relay, size S00, screw, 4NO, 230VDC Part number 3RH2140-1BP40

EAN / Barcode 4011209896376
Product Type Control Panel
Product Class Contactor relay
ETIM Class Contactor relay
In Stock
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available
✓ RoHS Declaration♻ EPD

Product Description

Contactor relay

The SIRIUS 3RH2 contactor relay is designed for switching control signals in control circuits.

Technical details:

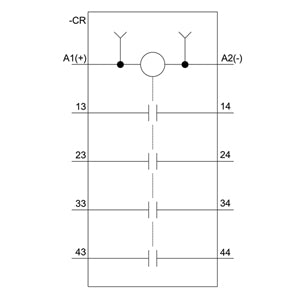

  • Type: 4 NO
  • Voltage: 230 V DC
  • Terminal: screw terminal
  • Frame size: S00
  • Standard compliance: IEC and UL/CSA
  • Operating version: AC or DC
  • Design: 4-pole, extendable up to 8 poles with snap-on auxiliary switches

Customer benefits:

  • Reliable and time-saving connection technology with standard-compliant terminal designations.
  • Multiplication of outputs allows for simultaneous switching of several auxiliary circuits.
  • Available with positively driven operation for safety applications and SUVA versions.
  • Climate-resistant and high contact reliability, suitable for worldwide use.
  • Extensive range of accessories compatible with 3RT2 contactors in sizes S00 to S3.
  • Replaces the well-proven 3RH1 series.
  • Part of a simple, efficient, and up-to-date SIRIUS modular system.

Technical Specifications

Compliance/StandardsIEC 61508-2, IEC 61508, IEC 60529, IEC 60947-5, IEC 60068-2, IEC 81346-2
Connection type auxiliary circuitScrew connection
country_of_originGermany

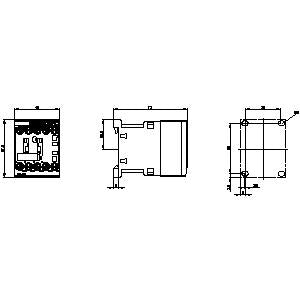

Depth73 mm
descriptioncontactor relay, 4 NO, 230 V DC, screw terminal, frame size S00
Height57.5 mm
IP RatingIP20
IP Rating DetailedIP20 touch protection on the front according to IEC 60529 finger
Mounting methodScrew
Number of auxiliary contacts as normally open contact4
Part Depth (mm)77,50mm
Part Height (mm)61,50mm
Part Width (mm)50,00mm
Rated control supply voltage DC230 V
Rated operation current Ie, 400 V3 A
Type of VoltageDC
Voltage type for actuatingDC
Weight (g)0,310 Kg
Width45 mm
View complete specifications on Siemens
