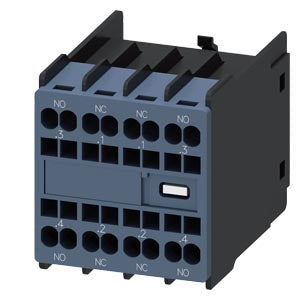

Siemens Auxiliaryswitch block, spring-loaded, 4-pole, 2NO+2NC Part number 3RH2916-2FA22

auxiliary switch, on the front, 2 NO + 2 NC, .3/.4, .1/.2, .1/.2, .3/.4, current path: 1 NO, 1 NC, 1 NC, 1 NO, spring-loaded terminal, for contactors 3RT2 and contactor relays 3RH2 auxiliary switch SIRIUS 3RH29 for the expansion of auxiliary contacts in the control circuit. The front-mounted 3RH29 auxiliary switches can be installed on 3RT2 contactors and 3RH2 contactor relays without the need for tools, regardless of size. The 3RH19/3RH29 auxiliary switches are available as versions for front or lateral mounting, with up to four instantaneous contacts or up to two leading NO and NC contacts. The auxiliary switches can be designed as positively driven contacts in 3RH contactor relaysor also as mirror contacts in the case of 3RT power contactors. All of them are available with screw terminal and spring-type terminal. Simple, efficient and always up to date - SIRIUS modular system.

• Number of contacts as change-over contact: 0
• Number of contacts as normally closed contact: 2
• Mounting method: Other
• Number of contacts as normally open contact: 2
• Rated operation current Ie at AC-15, 230 V: 6 A
• Number of fault-signal switches: 0
• Type of electric connection: Spring clamp connection
