Product Overview

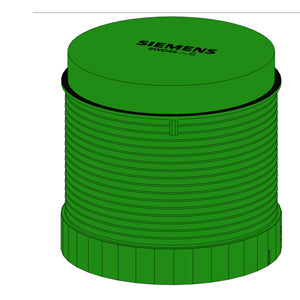

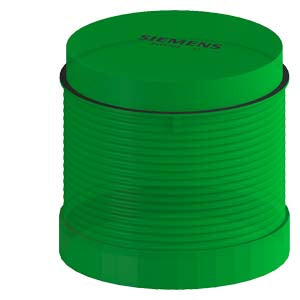

Continuous light element, with integrated LED, green, 230 V AC, Diameter 70 mm. This high-performance LED light element is designed for use in SIRIUS 8WD4 modular signaling columns, providing reliable and energy-efficient visual signaling for industrial automation and process control applications.

Key Features

LED Technology:

• Integrated LED technology for energy efficiency
• Green color for standard status indication
• Continuous light operation for constant signaling
• Long service life and low maintenance requirements

Electrical Specifications:

• Supply Voltage: 230 V AC
• LED Type: Integrated high-efficiency LEDs
• Light Mode: Continuous light (steady illumination)
• Color: Green for standard operational status

Physical Characteristics:

• Diameter: 70 mm standard industrial size
• Mounting: Bayonet mechanism for easy installation
• Construction: Rugged industrial-grade materials
• Protection Class: High degree of protection for industrial use

Technical Specifications

Optical Characteristics:

• Light Source: Integrated LED technology
• Color: Green (standard operational indication)
• Light Distribution: Optimized with multiple LEDs per module
• Visibility: 360-degree visibility for maximum coverage
• Light Mode: Continuous light operation

Electrical Properties:

• Rated Voltage: 230 V AC
• Power Consumption: Energy-efficient LED operation
• Electrical Connection: Standard terminal connections
• Voltage Tolerance: Industrial voltage range

Mechanical Specifications:

• Net Weight: 0.073 kg

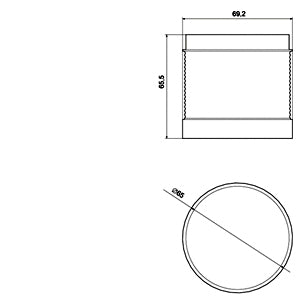

• Diameter: 70 mm
• Packaging Dimensions: 72.00 x 75.00 x 72.00 mm
• Installation: Bayonet mounting system

Environmental Specifications:

• Protection Degree: IP65 (dust and water resistant)
• Operating Temperature: Industrial temperature range
• Shock Resistance: High resistance to mechanical stress
• Vibration Resistance: Suitable for industrial environments

Standards and Compliance:

• RoHS Compliance: Yes, since 01.07.2006
• WEEE Take-Back Obligation: Yes
• Export Control: AL: N / ECCN: N
• Country of Origin: Germany

Product Information:

• EAN: 4011209497320
• UPC: Not available
• Packaging Quantity: 1 piece
• Quantity Unit: 1 Piece

Applications

The SIRIUS 8WD4 LED light element is ideal for:

• Machine status indication and monitoring
• Process control and automation signaling
• Safety and warning systems
• Production line status displays
• Equipment operational status indication
• Visual alarm and notification systems
• Industrial control panel applications
• Manufacturing process monitoring

System Integration

SIRIUS 8WD4 Signaling Column System:

• Modular Design: Compatible with 8WD4 signaling column components
• Installation: Simple bayonet mechanism for quick mounting
• Maintenance: Easy replacement without tools
• Configuration: Flexible stacking arrangement

Available Components:

• Continuous Light: Steady illumination for status indication
• Flashlight Elements: Various flash patterns available

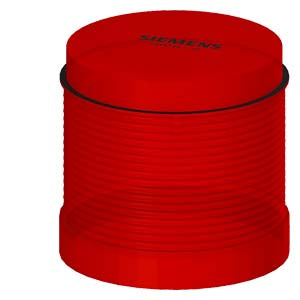

• Multiple Colors: Red, green, yellow, blue, white options
• Various Voltages: 24V AC/DC and 230V AC versions
• Acoustic Elements: Buzzers and sirens available

Installation and Mounting

Mechanical Installation:

• Bayonet Mechanism: Secure and quick mounting system
• Tool-Free Installation: No special tools required
• Easy Replacement: Quick maintenance and service
• Modular Stacking: Multiple elements can be combined

Electrical Connection:

• Standard Terminals: Industrial-grade connections
• Wiring: Standard control circuit integration
• Control: Direct voltage control or PLC interface
• Protection: Built-in electrical protection

Operational Benefits

LED Advantages:

• Energy Efficiency: Lower power consumption than incandescent
• Long Life: Extended operational life reduces maintenance
• Instant On: No warm-up time required
• Temperature Stability: Consistent performance across temperature range

Industrial Design:

• Rugged Construction: Withstands industrial environments
• High Visibility: Optimal light distribution for maximum visibility
• Reliable Operation: Designed for continuous industrial use
• Easy Maintenance: Simple replacement and service procedures

Color Coding Standards

Green Light Applications:

• Normal Operation: Equipment running normally
• System Ready: System ready for operation
• Safe Condition: Safe operating conditions present
• Process OK: Process operating within parameters

Industrial Standards:

• IEC Standards: Compliant with international signaling standards
• Color Coding: Standard industrial color conventions
• Visibility Requirements: Meets industrial visibility standards
• Safety Applications: Suitable for safety-related signaling

Compatibility

SIRIUS 8WD4 System:

• Base Units: Compatible with 8WD4 mounting bases
• Pipe Systems: Works with standard pipe mounting
• Adapters: Various mounting adapters available
• Accessories: Comprehensive accessory range

Control System Integration:

• PLC Control: Direct interface with programmable controllers
• Relay Control: Standard relay switching capability
• Communication: Integration with automation systems
• I/O Modules: Compatible with digital output modules

Available Variants

Voltage Options:

• 24V AC/DC: Low voltage for safe applications
• 230V AC: Standard industrial voltage (current product)
• Multiple Colors: Full range of signaling colors
• Different Light Modes: Continuous, flash, and strobe options

System Components:

• Light Elements: Various colors and modes
• Acoustic Elements: Buzzers and sirens
• Mounting Hardware: Bases, pipes, and adapters
• Control Electronics: Optional intelligent control modules

REACH Compliance Notice

This product contains Lead in concentrations higher than 0.1% weight by weight (w/w) as per REACH Article 33 duty to inform. Based on available information, this substance does not pose risk when the product is used as intended, including disposal. Please refer to product documentation for additional information.
