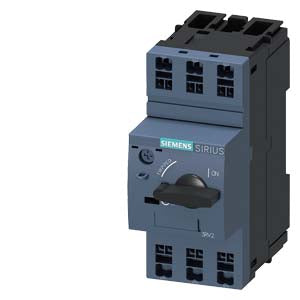

Siemens Circuit breaker for motor protection, spring, size S00, 52A Part number 3RV2011-1EA20

Product Overview

The 3RV2011-1EA20 circuit breaker is designed for motor protection in size S00 applications, featuring CLASS 10 A-release protection with an adjustable current range of 2.8 to 4 A and N-release rated at 52 A. This SIRIUS 3RV2 motor starter protector provides comprehensive overload and short-circuit protection for three-phase motors and electrical loads, incorporating spring-type terminal connections and standard switching capacity for reliable industrial motor control applications.

Key Features

• Current Range: 2.8 to 4 A adjustable overload release
• Protection Class: CLASS 10 tripping characteristic according to IEC 60947-4-1
• Size: S00 (45mm width) for compact installations
• Short-Circuit Release: 52 A (N-release) factory-set
• Terminal Type: Spring-type terminals for tool-free connections
• Switching Capacity: Standard switching capacity rating
• Phase Loss Protection: Built-in phase loss sensitivity
• Manual Operation: Rotary operating mechanism with integrated locking device
• Test Function: Built-in test slide for overload release verification
• Breaking Capacity: Up to 100 kA at 400 V AC
• Operating Temperature: -20°C to +60°C with temperature compensation
• Mounting: DIN rail or screw mounting options
• Weight: 0.811 lb (0.368 kg)
• Series: Advanced SIRIUS 3RV2 generation
• UL Approval: Type E Self Protected Combination Motor Controller

Technical Specifications

• Frequency Rating: 50/60 Hz
• Rated Operational Voltage: Up to 690 V AC (600V UL rating)
• Poles: 3-pole configuration
• Connection System: Spring-type clamp terminals
• Conductor Cross-Section: 20 to 12 AWG wire range
• Breaking Capacity: Up to 100 kA short-circuit breaking capacity at 400 V AC
• Installation Altitude: Up to 2,000 m above sea level
• Degree of Protection: IP20 front face
• Standards Compliance: IEC 60947-1, IEC 60947-2, IEC 60947-4-1
• Lockout Capability: Padlock shackle diameter 3.5-4.5 mm
• Auxiliary Switch Compatible: Supports lateral and transverse auxiliary switches
• Rated Permanent Current (Iu): 4 A
• Rated Operation Power (AC-3, 400V): 1.5 kW
• Rated Operation Power (AC-3, 230V): 0.75 kW
• Motor Power Rating: Up to 2HP (460V AC, 3-phase)
• Trip Time: 10 seconds or less at rated current
• Switch-off Technique: Magnetic
• Thermal Protection: Yes, with bimetallic heating elements
• Dimensions: 106 mm H x 45 mm W x 96 mm D

Applications

The 3RV2011-1EA20 is suitable for protecting larger three-phase motors and electrical loads in industrial automation applications where reliable overload and short-circuit protection is required for motor currents between 2.8-4 A with tool-free connection requirements. It provides inverse time-delayed protection against overload conditions and instantaneous protection against short-circuits, making it ideal for motor drives, instrumentation systems, automation equipment, precision machinery, conveyor systems, pump panels, mass production lines, HVAC installations, and SIRIUS modular system integration requiring size S00 protection for motors up to 1.5 kW at 400V with convenient spring terminal connections for easy installation and maintenance.

Operation

When an overload occurs, the motor current rises above the set rated current, heating the integrated bimetal element and causing the device to trip through thermal-magnetic operation. For short-circuit conditions, the electromagnetic release provides instantaneous protection at 52 A. The rotary operating mechanism allows manual on/off operation with clear position indication and trip status display. The spring-type terminals enable tool-free installation and maintenance, reducing installation time and eliminating the need for tools. The adjustment dial enables precise setting to motor FLA (Full Load Amperage). The built-in test function enables verification of overload release operation without electrical load. The device features phase loss sensitivity for enhanced motor protection and provides over-current protection for both AC and DC motors. After tripping, the device must be manually reset by moving the rotary switch to OFF position before reclosing.

Product Information

• Net Weight: 0.811 lb (0.368 kg)
• Packaging Dimensions: 2.067 x 4.724 x 4.193 inches
• EAN: 4011209724280
• UPC: 662643923940
• Country of Origin: Germany
• Product Class: Standard product, returnable

Compliance & Environmental

• RoHS Compliance: Yes (since 10/01/2009)
• IEC Rating: Yes
• WEEE Take-Back: Yes (2012/19/EU)
• REACH Article 33: Contains lead in concentrations higher than 0.1% w/w
• Export Control: AL: N / ECCN: N
• International Standards: IEC 60947-1, EN 60947-1, IEC 60947-2, EN 60947-2, IEC 60947-4-1, EN 60947-4-1
• UL Approval: Type E Self Protected Combination Motor Controller
• CSA Rating: 65kA at 480Y/277V AC
• Climate-Proof Design: Optimized for use in various environmental conditions

Download existing graphical data for this product:

• Technical Data Sheet
• CAx Data & 3D Models
• Equipment Manual

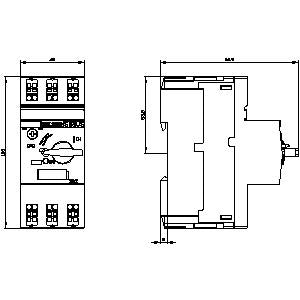

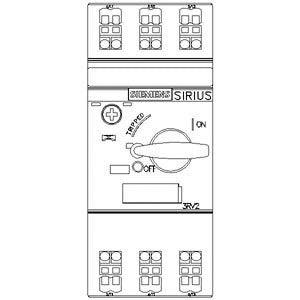

• Dimension Drawings
