Product Overview

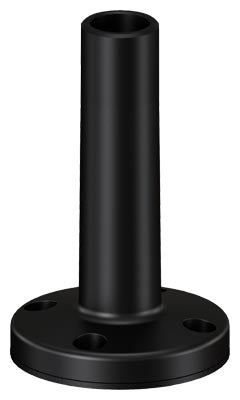

Pipe with foot, length 100 mm, accessory for signaling columns, with diameter 70 mm. This essential mounting component is part of the SIRIUS 8WD4 modular signaling column system, designed to provide stable, secure mounting for signaling columns in industrial floor-standing applications.

Key Features

Mounting System:

• Integrated Foot: Built-in foot for stable floor mounting
• 100 mm Pipe Length: Standard length for optimal signaling column height
• 70 mm Diameter: Compatible with SIRIUS 8WD4 signaling systems
• Modular Design: Seamless integration with 8WD4 components

Construction:

• Metal Construction: Durable metal construction for industrial applications
• Black Finish: Professional black oxide finish for corrosion resistance
• Robust Design: Heavy-duty construction for stable mounting
• Precision Engineering: Exact fit with 8WD4 signaling elements

Installation:

• Floor Mounting: Designed for permanent floor installation
• Easy Assembly: Simple connection to signaling column elements
• Stable Platform: Provides secure base for signaling columns
• Professional Appearance: Clean, industrial aesthetic

Technical Specifications

Physical Characteristics:

• Pipe Length: 100 mm
• Diameter: 70 mm
• Overall Height: 110 mm
• Overall Width: 70 mm
• Overall Depth: 70 mm (foot dimensions)
• Net Weight: 0.049 kg

Materials:

• Pipe Material: Metal (steel)
• Foot Material: Metal with black oxide finish
• Color: Black
• Surface Treatment: Corrosion-resistant coating
• Mounting Type: Floor-standing with integrated foot

Dimensions:

• Packaging Dimensions: 70.00 x 110.00 x 70.00 mm
• Pipe Internal Diameter: Compatible with 8WD4 wiring systems
• Foot Dimensions: Optimized for stability and floor contact

Environmental Specifications:

• Operating Temperature: Industrial temperature range
• Corrosion Resistance: Black oxide finish provides protection
• Indoor/Outdoor Use: Suitable for both indoor and protected outdoor applications
• Vibration Resistance: Stable mounting withstands industrial vibration

Standards and Compliance:

• RoHS Compliance: Yes, since 01.07.2006
• WEEE Take-Back Obligation: No
• Export Control: AL: N / ECCN: N
• Country of Origin: Germany

Product Information:

• EAN: 4011209266957
• UPC: 754554379340
• Packaging Quantity: 1 piece
• Quantity Unit: 1 Piece

Applications

The SIRIUS 8WD4 Mounting Pipe with Foot is ideal for:

• Floor-Mounted Signaling Columns: Permanent installation on factory floors
• Production Line Signaling: Status indication at work stations
• Machine Status Displays: Equipment monitoring and alerts
• Process Control Signaling: Visual indication of process states
• Safety Systems: Emergency and warning signal installations
• Quality Control Stations: Pass/fail indication systems
• Warehouse Operations: Zone and equipment status signaling
• Assembly Line Applications: Production status and alerts

Installation and Mounting

Mounting Features:

• Integrated Foot: Eliminates need for separate mounting hardware
• Stable Platform: Wide foot provides secure floor contact
• Easy Installation: Simple assembly with minimal tools required
• Permanent Mounting: Designed for long-term installation

Assembly Process:

• Floor Positioning: Place foot on desired floor location
• Secure Mounting: Anchor to floor using appropriate fasteners
• Column Assembly: Connect 8WD4 signaling elements to pipe
• System Integration: Wire and configure signaling elements

System Integration

Compatibility:

• SIRIUS 8WD4 Series: Full compatibility with all 8WD4 signaling components
• Connection Elements: Works with 8WD4408-0AA connection elements
• Light Elements: Supports all 8WD4 light elements
• Sound Elements: Compatible with buzzers and sirens

System Components:

• Signaling Elements: LED lights, flashers, and rotating beacons
• Acoustic Elements: Buzzers, sirens, and tone generators
• Connection Hardware: Wiring terminals and electrical connections
• Communication Options: IO-Link and fieldbus communication modules

Advantages

Installation Benefits:

• Stable Mounting: Integrated foot provides secure floor mounting
• Professional Appearance: Clean, industrial design
• Easy Assembly: Simple connection to signaling elements
• Flexible Configuration: Compatible with various signaling combinations

Performance Features:

• Durable Construction: Metal construction for long service life
• Corrosion Resistance: Black oxide finish protects against corrosion
• Vibration Resistance: Stable mounting withstands industrial environments
• Maintenance-Free: Requires minimal maintenance once installed

Cost Effectiveness:

• Integrated Design: Eliminates need for separate mounting hardware
• Modular System: Flexible configuration options
• Long Service Life: Durable construction reduces replacement needs
• Easy Installation: Reduces installation time and labor costs

Available Configurations

Standard Lengths:

• 100 mm Length: Standard height for most applications
• Custom Heights: Achieved by stacking multiple pipe sections
• Extension Options: Additional pipe sections available for increased height

Mounting Options:

• Floor Mounting: Integrated foot for floor installation
• Wall Mounting: Alternative brackets available separately
• Pipe Mounting: Connection elements for pipe mounting applications

Accessories and Components

Compatible Accessories:

• Connection Elements: 8WD4408-0AA connection elements
• Extension Pipes: Additional pipe sections for height adjustment
• Mounting Hardware: Fasteners and anchors for floor mounting
• Protective Covers: Weather protection for outdoor applications

System Components:

• Light Elements: All 8WD4 LED and incandescent light elements
• Sound Elements: Buzzers, sirens, and tone generators
• Communication Modules: IO-Link and fieldbus communication options
• Control Integration: Compatible with PLC and automation systems

REACH Compliance

Currently, there is no information on SVHC (Substances of Very High Concern) from the supply chain. Products are regularly compared with the REACH candidate list, and information will be updated as new findings become available.

Download existing graphical data for this product:

• Product Information and Technical Data
• SIRIUS 8WD4 Signaling Column Manual
• Installation and Configuration Guide
• Product Datasheet
• Dimensional Drawings and CAD Models
