Description
xProduct Overview

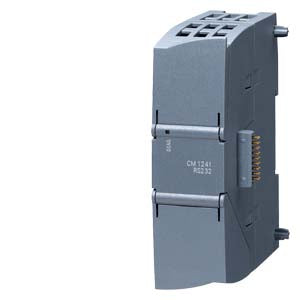

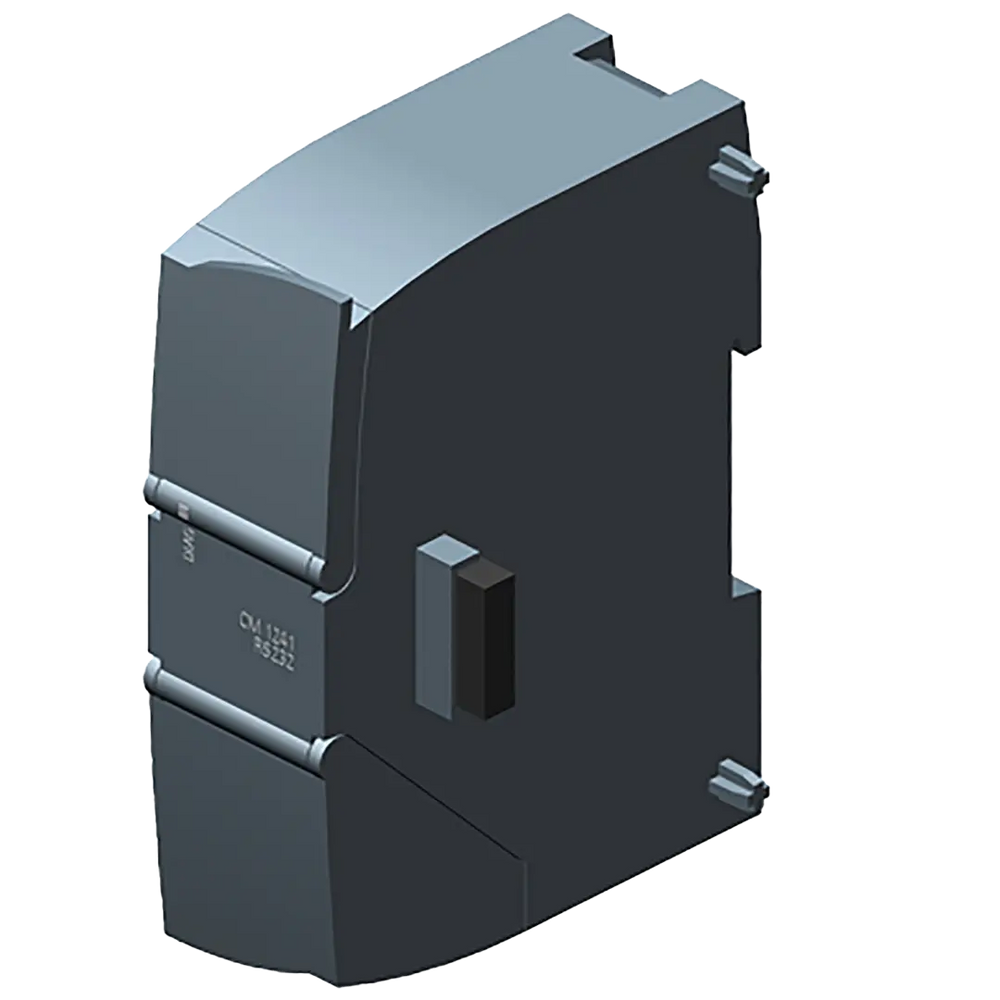

The SIMATIC S7-1200 Communication Module CM 1241 provides RS232 serial communication capabilities for SIMATIC S7-1200 controllers. Featuring a 9-pole D-sub pin connector and Freeport protocol support, this module enables versatile point-to-point serial communication with industrial devices and legacy systems.
Key Features
- RS232 Interface: Standard V.24 serial communication for point-to-point connections
- Freeport Protocol: Message-based communication with user-defined formats
- 9-Pole D-Sub Connector: Male pin connector for secure connections
- Multiple Protocol Support: ASCII, USS drive protocol, Modbus RTU, 3964(R)
- TIA Portal Integration: Simple configuration through STEP 7 Basic
- Industrial Grade: Robust design for demanding automation environments
Technical Specifications
- Interface: RS232 (V.24) with 9-pole D-sub pin connector (male)
- Protocol Support: Freeport, ASCII, Modbus RTU Master/Slave

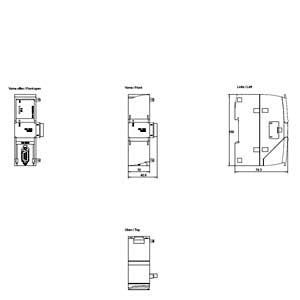

- Dimensions: 30 × 100 × 75 mm (W × H × D)
- Weight: 0.152 kg
- Power Supply: 24V DC from CPU backplane (+5V DC, 200mA max)
- Power Consumption: 1.1W typical
- Cable Length: Maximum 10m point-to-point connection
- Telegram Length: Maximum 1 kbyte (Freeport)
Communication Capabilities
Supported Protocols:
- Freeport: User-defined message formats with configurable parameters
- ASCII: Interface handshake signals controlled via user program
- Modbus RTU: Master and slave functionality for industrial networks
- USS Drive Protocol: Communication with Siemens drives
- 3964(R): Standard industrial communication protocol
Configuration Options:
- Configurable baud rates and data formats
- Selectable data bits, parity, and stop bits
- Hardware and software flow control
- Interrupt-driven and polling communication modes
Applications & Integration
Primary Applications:
- Legacy system integration with existing RS232 devices
- Industrial device communication (sensors, drives, instruments)
- Data collection from serial-based equipment
- SCADA system connectivity and monitoring
- Process control and automation systems
System Compatibility:
- All SIMATIC S7-1200 CPU series (1211C, 1212C, 1214C, 1215C, 1217C)
- TIA Portal programming with STEP 7 Basic
- Direct installation in communication module slot
- Front-accessible connector for easy wiring
Installation & Configuration
- Module Installation: Plugs directly into S7-1200 communication slot
- Connector Type: 9-pole D-sub male for industry-standard connections
- Cable Requirements: Standard RS232 cable (10m maximum length)
- Programming: Configure through TIA Portal hardware configuration
- Function Libraries: Pre-built communication function blocks available
Quality & Compliance
- Status: Active Product (PM300)
- Origin: China | EAN: 6940408102095 | UPC: 887621416294
- RoHS Compliant: Since 30.08.2013 | WEEE: Take-back obligation applies
- REACH: Contains lead, lead oxide, and BPA above 0.1% w/w (safe when used as intended)
Package Contents
- 1 × CM 1241 RS232 Communication Module
- Technical documentation and installation guide

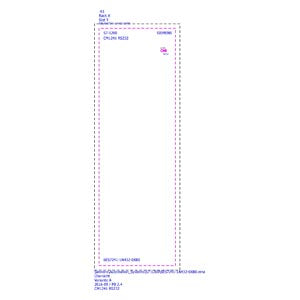

Download existing graphical data for this product:
Specifications
x| IP Rating | IP20 |
| Country of Origin | Germany |
| Compliance/Certifications | CE mark / cULus / CSA approval / FM approval / KC approval / Marine Approval / RCM / UL approval |
| Temperature: Operating | -20°C to 60°C (for horizontal installation) / -20°C to 50°C (for vertical installation) |
| Part Length (mm) | 10 000mm |
| Packaging size / unit | pc(s) |
| Type of Voltage | DC |
| Supply Voltage | 24 VDC |
