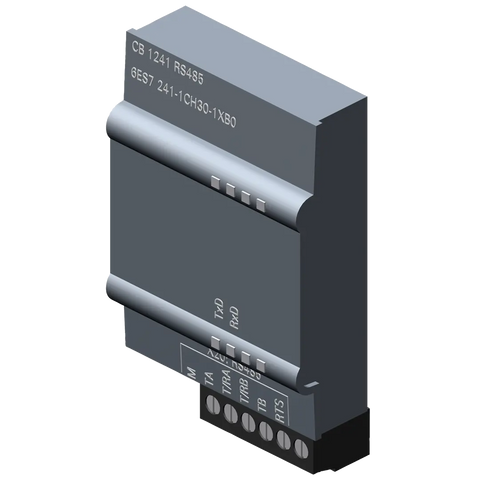

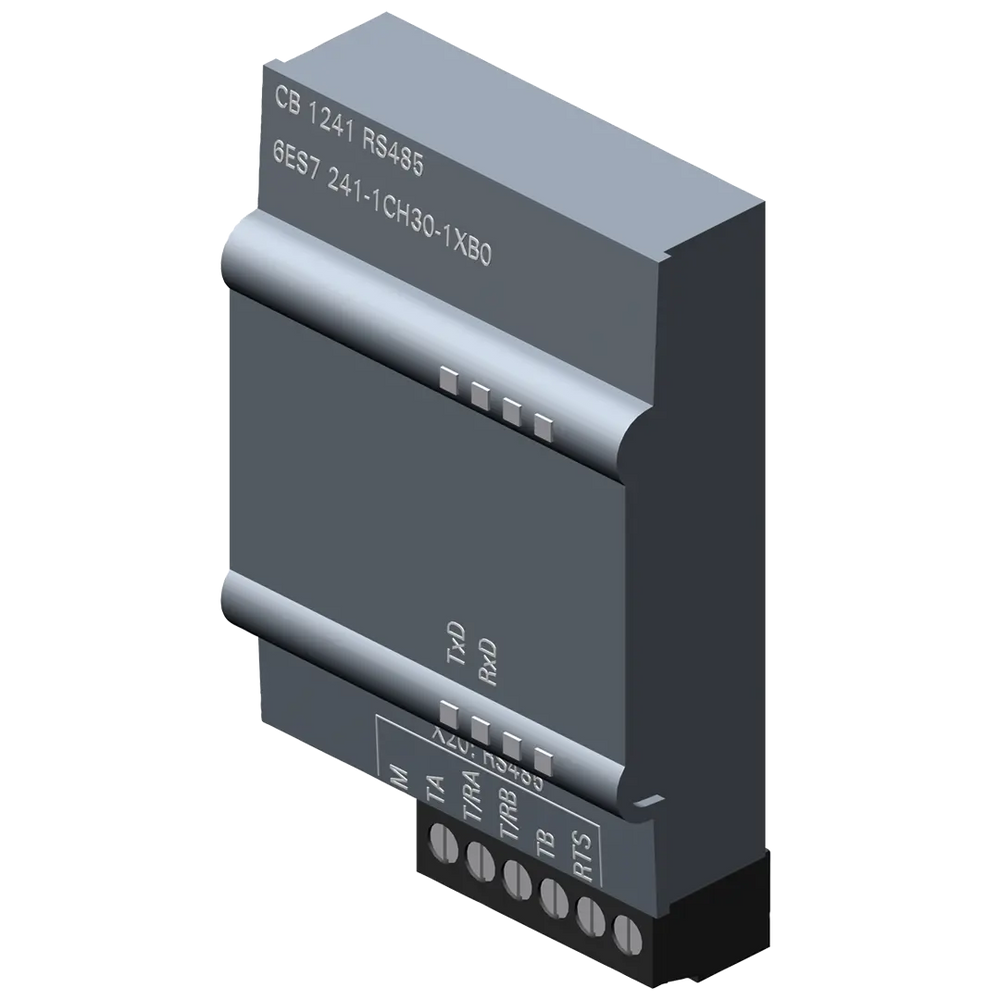

Siemens Communication board 1241, RS485, terminal block

SKU / Article No. 6ES7241-1CH30-1XB0
Product Type Control Panel
Category HMI's & PLC's
Sub-category Network
Back Order
View Full Product Details on Siemens 💬 Ask an Expert - Technical Support Available

Product Description

This communication board is designed for the SIMATIC S7-1200, providing an RS485 interface for point-to-point communication. It supports a variety of protocols, including Freeport, Modbus RTU (master/slave), and USS. The unit is ideal for industrial environments requiring reliable and flexible data communication over distances up to 1,000 meters.

Technical Specifications

IP RatingIP20
Country of OriginGermany
Compliance/CertificationsCE / CSA / UL / cULus / FM / RCM / KC / Marine approval
Temperature: Operating-20°C to 60°C
Part Depth (mm)21mm
Part Width (mm)38mm
Part Length (mm)1 000 000mm
Part Height (mm)62mm
Weight (g)40g
Packaging size / unit pc(s)
View complete specifications on Siemens
