Product Information

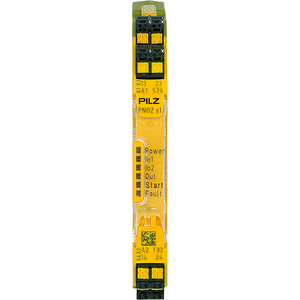

Name: Pilz PNOZsigma safety relay, standalone, 2NO, 24VDC
Brand: Pilz
SKU: 751101
Price: 0.01 ZAR
Availability: InStock

PNOZ s1 C 24VDC 2 n/o

Product ID: 751101

Description

PNOZsigma safety relay (standalone), inputs: 1-channel wiring, manual/automatic start, outputs: 2 N/O, 1 SC, UB 24 V DC, width: 12.5 mm, plug-in spring-loaded terminals, monitoring of E-STOP, safety gates.

Technical Data

Approval	CCC, CE, UKCA, cULus Listed, KOSHA, TÜV, EAC (Eurasian)
Supply Voltage (V)	24 V
Type of Supply Voltage U1	DC
Power Consumption DC	2 W
Number of Inputs	1
Number of Semiconductor Outputs	1
Utilisation Category to EN 60947-1	DC-12
Utilisation Category AC/DC1 Standard	EN 60947-4-1
Voltage AC1 Safety Cont.	240 V
Max. Current AC1 Safety Cont.	3 A
Voltage DC1 Safety Cont.	24 V
Max. Current DC1 Safety Cont.	3 A
Ambient Temperature	-10 to 55 °C
Humidity Rating	93 % r. h. at 40 °C
Climatic Suitability	EN 60068-2-78
Net Weight	105 g
Gross Weight	115 g
