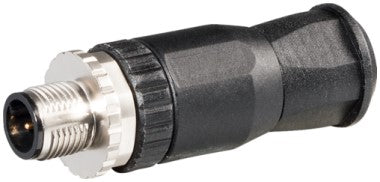

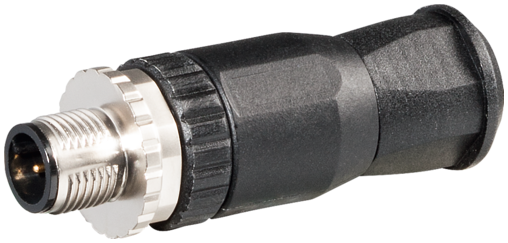

Murr Terminal, field-wireable, M12 male 0°, 5-pole, 2.5-8mm

Product Overview

The Murrelektronik M12 male straight field-wireable connector features reliable screw terminal technology for industrial sensor and actuator systems requiring secure field termination with plug configuration. This A-coded connector accommodates 5-pole configurations with enhanced wire cross-sections from 0.14 to 1.5mm² and larger cable diameters from 2.5 to 8mm, providing robust plug connections in industrial automation environments where field assembly with heavier gauge wires is essential.

Key Features

• M12 male 0° straight connector with A-coding and 5-pole configuration
• Enhanced screw terminal technology for secure wire connections
• Extended wire cross-section compatibility: 0.14 to 1.5mm²
• Large cable diameter range: 2.5 to 8mm
• Screw terminals designed for reliable wire contact and retention with heavier conductors
• Robust strain relief system for enhanced cable protection
• Operating voltage up to 60V AC/DC for signal applications
• Maximum current rating of 4A per contact
• IP67 protection rating when properly assembled
• Durable plastic housing with superior resistance properties

Technical Specifications

• Article Number: 7000-12731-0000000

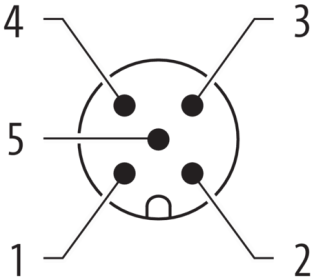

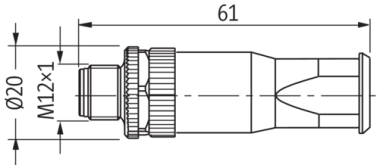

• Connector Type: M12 male 0° straight, A-coded, field-wireable

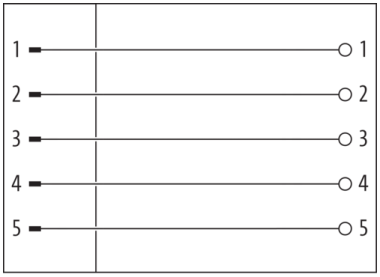

• Pole Configuration: 5-pole
• Connection Method: Screw terminals
• Wire Cross-Section: 0.14 to 1.5mm²
• Cable Diameter: 2.5 to 8mm
• Operating Voltage: 60V AC/DC maximum
• Maximum Current: 4A per contact
• Operating Temperature: -30°C to +85°C
• Protection Rating: IP67 when properly assembled
• Housing Material: High-resistance plastic with excellent durability
• Compliance: EN60529

Applications

• Field installation of sensor and actuator plug connections requiring 5-pole signal capacity with heavier conductors
• Industrial automation systems with enhanced control wiring requiring on-site male assembly
• Signal transmission applications where reliable field termination with larger wire sizes is essential
• Maintenance and repair applications requiring secure plug replacement with heavy-duty cables
• Control panel connections with multi-signal plug requirements using larger gauge wires
• Applications where pre-assembled cordsets are impractical for heavy-duty wiring
• High-current measurement systems requiring reliable field plug connections
• Harsh industrial environments requiring robust cable connections

Standards and Compliance

• Protection Standards: IP67 rated for industrial environments per EN60529
• Quality Standards: German engineering and manufacturing
• Performance Standards: Designed for harsh industrial conditions with enhanced current capacity

Benefits

• Enhanced screw terminal design accommodates larger wire cross-sections up to 1.5mm²
• Field-wireable configuration eliminates need for pre-assembled heavy-duty cordsets
• 5-pole plug configuration provides comprehensive signal transmission capability
• Extended cable diameter range accommodates industrial cables up to 8mm
• High current capacity of 4A per contact for demanding applications
• Wide operating temperature range from -30°C to +85°C
• A-coding ensures proper mating with compatible female connectors
• Cost-effective solution for heavy-duty field termination requirements
• Excellent resistance against chemicals, oils, and environmental contaminants
• Reliable performance in demanding automation and control applications

Product Datasheet:

• Data Sheet
