Murr Profibus plug, male, Sub D, 90°

Product Overview

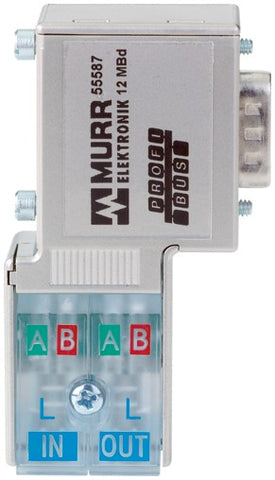

The Murrelektronik PROFIBUS Plug Male Sub-D 90° is a bus connection plug designed for PROFIBUS communication systems. This 90-degree angled male connector features Sub-D9 configuration with IDC terminals, supporting both rigid and flexible cables for programming device connections in industrial automation applications.

Key Features

• PROFIBUS bus connection plug with 90° angled design
• Sub-D9 male connector configuration
• IDC (Insulation Displacement Connection) terminals
• Compatible with rigid and flexible cables
• Cut clamp technology for secure wire connection
• Integrated terminating resistor (switchable)

Technical Specifications

• Model: PROFIBUS Plug Male Sub-D 90°
• Article Number: 55585
• Connector Type: Sub-D9 male, 90° angled
• Cable Compatibility: Rigid and flexible PROFIBUS FC cables
• Wire Specification: 1x 2x 0.64 mm²
• Outer Diameter: 8.0 ±0.5 mm

Electrical Characteristics

• Operating Voltage: Via fieldbus device, 4.75 - 5.25V DC
• Current Consumption: Maximum specified by PROFIBUS standards
• Terminating Resistor: Integrated, switchable design
• Terminal Type: IDC terminals for tool-free connection
• Communication Protocol: PROFIBUS DP compatibility

Connection Specifications

• Cable Type: PROFIBUS FC cable (rigid/flexible)
• Connection Method: Cut clamp for secure wire termination
• Programming Device: Connection capability included
• Wire Range: 2x 0.64 mm² conductors
• Installation: Tool-free IDC terminal connection

Applications

• PROFIBUS communication network installations
• Industrial automation system connections
• Programming device interfaces for PROFIBUS networks
• Fieldbus system termination and connection points
• Control system communication links
• Manufacturing and process control applications

Standards and Compliance

• PROFIBUS Standards: Compatible with PROFIBUS DP protocol
• Connection Standards: Sub-D9 connector specification
• Quality Standards: Murrelektronik industrial automation quality
• Installation Standards: IDC terminal connection requirements

Benefits

• 90° angled design saves space in confined installations
• IDC terminals provide tool-free, reliable connections
• Switchable terminating resistor simplifies network setup
• Compatible with both rigid and flexible PROFIBUS cables
• Secure cut clamp technology ensures reliable wire connection
• Supports programming device connections for system configuration

Download existing graphical data for this product:

• Product Specification Sheet
