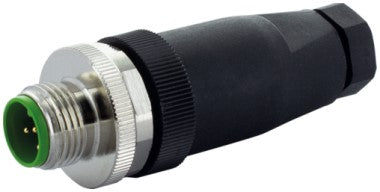

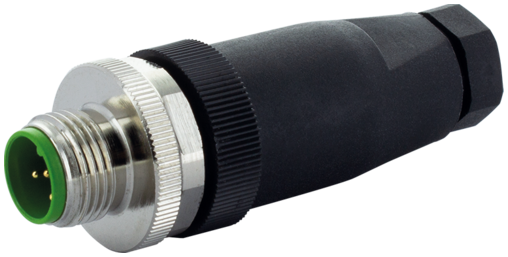

Murr Screw terminal, M12 male 0°, 4-pole, A-code

Product Overview

The Murrelektronik M12 male straight field-wireable connector features traditional screw terminal technology for industrial sensor and actuator applications requiring reliable field termination with expanded signal capacity and proven connection methods. This A-coded connector accommodates 4-pole configurations with wire cross-sections up to 0.75mm² and cable diameters from 4 to 6mm, providing secure and versatile connections in industrial automation environments where traditional termination methods are preferred.

Key Features

• M12 male 0° straight connector with A-coding and 4-pole configuration
• Traditional screw terminal technology for reliable field termination
• Wire cross-section compatibility: up to 0.75mm²
• Cable diameter range: 4 to 6mm
• Individual screw terminals for each conductor
• Robust plastic housing construction
• IP67 protection rating for harsh industrial environments

Technical Specifications

• Article Number: 7000-12702-0000000

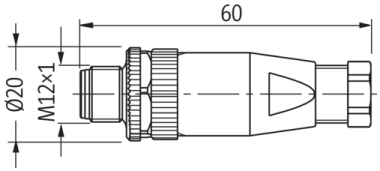

• Connector Type: M12 male 0° straight, A-coded, field-wireable

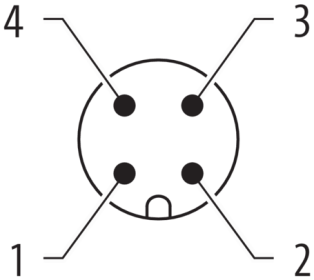

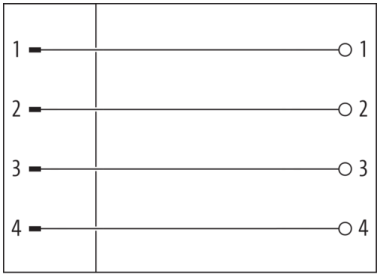

• Pole Configuration: 4-pole
• Connection Method: Screw terminals
• Wire Cross-Section: Maximum 0.75mm²
• Cable Diameter: 4 to 6mm
• Operating Voltage: Maximum 250V AC/DC
• Current Rating: Maximum 4A per contact
• Operating Temperature: -25°C to +85°C
• Protection Rating: IP67 when properly assembled

Applications

• Field installation of sensor and actuator connections requiring traditional termination methods
• Industrial automation systems where screw terminal reliability is essential
• Maintenance and repair applications requiring familiar connection technology
• Control panel connections with proven screw terminal requirements
• Applications where individual wire adjustment and re-termination is frequently needed
• Environments where traditional electrical practices are standard

Standards and Compliance

• Protection Standards: IP67 rated for industrial environments
• Quality Standards: German engineering and manufacturing
• Performance Standards: Designed for harsh industrial conditions

Benefits

• Proven screw terminal technology ensures reliable long-term connections
• Individual screw terminals allow for easy wire replacement and maintenance
• Familiar termination method requires no special training or tools
• 4-pole configuration supports expanded signal requirements
• Robust construction withstands repeated termination cycles
• Field-wireable design eliminates need for pre-assembled cordsets
• Extremely good resistance against chemicals, oils, lubricants, and coolants

Download existing graphical data for this product:

• Data Sheet
