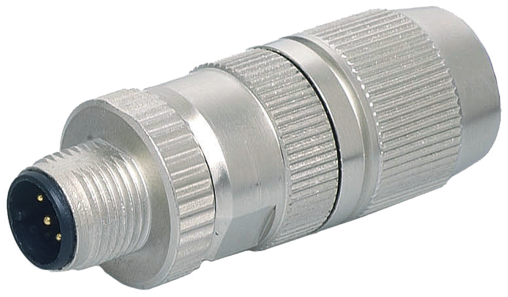

Murr M12 Connector, male 0°, 4-pole, ethernet, 0.14 - 0.34mm²

Product Overview

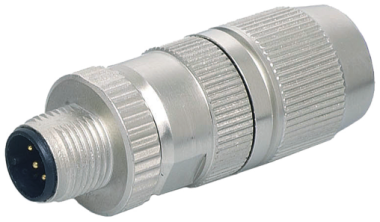

The Murrelektronik M12 male straight field-wireable connector features innovative IDC (Insulation Displacement Connector) technology specifically designed for Ethernet CAT5 industrial data communication applications requiring quick and secure field termination with plug configuration. This D-coded connector accommodates 4-pole configurations with wire cross-sections from 0.14 to 0.34mm² and cable diameters from 4.5 to 8.8mm, providing robust shielded plug connections in industrial automation environments where fast Ethernet installation and reliable data transmission are essential.

Key Features

• M12 male 0° straight connector with D-coding and 4-pole configuration
• Specifically designed for Ethernet CAT5 applications
• Advanced IDC (Insulation Displacement Connector) technology for quick termination
• Integrated shielding for superior electromagnetic interference protection
• Wire cross-section compatibility: 0.14 to 0.34mm² (26-22 AWG)
• Cable diameter range: 4.5 to 8.8mm
• IDC terminals eliminate wire stripping and provide secure connections
• Robust strain relief system for cable protection
• Threaded locking mechanism for secure connection
• Durable impact-resistant plastic housing with superior chemical resistance
• Field-wireable design for on-site installation flexibility
• IP67 protection rating when properly assembled

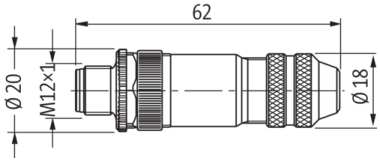

Technical Specifications

• Article Number: 7000-14521-0000000
• Connector Type: M12 male 0° straight, D-coded, field-wireable

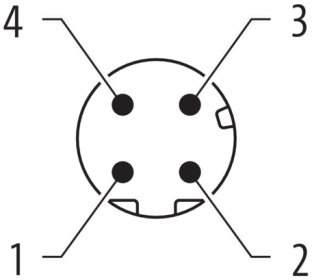

• Pole Configuration: 4-pole
• Application: Ethernet CAT5 communication

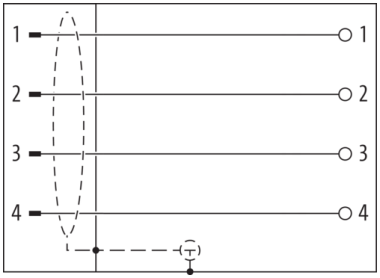

• Connection Method: IDC (Insulation Displacement Connector) with integrated shielding
• Wire Cross-Section: 0.14 to 0.34mm² (26-22 AWG)
• Cable Diameter: 4.5 to 8.8mm
• Shielding: Integrated electromagnetic interference protection
• Operating Voltage: 32V AC/DC
• Operating Current: 4A per contact maximum
• Operating Temperature: -40°C to +85°C
• Protection Rating: IP67 when properly assembled
• Housing Material: Impact-resistant plastic with excellent chemical resistance

Applications

• Ethernet CAT5 industrial network connections requiring quick field termination
• Process control systems requiring reliable shielded Ethernet connections with fast installation
• Manufacturing automation systems with Ethernet communication requirements
• Control panel connections requiring rapid Ethernet plug installation without wire stripping
• Field installation of Ethernet transmission plug connections with IDC convenience
• Applications where pre-assembled Ethernet cordsets are impractical and fast termination is needed
• Industrial Ethernet network connections requiring field-installed plugs with minimal installation time
• Ethernet data transmission systems in environments requiring quick connector assembly

Standards and Compliance

• Protection Standards: IP67 rated for industrial environments
• Communication Standards: Ethernet CAT5 compatible
• EMI Standards: Integrated shielding for electromagnetic compatibility
• Quality Standards: German engineering and manufacturing
• Performance Standards: Designed for harsh industrial Ethernet communication conditions

Benefits

• IDC technology eliminates wire stripping and reduces installation time by up to 50%
• D-coded 4-pole configuration ensures proper Ethernet CAT5 compatibility
• Integrated shielding provides superior EMI protection for Ethernet signal integrity
• No specialized tools required for IDC termination
• Wire cross-section range (26-22 AWG) optimized for standard Ethernet cables
• Field-wireable configuration eliminates need for pre-assembled Ethernet cordsets
• Threaded locking mechanism ensures secure and reliable connections
• Excellent resistance against chemicals, oils, lubricants, coolants, and aggressive media
• Impact-resistant plastic housing withstands demanding industrial environments
• IP67 protection ensures reliable performance in harsh environmental conditions
• Cost-effective solution for rapid field Ethernet plug termination requirements
• Easy field installation with IDC technology
• Superior Ethernet data transmission performance with integrated shielding
• Wide operating temperature range from -40°C to +85°C
• Reliable long-term performance for critical Ethernet communication applications
