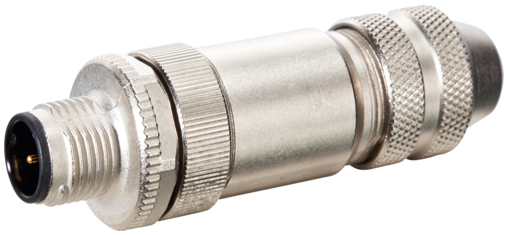

Murr M12 male 0°, D-coded, straight, 4-pole, 0.75mm²

Product Overview

The Murrelektronik M12 male straight field-wireable connector features advanced shielded screw terminal technology specifically designed for Ethernet CAT5 industrial data communication applications requiring secure field termination with plug configuration. This D-coded connector accommodates 4-pole configurations with wire cross-sections up to 0.75mm² and cable diameters from 6 to 8mm, providing robust shielded plug connections in industrial automation environments where Ethernet protocol integrity and electromagnetic interference protection are essential.

Key Features

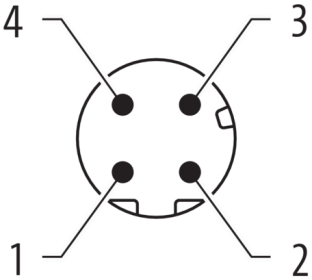

• M12 male 0° straight connector with D-coding and 4-pole configuration
• Specifically designed for Ethernet CAT5 communication protocol
• Integrated shielding for superior electromagnetic interference protection
• Reliable screw terminal technology for secure wire connections
• Wire cross-section compatibility: up to 0.75mm²
• Cable diameter range: 6 to 8mm
• Screw terminals designed for reliable wire contact and retention
• Robust strain relief system for cable protection
• Operating voltage suitable for Ethernet data applications
• Durable plastic housing with superior chemical and oil resistance
• Field-wireable design for on-site installation flexibility
• IP67 protection rating when properly assembled

Technical Specifications

• Article Number: 7000-14591-0000000
• Connector Type: M12 male 0° straight, D-coded, field-wireable
• Pole Configuration: 4-pole
• Communication Protocol: Ethernet CAT5 compatible
• Connection Method: Shielded screw terminals
• Wire Cross-Section: Maximum 0.75mm²
• Cable Diameter: 6 to 8mm
• Shielding: Integrated electromagnetic interference protection
• Operating Voltage: Industrial data communication voltage range
• Operating Temperature: Standard industrial range
• Protection Rating: IP67 when properly assembled
• Housing Material: High-resistance plastic with excellent chemical resistance

Applications

• Ethernet CAT5 industrial network connections requiring EMI protection
• Process control systems with Ethernet communication requirements
• Manufacturing automation networks with electromagnetic interference concerns
• Control panel connections requiring Ethernet data integrity and noise immunity
• Field installation of Ethernet plug connections with shielding requirements
• Applications where pre-assembled Ethernet shielded cordsets are impractical
• Machine installations requiring Ethernet connections with reliable data transmission
• Industrial Ethernet networks requiring field-installed plugs in electrically noisy environments

Standards and Compliance

• Protection Standards: IP67 rated for industrial environments
• Communication Standards: Ethernet CAT5 protocol compatible
• EMI Standards: Integrated shielding for electromagnetic compatibility
• Quality Standards: German engineering and manufacturing
• Performance Standards: Designed for harsh industrial Ethernet communication conditions

Benefits

• D-coded 4-pole configuration ensures proper Ethernet CAT5 protocol compatibility
• Integrated shielding provides superior EMI protection for Ethernet signal integrity
• Specialized for Ethernet CAT5 communication requirements in industrial environments
• Enhanced cable diameter range accommodates larger industrial Ethernet cables up to 8mm
• Field-wireable configuration eliminates need for pre-assembled Ethernet shielded cordsets
• Excellent resistance against chemicals, oils, lubricants, and aggressive media
• Robust plastic housing withstands demanding industrial environments
• IP67 protection ensures reliable performance in harsh environmental conditions
• Cost-effective solution for Ethernet shielded field plug termination requirements
• Easy field installation with standard screw terminal connections
• Superior Ethernet data transmission performance in electrically noisy environments
• Reliable long-term performance for critical Ethernet communication applications
• 4-pole straight design provides optimal signal transmission for Ethernet applications

Downloads:

• Product Data Sheet
