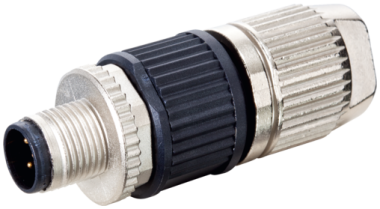

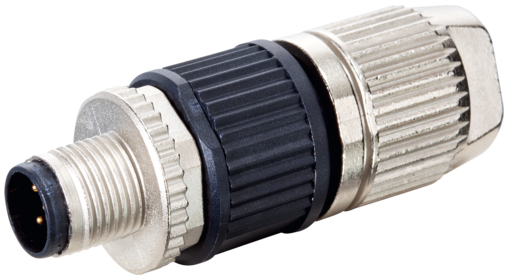

Murr M12, IDC, Connector, male 0°, 5-pole, c/s 0.34 - 0.5mm²

Product Overview

The Murrelektronik M12 male straight field-wireable connector features innovative IDC (Insulation Displacement Connector) technology with maximum 5-pole configuration for industrial sensor and actuator applications requiring fast, reliable field termination with comprehensive signal capacity. This A-coded connector accommodates maximum signal requirements with wire cross-sections from 0.34 to 0.5mm² and cable diameters from 4.7 to 6mm, providing quick and secure connections in industrial automation environments where field assembly with maximum M12 A-coded signal capacity is critical.

Key Features

• M12 male 0° straight connector with A-coding and maximum 5-pole configuration
• IDC (Insulation Displacement Connector) technology for comprehensive signal applications
• Wire cross-section compatibility: 0.34 to 0.5mm²
• Cable diameter range: 4.7 to 6mm
• Razor-style connection blades for secure wire contact
• Hand-tightened strain relief requiring minimal force
• IP67 protection rating for harsh industrial environments
• Impact-resistant plastic housing with superior chemical resistance

Technical Specifications

• Article Number: 7000-12533-0000000
• Connector Type: M12 male 0° straight, A-coded, field-wireable

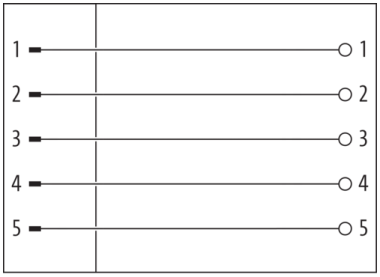

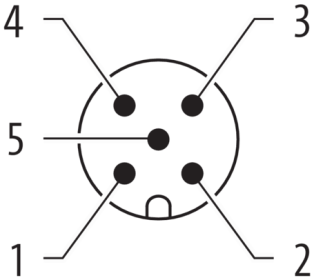

• Pole Configuration: 5-pole (maximum for M12 A-coded)
• Connection Method: IDC (Insulation Displacement Connector)
• Wire Cross-Section: 0.34 to 0.5mm²
• Cable Diameter: 4.7 to 6mm
• Operating Voltage: Maximum 125V DC (typical for 5-pole applications)
• Current Rating: Maximum 4A per contact
• Operating Temperature: -25°C to +85°C
• Protection Rating: IP67 when properly assembled
• Housing Material: Impact-resistant plastic with excellent chemical resistance

Applications

• Field installation requiring maximum M12 A-coded signal capacity with 5-pole configuration
• Industrial automation systems where comprehensive on-site signal termination is necessary
• Complex sensor and actuator applications requiring maximum signal lines
• Maintenance and repair applications requiring quick maximum capacity connector replacement
• Control systems requiring comprehensive field-assembled multi-signal connections
• Applications where traditional screw terminals are impractical for maximum pole configurations
• Remote locations where specialized tools for comprehensive termination are not available

Standards and Compliance

• Protection Standards: IP67 rated for industrial environments
• Quality Standards: German engineering and manufacturing
• Performance Standards: Designed for harsh industrial conditions with maximum signal capacity

Benefits

• IDC technology reduces installation time by over 50% compared to traditional multi-pole terminations
• No specialized tools required - hand-tightened strain relief installation
• Razor-style blades ensure reliable electrical contact without wire stripping
• Minimal force required for assembly - ideal for comprehensive field installations
• 5-pole configuration provides maximum signal capacity for M12 A-coded applications
• Accommodates larger cable diameters for comprehensive wiring requirements
• Field-wireable design eliminates need for pre-assembled maximum capacity cordsets
• Extremely good resistance against chemicals, oils, lubricants, and coolants
• Impact-resistant housing withstands demanding industrial environments
• Cost-effective solution for maximum capacity field termination requirements

Download existing graphical data for this product:

• Data Sheet
