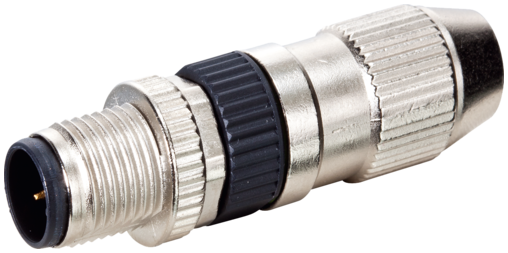

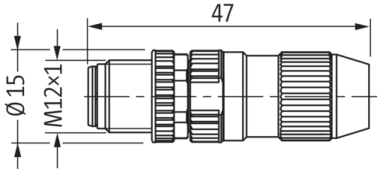

Murr M12 Connector, male 0°, 4-pole, c/s 0.14 - 0.34mm²

Product Overview

The Murrelektronik M12 male straight field-wireable connector features innovative IDC (Insulation Displacement Connector) technology optimized for fine wire applications in industrial sensor and actuator systems requiring fast, reliable field termination with expanded signal capacity. This A-coded connector accommodates 4-pole configurations with fine wire cross-sections from 0.14 to 0.34mm² and cable diameters from 2.9 to 5.1mm, providing quick and secure connections in industrial automation environments where field assembly with smaller gauge wires is critical.

Key Features

• M12 male 0° straight connector with A-coding and 4-pole configuration
• IDC (Insulation Displacement Connector) technology optimized for fine wire applications
• Fine wire cross-section compatibility: 0.14 to 0.34mm²
• Cable diameter range: 2.9 to 5.1mm
• Razor-style connection blades for secure fine wire contact
• Hand-tightened strain relief requiring minimal force
• IP65/IP67 protection rating for harsh industrial environments
• Impact-resistant plastic housing with superior chemical resistance

Technical Specifications

• Article Number: 7000-12491-0000000
• Connector Type: M12 male 0° straight, A-coded, field-wireable

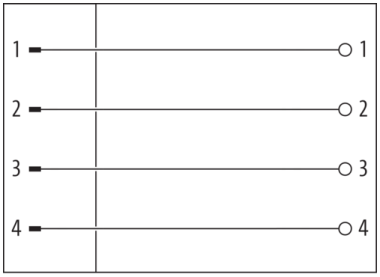

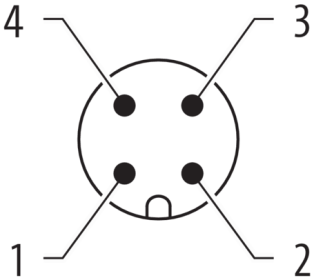

• Pole Configuration: 4-pole
• Connection Method: IDC (Insulation Displacement Connector)
• Wire Cross-Section: 0.14 to 0.34mm²
• Cable Diameter: 2.9 to 5.1mm
• Operating Voltage: Maximum 32V AC/DC
• Current Rating: Maximum 4A per contact
• Operating Temperature: -25°C to +85°C
• Protection Rating: IP65/IP67 when properly assembled
• Housing Material: Impact-resistant plastic with excellent chemical resistance

Applications

• Field installation of sensor and actuator connections requiring fine wire 4-pole signal capacity
• Industrial automation systems with fine gauge control wiring requiring on-site assembly
• Instrumentation applications where smaller wire sizes are standard
• Maintenance and repair applications requiring quick fine wire connector replacement
• Control panel connections with fine wire multi-signal requirements
• Applications where traditional screw terminals are unsuitable for fine wire termination
• Precision measurement systems requiring reliable fine wire field connections

Standards and Compliance

• Protection Standards: IP65/IP67 rated for industrial environments
• Quality Standards: German engineering and manufacturing
• Performance Standards: Designed for harsh industrial conditions with fine wire optimization

Benefits

• IDC technology reduces installation time by over 50% compared to traditional fine wire terminations
• No specialized tools required - hand-tightened strain relief installation
• Razor-style blades ensure reliable electrical contact with fine wires without stripping
• Minimal force required for assembly - ideal for delicate wire handling
• 4-pole configuration supports expanded signal requirements in fine wire applications
• Optimized for smaller cable diameters commonly used in instrumentation
• Field-wireable design eliminates need for pre-assembled fine wire cordsets
• Extremely good resistance against chemicals, oils, lubricants, and coolants
• Impact-resistant housing withstands demanding industrial environments
• Cost-effective solution for multi-pole fine wire field termination requirements
