Murr M8 Connector, male 0°, 4-pole, c/s 0.14 - 0.34mm²

Product Overview

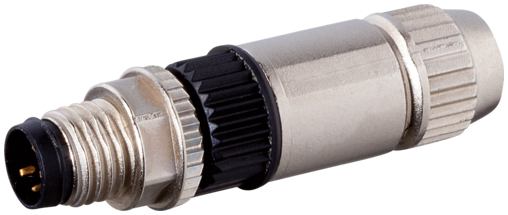

The Murrelektronik MOSA M8 male connector is a field-wireable IDC (Insulation Displacement Connection) connector designed for quick and reliable on-site termination of industrial sensor and automation cables. This straight M8 male connector features A-coding and 4-pole configuration with IDC technology, allowing for fast field installation without the need for special tools. Designed for industrial automation applications, it provides secure connections for wire cross-sections from 0.14 to 0.34mm² with IP67 protection rating.

Key Features

• M8 male straight connector with A-coding (4-pole configuration)
• IDC (Insulation Displacement Connection) technology for tool-free termination
• Field-wireable design for on-site installation flexibility
• Accepts wire cross-sections from 0.14 to 0.34mm² (0.1mm minimum conductor diameter)
• Cable diameter range: 2.5 to 5.1mm with included gasket
• Keyed and color-coded alignment insert for proper pin alignment
• Razor-style blades for secure wire connection
• Hand-tightened strain relief with minimal force required
• MOSA series connector design

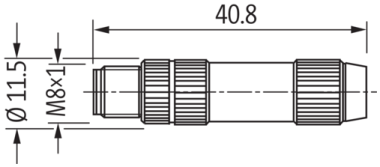

Technical Specifications

• Model: MOSA M8 male 0° field-wireable (IDC)
• Article Number: 7000-08351-0000000
• Connector Type: M8 male, straight (0°)

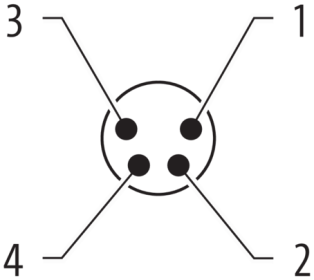

• Coding: A-coded
• Pole Configuration: 4-pole
• Connection Technology: IDC (Insulation Displacement Connection)
• Wire Cross Section: 0.14 to 0.34mm² (#22-26 AWG)
• Cable Diameter Range: 2.5 to 5.1mm

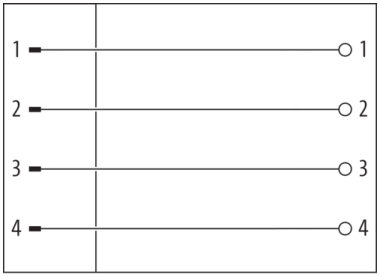

Connection Specifications

• Connector End: M8 male straight connector, A-coded
• Termination Method: IDC with razor-style blades
• Wire Cross Section: 0.14 to 0.34mm² (conductor diameter min. 0.1mm)
• Cable Sealing Range: 2.5 to 5.1mm diameter (gasket included)
• Voltage Rating: 32VAC/DC maximum
• Current Rating: 4A maximum per contact
• Protection Rating: IP67
• Isolation Resistance: ≥10^8 Ohm
• Contact Resistance: ≤10 mOhm
• Rated Surge Voltage: 0.8kV

Applications

• Field installation and maintenance of 4-pole sensor connections
• Industrial automation systems requiring on-site termination
• Machine control systems with custom cable lengths
• Process control instrumentation with field-configurable connections
• Factory floor installations requiring quick connector assembly
• Retrofit applications where pre-made cables are not suitable

Standards and Compliance

• Material Group: IEC 60664-1, Category I
• Overvoltage Category: 3
• Quality Standards: German engineering and manufacturing
• Industrial Standards: Suitable for demanding automation applications
• Protection Standards: IP67 environmental protection
• Voltage Isolation: 500V voltage isolation

Benefits

• IDC technology eliminates need for special termination tools
• Field-wireable design reduces inventory requirements for pre-made cables
• Installation time reduced by more than 50% compared to screw terminals
• Keyed alignment prevents incorrect wiring
• Hand-tightened strain relief requires minimal force
• A-coding ensures proper mating and prevents mis-connection
• IP67 protection rating enables use in demanding industrial environments
• Accepts wide range of wire sizes for application flexibility
• 4-pole configuration supports more complex sensor requirements
• Razor-style blades ensure reliable electrical connection
