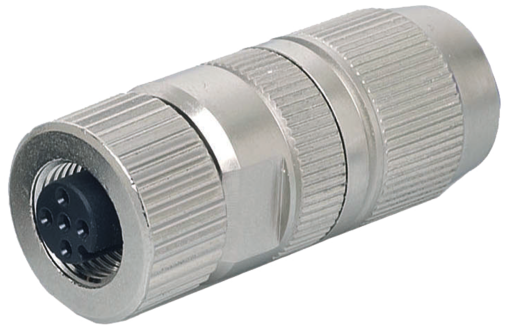

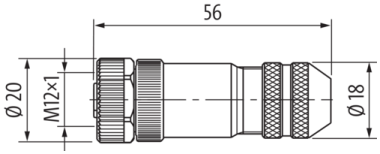

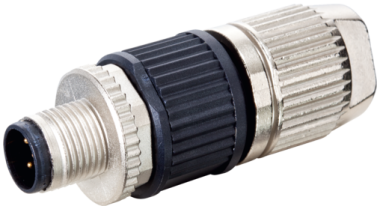

Murr M12 Connector, female 0°, 4-pole, c/s 0.14 - 0.34mm²

Product Overview

The Murrelektronik M12 female straight field-wireable connector features innovative IDC (Insulation Displacement Connector) technology specifically designed for Ethernet CAT5 industrial data communication applications requiring quick and secure field termination with socket configuration. This D-coded connector accommodates 4-pole configurations with wire cross-sections from 0.14 to 0.34mm² and cable diameters from 4.5 to 8.8mm, providing robust shielded socket connections in industrial automation environments where fast Ethernet installation and reliable data reception are essential.

Key Features

• M12 female 0° straight connector with D-coding and 4-pole configuration
• Specifically designed for Ethernet CAT5 applications
• Advanced IDC (Insulation Displacement Connector) technology for quick termination
• Integrated shielding for superior electromagnetic interference protection
• Wire cross-section compatibility: 0.14 to 0.34mm² (MOSA series specification)
• Cable diameter range: 4.5 to 8.8mm
• IDC terminals eliminate wire stripping and provide secure connections
• Robust strain relief system for cable protection
• Durable plastic housing with superior chemical and oil resistance
• Field-wireable design for on-site installation flexibility
• IP67 protection rating when properly assembled

Technical Specifications

• Article Number: 7000-14621-0000000
• Connector Type: M12 female 0° straight, D-coded, field-wireable

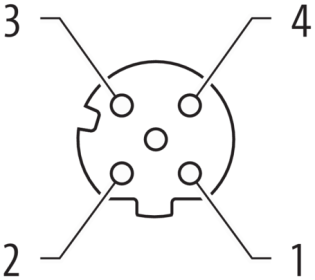

• Pole Configuration: 4-pole
• Application: Ethernet CAT5 communication

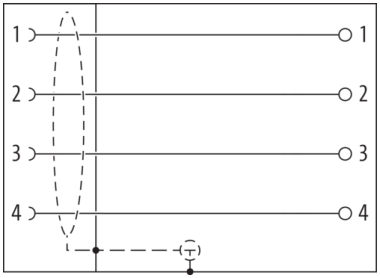

• Connection Method: IDC (Insulation Displacement Connector) with integrated shielding
• Wire Cross-Section: 0.14 to 0.34mm² (0.25-0.34mm² connection cross section)
• Cable Diameter: 4.5 to 8.8mm
• Shielding: Fully shielded for electromagnetic interference protection
• Operating Voltage: 50V AC/DC (D-coded applications)
• Operating Current: 4A maximum
• Operating Temperature: -40°C to +85°C
• Protection Rating: IP67 when properly mated
• Housing Material: High-resistance plastic with excellent chemical resistance

Applications

• Ethernet CAT5 industrial network socket connections requiring quick field termination
• Process control systems requiring reliable shielded Ethernet socket connections with fast installation
• Manufacturing automation systems with Ethernet communication requirements
• Control panel socket connections requiring rapid Ethernet installation without wire stripping
• Field installation of Ethernet receiving socket connections with IDC convenience
• Applications where pre-assembled Ethernet female cordsets are impractical and fast termination is needed
• Industrial Ethernet network socket connections requiring field-installed connectors with minimal installation time
• Ethernet data receiving systems in environments requiring quick connector assembly

Standards and Compliance

• Protection Standards: IP67 rated when properly mated
• Communication Standards: Ethernet CAT5 compatible
• EMI Standards: Fully shielded for electromagnetic compatibility
• Quality Standards: German engineering and manufacturing (MOSA series)
• Performance Standards: Designed for harsh industrial Ethernet communication conditions

Benefits

• IDC technology eliminates wire stripping and reduces installation time by up to 50%
• D-coded 4-pole socket configuration ensures proper Ethernet CAT5 compatibility
• Integrated shielding provides superior EMI protection for Ethernet signal integrity
• No specialized tools required for IDC termination
• Wire cross-section range optimized for standard Ethernet cables
• Field-wireable configuration eliminates need for pre-assembled Ethernet female cordsets
• Excellent resistance against chemicals, oils, lubricants, and aggressive media
• Robust plastic housing withstands demanding industrial environments
• IP67 protection ensures reliable performance in harsh environmental conditions
• Cost-effective solution for rapid field Ethernet socket termination requirements
• Easy field installation with IDC technology
• Superior Ethernet data reception performance with integrated shielding
• Wide operating temperature range from -40°C to +85°C
• MOSA series design ensures consistent quality and performance
• Reliable long-term performance for critical Ethernet communication applications

Downloads:

• Product Data Sheet
